SKF VIBRACON Circular M56X64 Anti Vibration Mount, Adjustable chocks
- RS Stock No.:
- 267-5234
- Mfr. Part No.:
- SM 56 E-CS
- Manufacturer:
- SKF
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR4,980.60
Units | Per Unit |
|---|---|
| 1 + | MYR4,980.60 |
- RS Stock No.:
- 267-5234
- Mfr. Part No.:
- SM 56 E-CS
- Manufacturer:
- SKF
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details

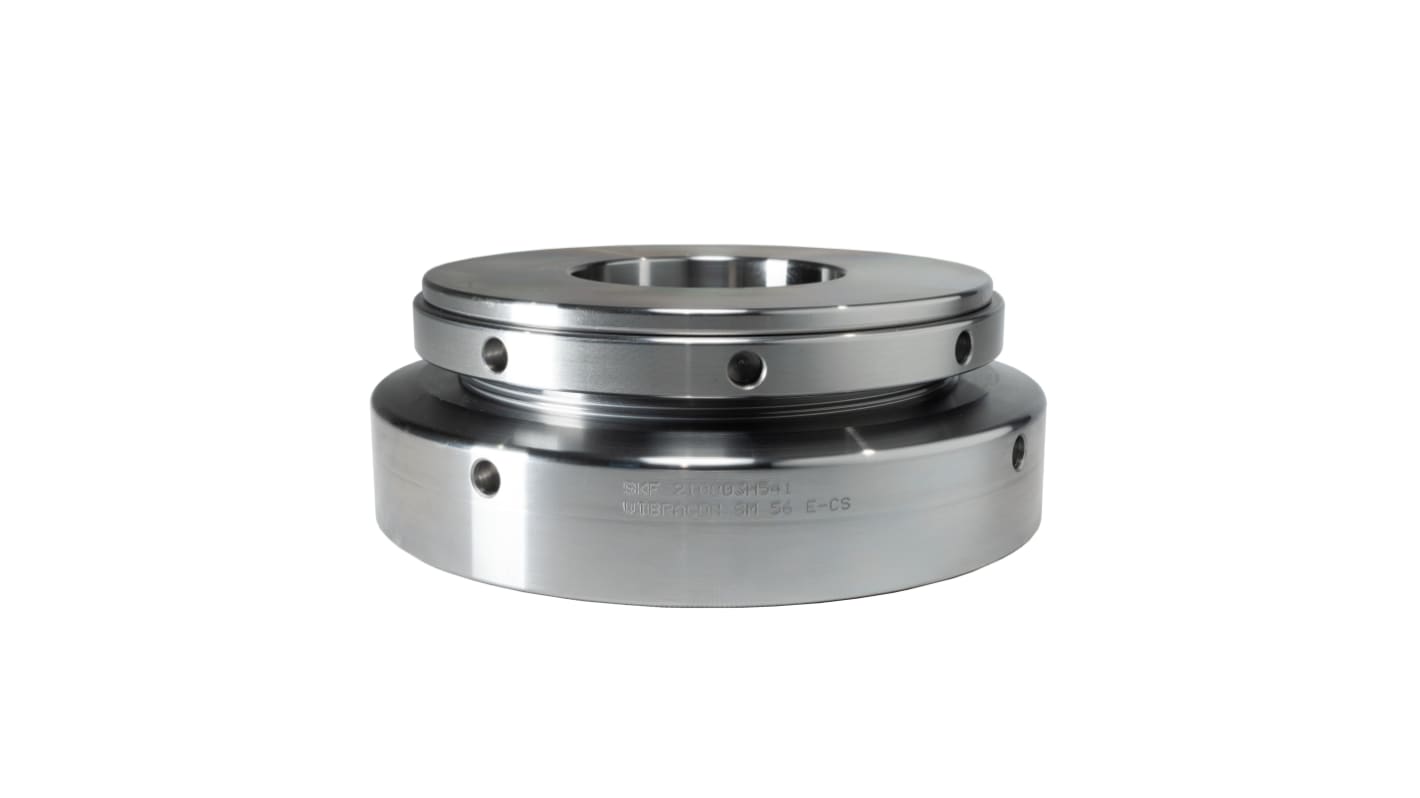

The SKF Vibracon carbon steel chocks (E-CS) are recommended for indoor use. They provide a cost-effective solution for standard applications while offering reliable performance in environments such as on the factory floor. Adding additives to the mating surfaces before and during installation offers initial protection and stops parts from seizing when they are adjusted.
Metallic grey color
260 kN machine load
An optimized load path through the product
Reduced chock height across the entire range
260 kN machine load
An optimized load path through the product
Reduced chock height across the entire range
Specifications
Attribute | Value |
|---|---|
| Anti Vibration Mount Type | Adjustable chocks |
| Thread Size | M56X64 |
| Diameter | 230mm |
| Trade Name | VIBRACON |
| Bore Diameter | 68mm |
| Bore Length | 94mm |
| Overall Height | 94mm |
| Static Load Capacity | 150000daN |
| Outer Diameter | 230mm |
| Material | Steel |
| Mounting Type | Bolt |
| Foot Shape | Circular |
