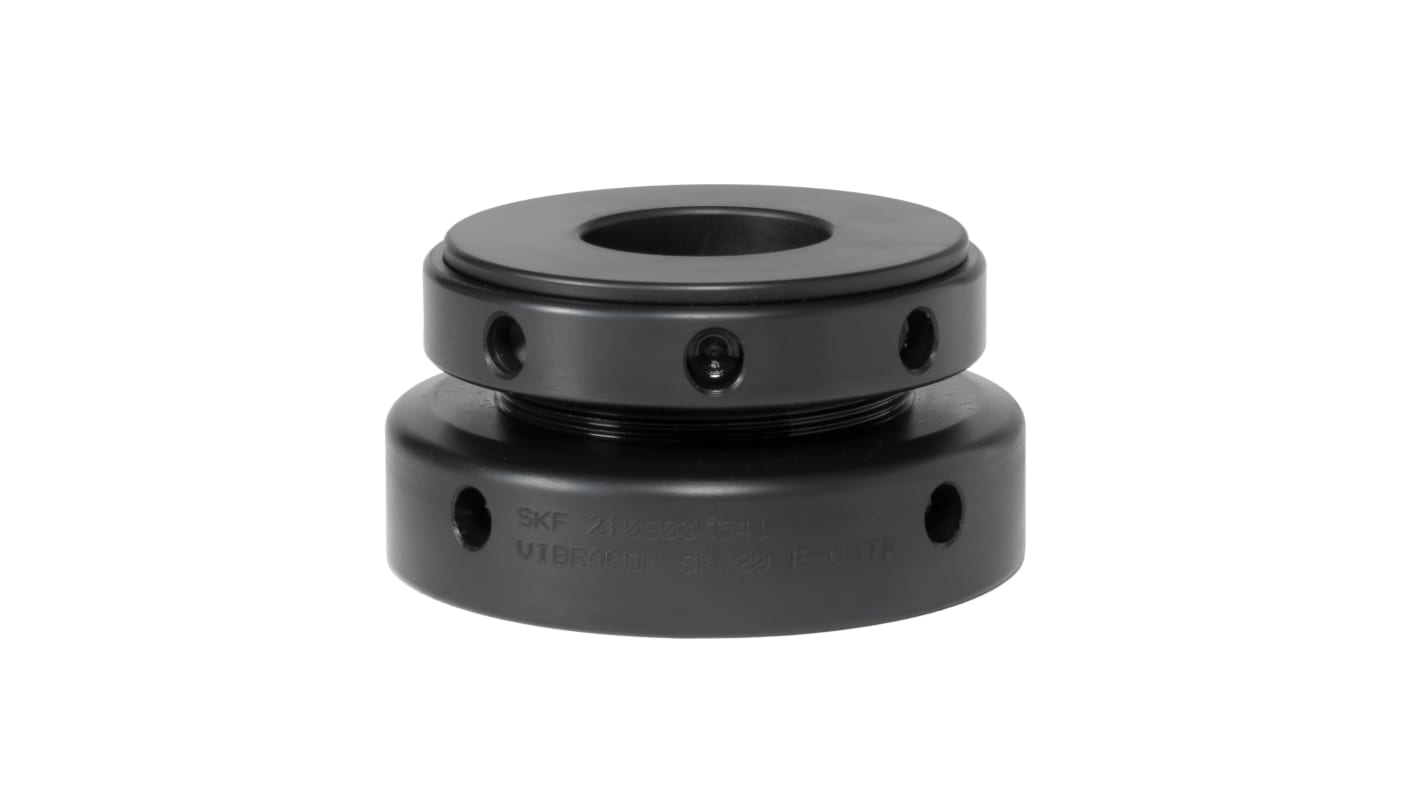

SKF VIBRACON Circular M20X24 Anti Vibration Mount, Adjustable chocks
- RS Stock No.:
- 267-5209
- Mfr. Part No.:
- SM 20 E-CSTR
- Manufacturer:
- SKF
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR928.15
| Units | Per Unit |
| 1 + | MYR928.15 |
- RS Stock No.:
- 267-5209
- Mfr. Part No.:
- SM 20 E-CSTR
- Manufacturer:
- SKF
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details
The SKF Vibracon surface treated chocks (E-CSTR) are often installed in demanding environments, including humid and salty climates where enhanced corrosion protection is recommended. Each part is individually surface treated, which helps to give the chocks a consistent quality and extended performance against corrosion.
Nitro carburized coating
Surface treated carbon steel material
Reduced chock height across the entire range
Surface treated carbon steel material
Reduced chock height across the entire range
Specifications
Attribute | Value |
|---|---|
| Anti Vibration Mount Type | Adjustable chocks |
| Thread Size | M20X24 |
| Diameter | 100mm |
| Trade Name | VIBRACON |
| Bore Diameter | 27mm |
| Bore Length | 54mm |
| Overall Height | 54mm |
| Static Load Capacity | 20000daN |
| Outer Diameter | 100mm |
| Material | Steel |
| Mounting Type | Bolt |
| Foot Shape | Circular |
