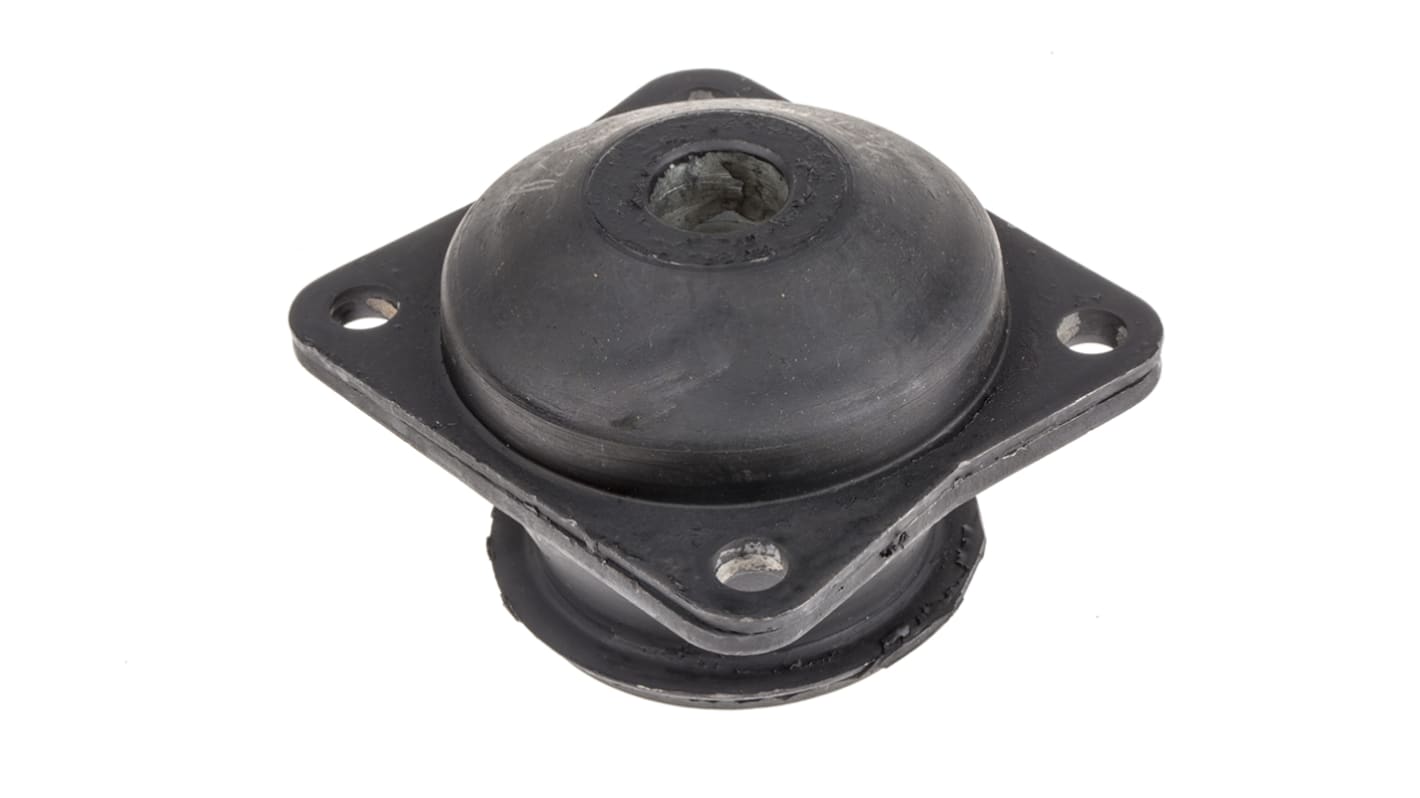

RS PRO Square M16 Anti Vibration Mount with 194kg Compression Load
- RS Stock No.:
- 171-2667
- Manufacturer:
- RS PRO
Subtotal (1 unit)**
MYR271.47
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 + | MYR271.47 |
**price indicative
- RS Stock No.:
- 171-2667
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Thread Size | M16 | |
Diameter | 75mm | |
Foot Height | 72.5mm | |
Overall Height | 74mm | |
Static Load Capacity | 194kg | |
Material | Natural Rubber | |
Shore Hardness | 35 Shore A | |
Metalwork | Zinc Plated Steel | |
Foot Shape | Square | |
Compression Load | 194kg | |
Maximum Operating Temperature | +100°C | |
Compression Deflection | 4.2mm | |
Series | KMC | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Thread Size M16 | ||
Diameter 75mm | ||
Foot Height 72.5mm | ||
Overall Height 74mm | ||
Static Load Capacity 194kg | ||
Material Natural Rubber | ||
Shore Hardness 35 Shore A | ||
Metalwork Zinc Plated Steel | ||
Foot Shape Square | ||
Compression Load 194kg | ||
Maximum Operating Temperature +100°C | ||
Compression Deflection 4.2mm | ||
Series KMC | ||
