Units	Per Unit	Per Pack**
2 - 24	MYR17.375	MYR34.75
26 - 128	MYR17.01	MYR34.02
130 +	MYR13.995	MYR27.99

Select all	Attribute	Value
	Brand	RS PRO
	Capacitance	68µF
	Voltage	400V dc
	Mounting Type	Radial, Through Hole
	Technology	Aluminium Electrolytic
	Dimensions	18 (Dia.) x 26mm
	Height	26mm
	Length	26mm
	Minimum Operating Temperature	-25°C
	Diameter	18mm
	Maximum Operating Temperature	105°C
	Lifetime	2000h
	Lead Pitch	7.5mm
	Series	RS
	Polarised	Polar
	Leakage Current	<=0.03 CV or 3 μA @ 1 min
	Ripple Current	350mA
	Tolerance	±20%
	Dissipation Factor	20%

	Select all
	Brand RS PRO
	Capacitance 68µF
	Voltage 400V dc
	Mounting Type Radial, Through Hole
	Technology Aluminium Electrolytic
	Dimensions 18 (Dia.) x 26mm
	Height 26mm
	Length 26mm
	Minimum Operating Temperature -25°C
	Diameter 18mm
	Maximum Operating Temperature 105°C
	Lifetime 2000h
	Lead Pitch 7.5mm
	Series RS
	Polarised Polar
	Leakage Current <=0.03 CV or 3 μA @ 1 min
	Ripple Current 350mA
	Tolerance ±20%
	Dissipation Factor 20%

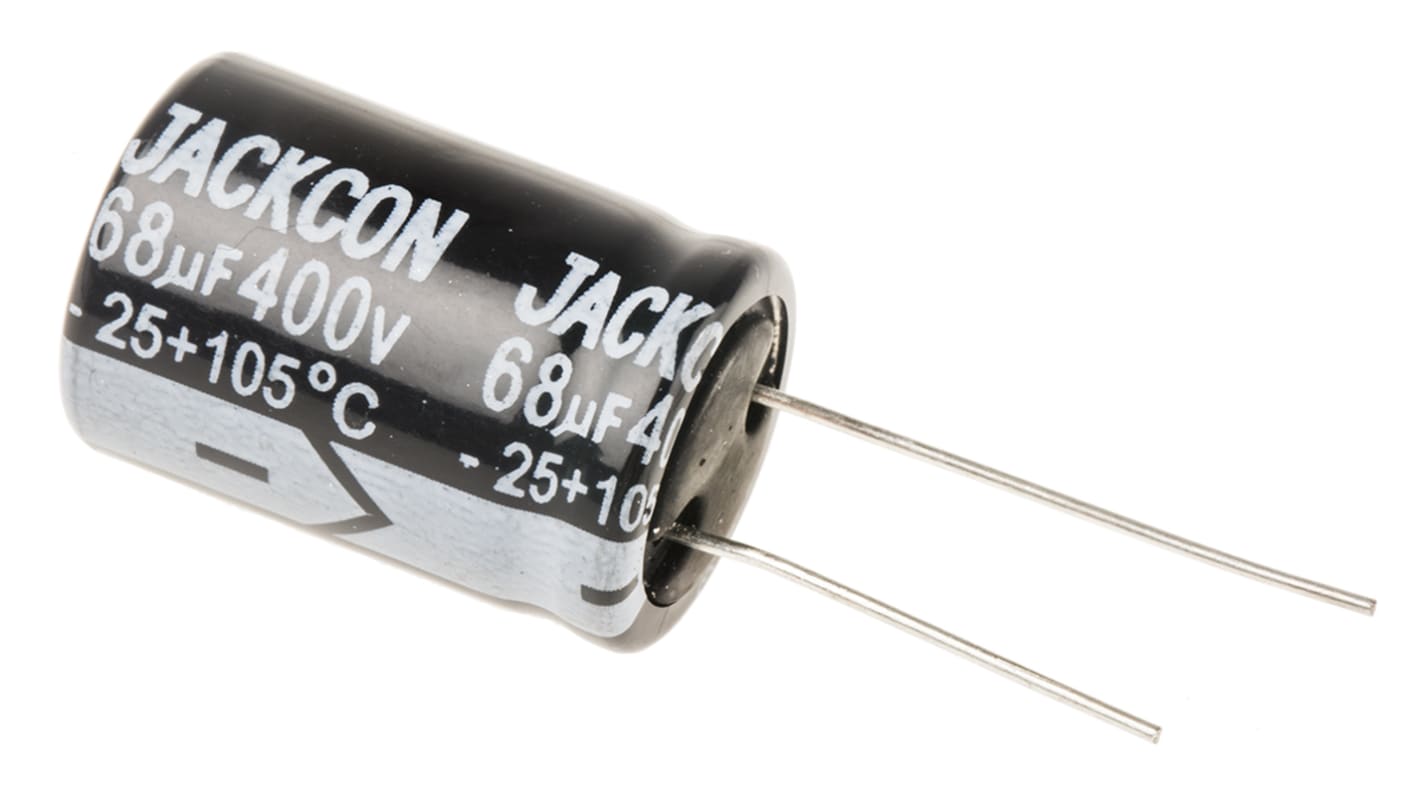

RS PRO 68μF Aluminium Electrolytic Capacitor 400V dc, Radial, Through Hole

FREE delivery for orders over MYR500.00

General Purpose Radial 400 to 450V
