Units	Per Unit	Per Pack**
25 - 100	MYR1.076	MYR26.90
125 - 600	MYR0.965	MYR24.125
625 +	MYR0.795	MYR19.875

Select all	Attribute	Value
	Brand	RS PRO
	Capacitance	330µF
	Voltage	35V dc
	Mounting Type	Radial, Through Hole
	Technology	Aluminium Electrolytic
	Dimensions	10 (Dia.) x 15mm
	Height	15mm
	Length	15mm
	Minimum Operating Temperature	-40°C
	Diameter	10mm
	Maximum Operating Temperature	105°C
	Lead Pitch	5mm
	Lifetime	2000h
	Tolerance	±20%
	Series	RS
	Polarised	Polar
	Ripple Current	420mA
	Leakage Current	<=0.01 CV or 3 μA @ 1 min
	Dissipation Factor	12%

	Select all
	Brand RS PRO
	Capacitance 330µF
	Voltage 35V dc
	Mounting Type Radial, Through Hole
	Technology Aluminium Electrolytic
	Dimensions 10 (Dia.) x 15mm
	Height 15mm
	Length 15mm
	Minimum Operating Temperature -40°C
	Diameter 10mm
	Maximum Operating Temperature 105°C
	Lead Pitch 5mm
	Lifetime 2000h
	Tolerance ±20%
	Series RS
	Polarised Polar
	Ripple Current 420mA
	Leakage Current <=0.01 CV or 3 μA @ 1 min
	Dissipation Factor 12%

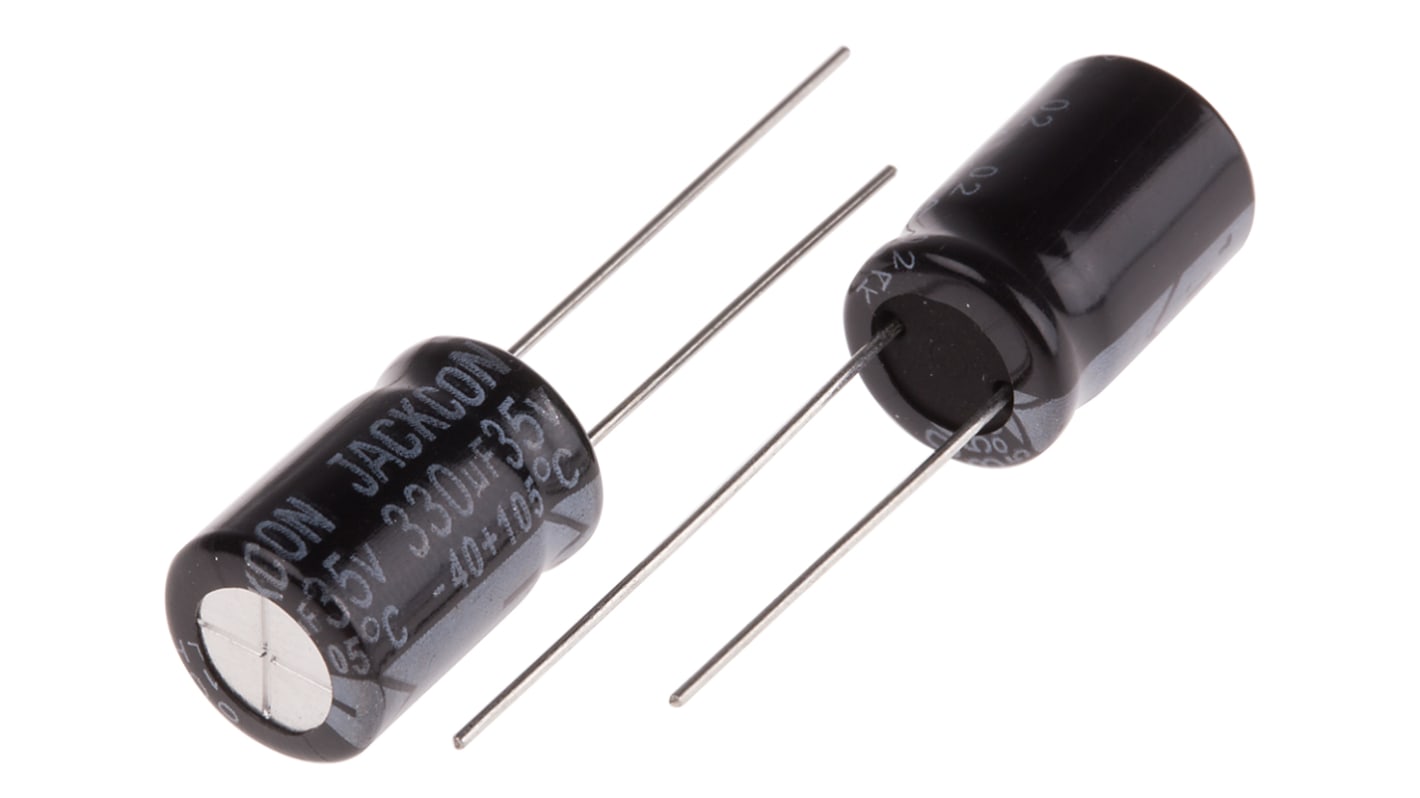

RS PRO 330μF Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole

FREE delivery for orders over MYR500.00

General Purpose Radial 25 to 50V
