Panasonic 470 μF Aluminium Electrolytic Capacitor 25 V dc, Radial, Through Hole Radial Lead
- RS Stock No.:
- 210-5730
- Mfr. Part No.:
- EEHAZK1E471B
- Manufacturer:
- Panasonic

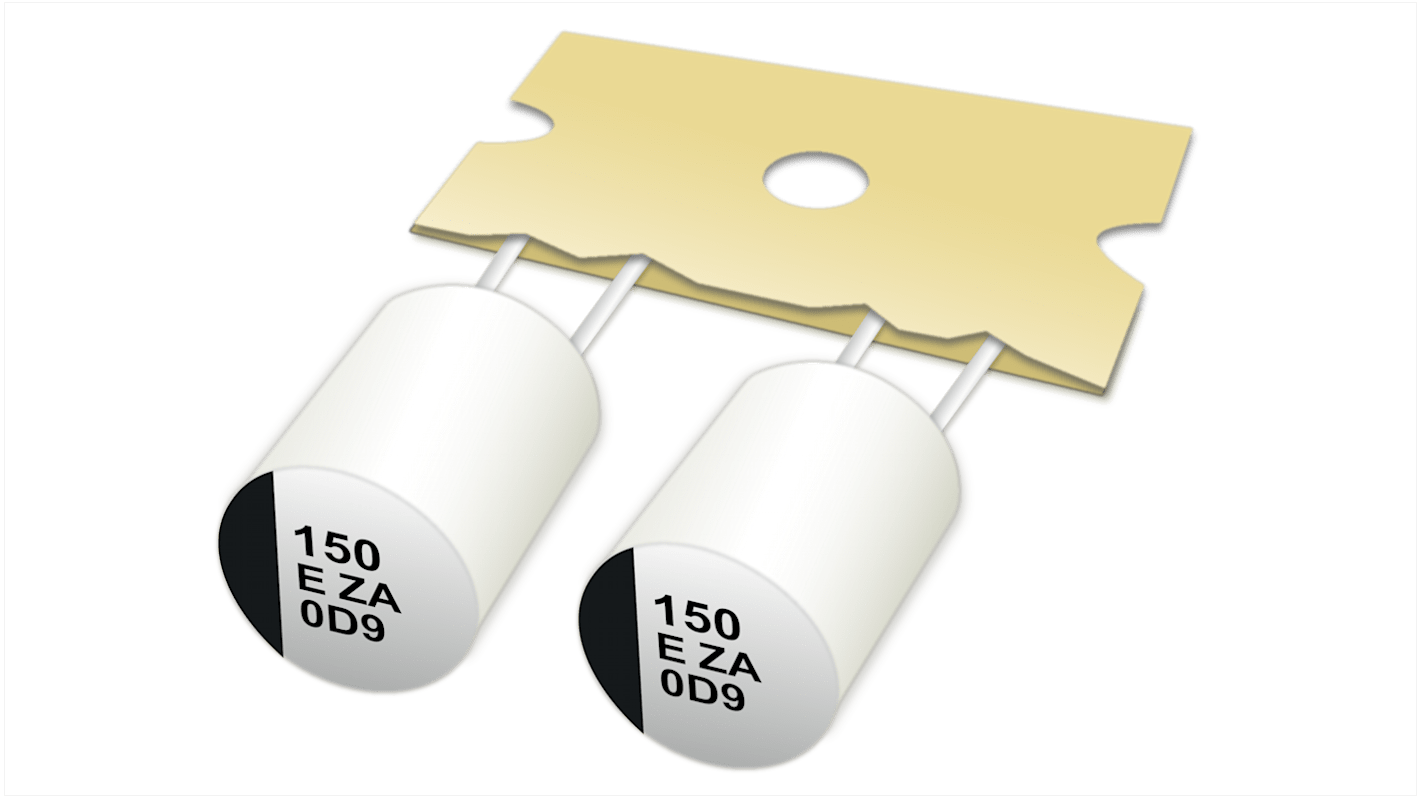

This image is representative of the product range
Bulk discount available
Subtotal (1 box of 500 units)*
MYR1,998.50
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 500 - 500 | MYR3.997 | MYR1,998.50 |
| 1000 - 1500 | MYR3.909 | MYR1,954.50 |
| 2000 + | MYR3.837 | MYR1,918.50 |
*price indicative
- RS Stock No.:
- 210-5730
- Mfr. Part No.:
- EEHAZK1E471B
- Manufacturer:
- Panasonic
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 470μF | |
| Product Type | Aluminium Electrolytic Capacitor | |
| Voltage | 25 V dc | |
| Construction | Radial Can | |
| Mount Type | Radial, Through Hole | |
| Packaging | Ammo Pack | |
| Polarity | Polar | |
| Length | 9.5mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 10 mm | |
| Termination Type | Radial Lead | |
| Capacitor Ripple Current | 2.8 A | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Lifetime | 4000 h | |
| Lead Pitch | 5mm | |
| Tolerance | ±20 % | |
| Series | ZK-A | |
| Equivalent Series Resistance ESR | 20mΩ | |
| Leakage Current | 117.5μA | |
| Automotive Standard | AEC-Q200 | |
| Dissipation Factor | 8% | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 470μF | ||
Product Type Aluminium Electrolytic Capacitor | ||
Voltage 25 V dc | ||
Construction Radial Can | ||
Mount Type Radial, Through Hole | ||
Packaging Ammo Pack | ||
Polarity Polar | ||
Length 9.5mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 10 mm | ||
Termination Type Radial Lead | ||
Capacitor Ripple Current 2.8 A | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Lifetime 4000 h | ||
Lead Pitch 5mm | ||
Tolerance ±20 % | ||
Series ZK-A | ||
Equivalent Series Resistance ESR 20mΩ | ||
Leakage Current 117.5μA | ||
Automotive Standard AEC-Q200 | ||
Dissipation Factor 8% | ||
- COO (Country of Origin):
- JP
The Panasonic ZK series conductive polymer hybrid aluminium electrolytic capacitor has ±20 % tolerance and used 25 V voltage. It has 470μF of capacitance which size code is G and has and ultra low ESR between 20 mΩ and 27 mΩ.
Endurance 4000 h at 125 ℃ (Large capacitance / High ripple current)
Taping products for automatic insertion
AEC-Q200 compliant
