Panasonic 330 μF Aluminium Electrolytic Capacitor 25 V dc, Radial, Through Hole - EEHAZA1E331B Radial Lead

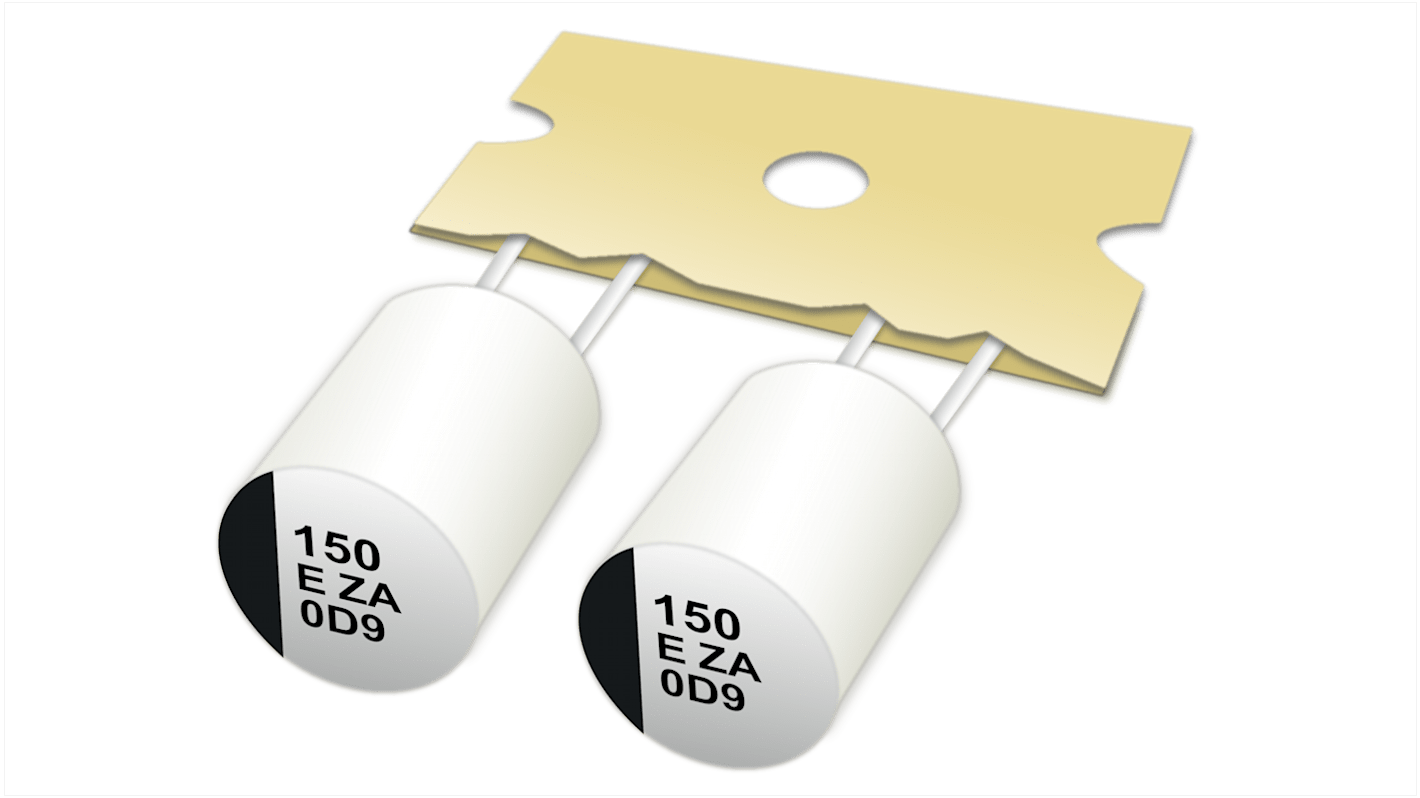

This image is representative of the product range

View all Aluminium Capacitors
Bulk discount available

Subtotal (1 tape of 2 units)*

MYR12.94

Add to Basket
Select or type quantity
Temporarily out of stock
  • 430 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
Per Tape*
2 - 124MYR6.47MYR12.94
126 - 248MYR6.25MYR12.50
250 +MYR5.94MYR11.88

*price indicative

Packaging Options:
RS Stock No.:
210-5617
Mfr. Part No.:
EEHAZA1E331B
Manufacturer:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Capacitance

330μF

Product Type

Aluminium Electrolytic Capacitor

Voltage

25 V dc

Mount Type

Radial, Through Hole

Construction

Radial Can

Packaging

Bag

Polarity

Polar

Length

9.5mm

Minimum Operating Temperature

-55°C

Diameter

10 mm

Pin Count

2

Capacitor Ripple Current

2.5 A

Termination Type

Radial Lead

Maximum Operating Temperature

105°C

Lead Pitch

5mm

Standards/Approvals

RoHS

Lifetime

2000 h (Load), 10000 h (Endurance)

Series

ZA-A

Automotive Standard

AEC-Q200

Equivalent Series Resistance ESR

20mΩ

Tolerance

±20 %

Dissipation Factor

8%

COO (Country of Origin):
JP
The Panasonic ZA series conductive polymer hybrid aluminium electrolytic capacitor has ±20 % tolerance and used 25 V voltage. It has 330μF of capacitance which size code is G and has ultra low ESR between 20 mΩ and 45 mΩ.

Endurance 10000 h at 105 ℃ (105 ℃ standard product)

Taping product for automatic insertion

AEC-Q200 compliant
