Units	Per Unit	Per Bag**
100 - 100	MYR7.298	MYR729.80
200 - 900	MYR7.186	MYR718.60
1000 +	MYR5.914	MYR591.40

Select all	Attribute	Value
	Brand	RS PRO
	Capacitance	100µF
	Voltage	400V dc
	Mounting Type	Radial, Through Hole
	Technology	Aluminium Electrolytic
	Dimensions	18 (Dia.) x 31mm
	Height	31mm
	Length	31mm
	Minimum Operating Temperature	-25°C
	Diameter	18mm
	Maximum Operating Temperature	105°C
	Lead Pitch	7.5mm
	Lifetime	2000h
	Tolerance	±20%
	Polarised	Polar
	Ripple Current	435mA
	Series	RS
	Leakage Current	<lt/>=0.03 CV or 3 μA @ 1 min
	Dissipation Factor	20%

	Select all
	Brand RS PRO
	Capacitance 100µF
	Voltage 400V dc
	Mounting Type Radial, Through Hole
	Technology Aluminium Electrolytic
	Dimensions 18 (Dia.) x 31mm
	Height 31mm
	Length 31mm
	Minimum Operating Temperature -25°C
	Diameter 18mm
	Maximum Operating Temperature 105°C
	Lead Pitch 7.5mm
	Lifetime 2000h
	Tolerance ±20%
	Polarised Polar
	Ripple Current 435mA
	Series RS
	Leakage Current <lt/>=0.03 CV or 3 μA @ 1 min
	Dissipation Factor 20%

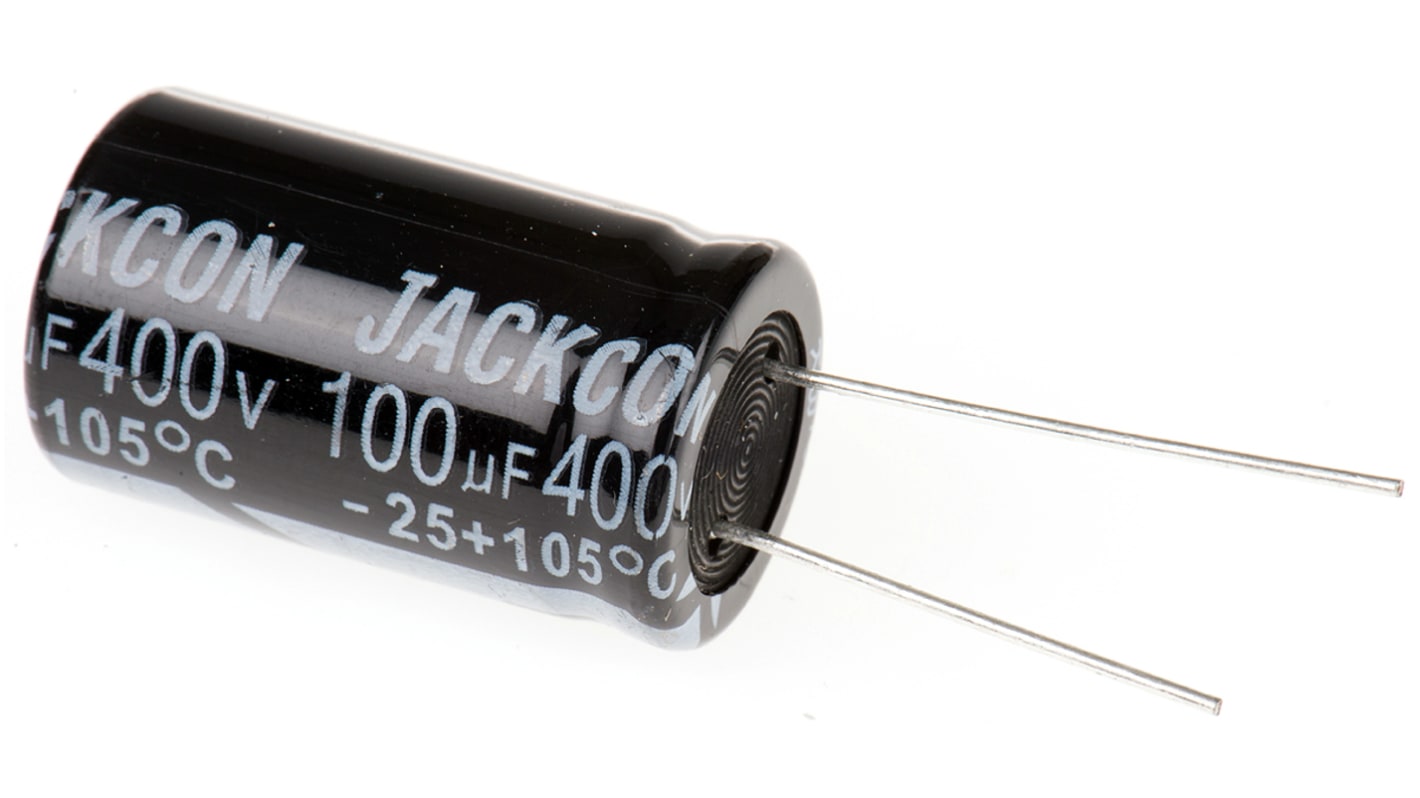

RS PRO 100μF Aluminium Electrolytic Capacitor 400V dc, Radial, Through Hole

FREE delivery for orders over MYR500.00

General Purpose Radial 400 to 450V
