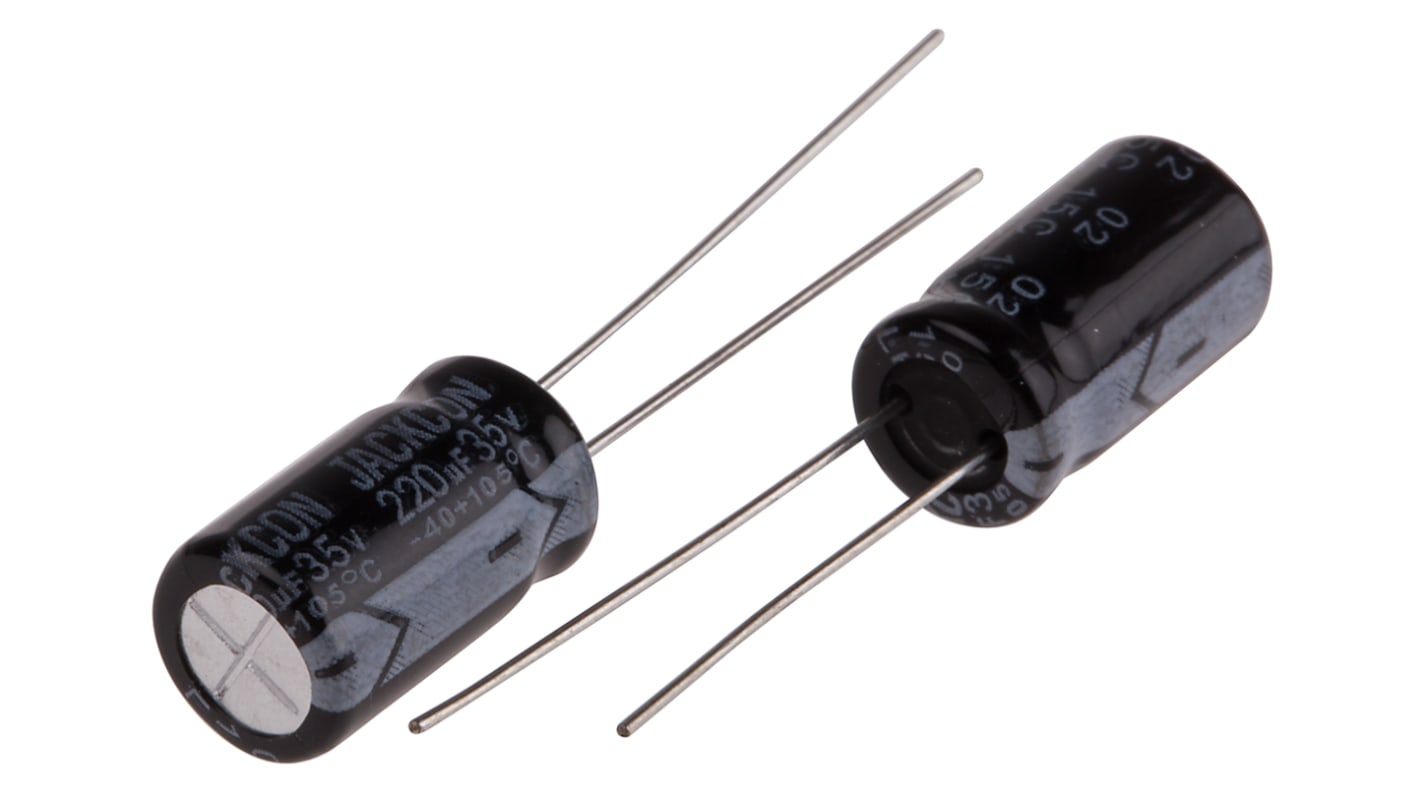

RS PRO 220μF Aluminium Electrolytic Capacitor 35V dc, Radial, Through Hole
- RS Stock No.:
- 170-1218
- Manufacturer:
- RS PRO
Subtotal (1 bag of 1000 units)**
MYR608.00
2000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
---|---|---|
1000 + | MYR0.608 | MYR608.00 |
**price indicative
- RS Stock No.:
- 170-1218
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Capacitance | 220µF | |
Voltage | 35V dc | |
Mounting Type | Radial, Through Hole | |
Technology | Aluminium Electrolytic | |
Dimensions | 8 (Dia.) x 14mm | |
Height | 14mm | |
Length | 14mm | |
Minimum Operating Temperature | -40°C | |
Diameter | 8mm | |
Maximum Operating Temperature | 105°C | |
Lifetime | 2000h | |
Lead Pitch | 3.5mm | |
Tolerance | ±20% | |
Polarised | Polar | |
Leakage Current | <=0.01 CV or 3 μA @ 1 min | |
Series | RS | |
Ripple Current | 325mA | |
Dissipation Factor | 12% | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Capacitance 220µF | ||
Voltage 35V dc | ||
Mounting Type Radial, Through Hole | ||
Technology Aluminium Electrolytic | ||
Dimensions 8 (Dia.) x 14mm | ||
Height 14mm | ||
Length 14mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 8mm | ||
Maximum Operating Temperature 105°C | ||
Lifetime 2000h | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Polarised Polar | ||
Leakage Current <=0.01 CV or 3 μA @ 1 min | ||
Series RS | ||
Ripple Current 325mA | ||
Dissipation Factor 12% | ||
