CHEMI-CON 270μF Aluminium Electrolytic Capacitor 450V dc, Snap-In - ELXS451VSN271MQ45S
- RS Stock No.:
- 170-0687
- Mfr. Part No.:
- ELXS451VSN271MQ45S
- Manufacturer:
- CHEMI-CON
Temporarily out of stock - back order for despatch 14/06/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Box of 200)
MYR27.332
| Units | Per Unit | Per Box* |
| 200 + | MYR27.332 | MYR5,466.40 |
| *price indicative | ||
- RS Stock No.:
- 170-0687
- Mfr. Part No.:
- ELXS451VSN271MQ45S
- Manufacturer:
- CHEMI-CON
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

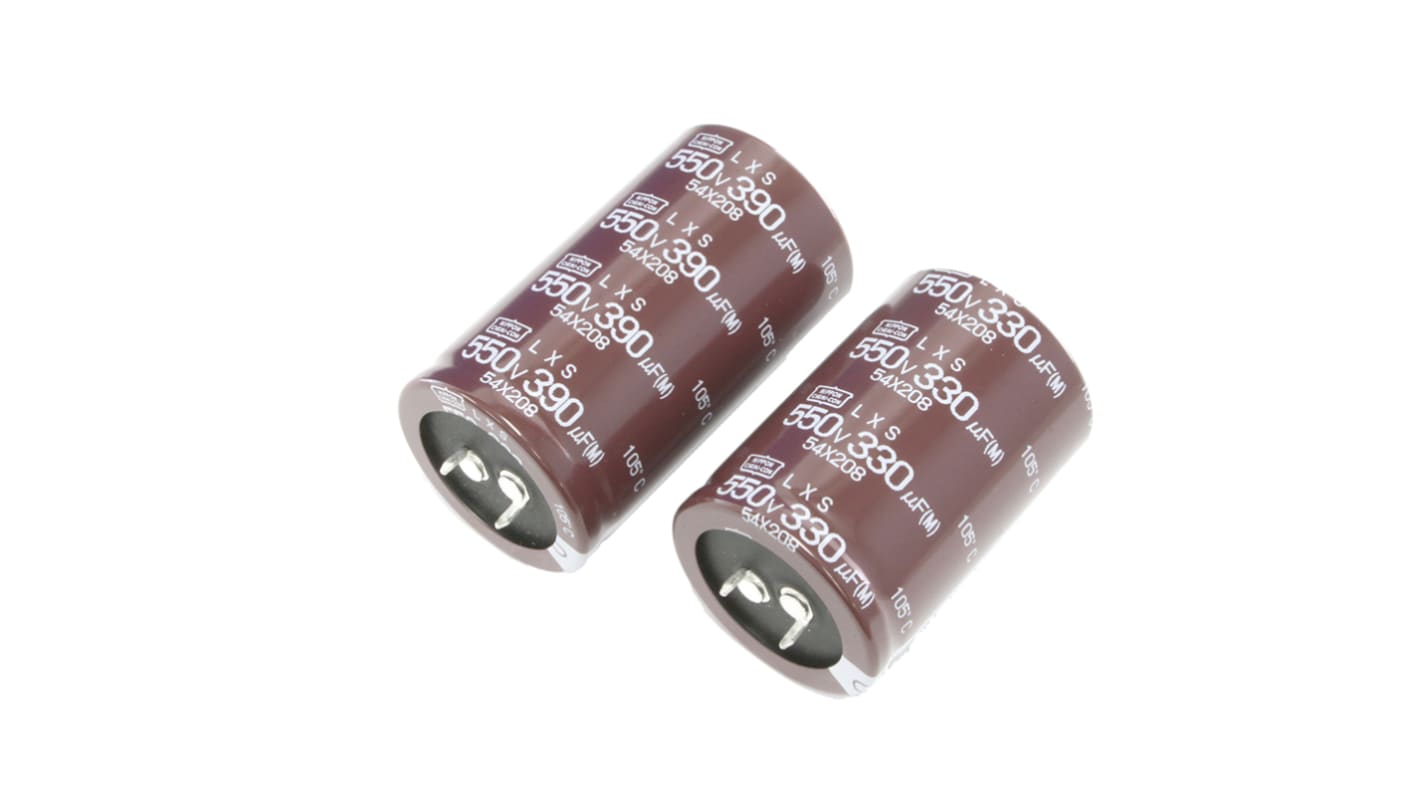

Nippon Chemi-Con Al Snap-in Capacitors, LXS Series
Long Life Large Capacitance Aluminium Electrolytic Capacitors, LXS Series
Endurance with Ripple Current: 5000 hours at 105℃
Rated voltage range: 160 V to 500 V
Downsized from LXQ series
Non-solvent resistant type
Ideal for Solar Power Generation
Rated voltage range: 160 V to 500 V
Downsized from LXQ series
Non-solvent resistant type
Ideal for Solar Power Generation
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 270µF |
| Voltage | 450V dc |
| Mounting Type | Snap-In |
| Technology | Aluminium Electrolytic |
| Dimensions | 25.4 (Dia.) x 45mm |
| Length | 45mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 25.4mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Lead Pitch | 10mm |
| Series | LXS |
| Tolerance | ±20% |
| Leakage Current | <=3√CV μA @ 5 min |
| Ripple Current | 1.36Arms |
| Dissipation Factor | 0.2% |
