Units	Per Unit	Per Reel**
500 - 500	MYR1.786	MYR893.00
1000 - 1500	MYR1.758	MYR879.00
2000 +	MYR1.724	MYR862.00

Select all	Attribute	Value
	Brand	Panasonic
	Capacitance	470µF
	Voltage	25V dc
	Mounting Type	Surface Mount
	Technology	Aluminium Electrolytic
	Dimensions	8 (Dia.) x 10.2mm
	Height	10.2mm
	Minimum Operating Temperature	-55°C
	Diameter	8mm
	Maximum Operating Temperature	+105°C
	Lifetime	2000h
	Lead Pitch	3.1mm
	Polarised	Polar
	Equivalent Series Resistance	80mΩ
	Series	FT SMD
	Leakage Current	117.5 μA
	Ripple Current	850mA
	Tolerance	±20%
	Automotive Standard	AEC-Q200

	Select all
	Brand Panasonic
	Capacitance 470µF
	Voltage 25V dc
	Mounting Type Surface Mount
	Technology Aluminium Electrolytic
	Dimensions 8 (Dia.) x 10.2mm
	Height 10.2mm
	Minimum Operating Temperature -55°C
	Diameter 8mm
	Maximum Operating Temperature +105°C
	Lifetime 2000h
	Lead Pitch 3.1mm
	Polarised Polar
	Equivalent Series Resistance 80mΩ
	Series FT SMD
	Leakage Current 117.5 μA
	Ripple Current 850mA
	Tolerance ±20%
	Automotive Standard AEC-Q200

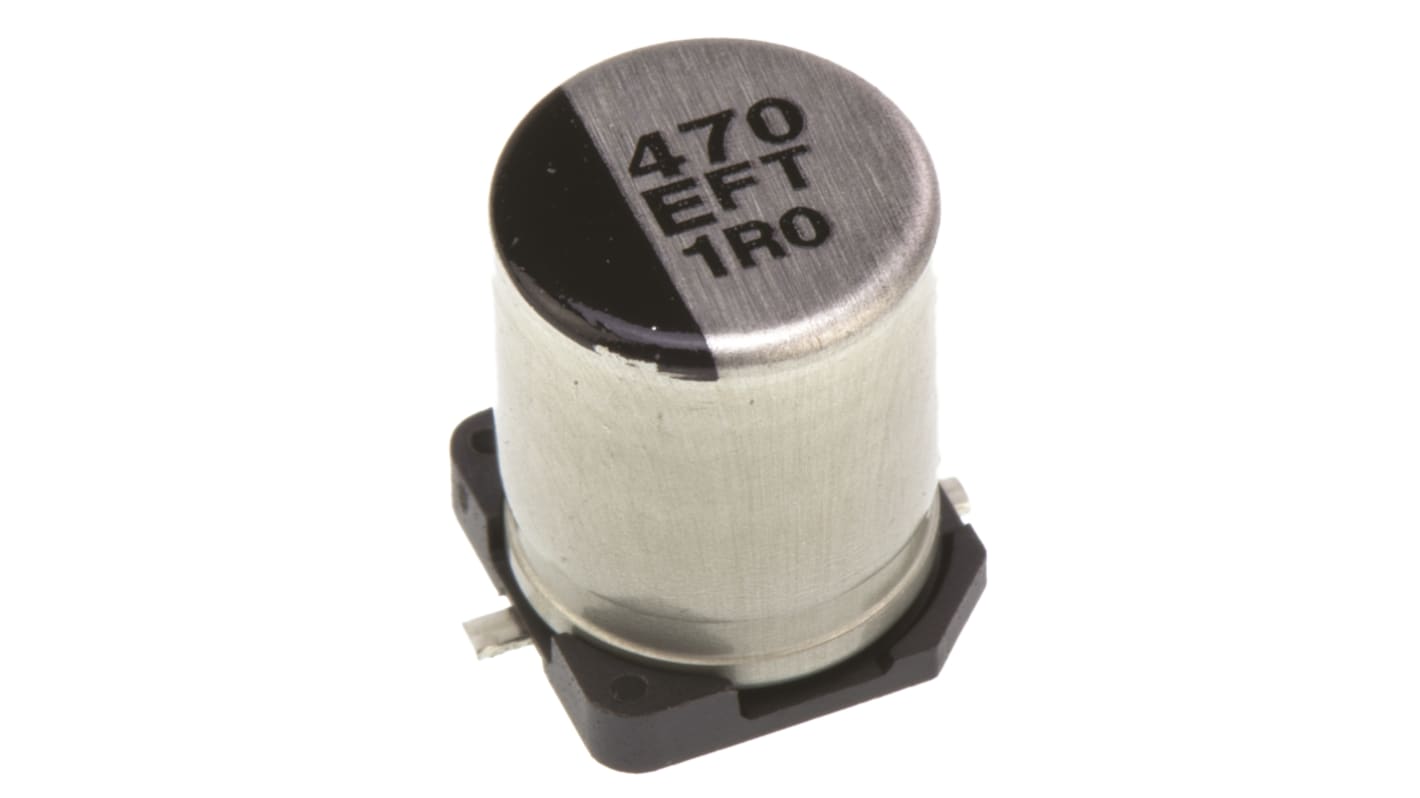

Panasonic 470μF Aluminium Electrolytic Capacitor 25V dc, Surface Mount - EEEFT1E471AP

FREE delivery for orders over MYR500.00

Panasonic Series FT Aluminium Electrolytic Capacitor, 470μF Capacitance, 25V DC Voltage - EEEFT1E471AP

Features & Benefits

Applications

What is the significance of the low ESR in this component?

What temperatures can this component operate under without failure?

How does the polarised design affect installation?
