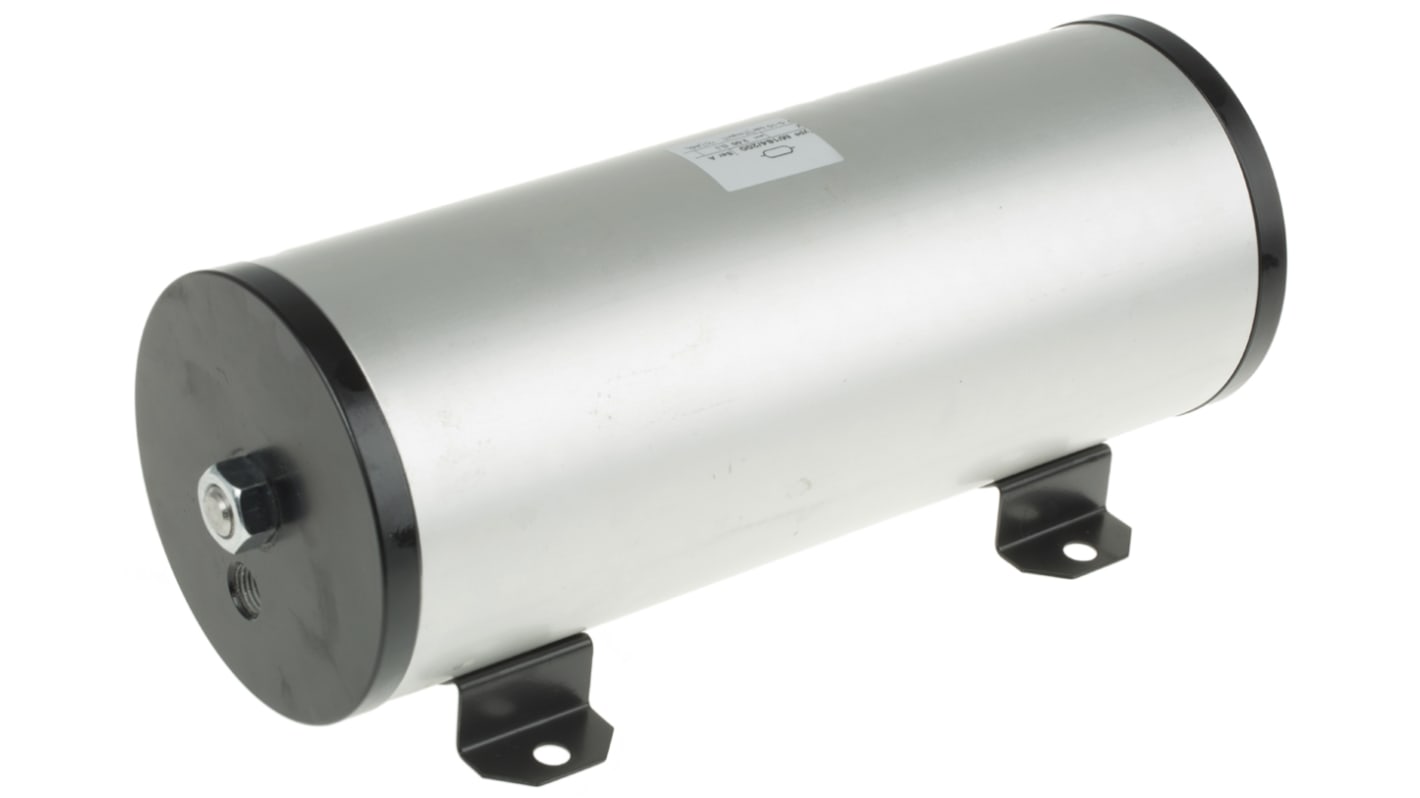

Norgren Air Reservoir 2 l, G 1/4, M/164 Series, 10bar

When your pneumatic equipment is under pressure, help it get some air with this reservoir from IMI Norgren. The unit stores compressed air supplied from the control valve, serving as an emergency source to keep things running if the airflow drops. Thanks to a reservoir bore of 102mm, you'll have enough room to house up to two litres of air. To build a complete circuit that keeps your system performing at its best, you can combine this device with a flow regulator and pressure-sensitive valve.

• Threaded port connection eliminates the need for complex installation tools
• Circuit has repeat accuracy rating of ±5% for reliable performance
• Wide operating temperature range between -20°C and +80°C to withstand harsh environments

• Food and beverage production
• Agricultural equipment
• HVAC systems
• Hydraulic machines

This air resoirvoir has a broad operating pressure range between 1 and 10 bar making it suitable for low-pressure and medium-pressure applications.

Connect it to the inlet port of your valve so that it can receive air from the flow regulator.
