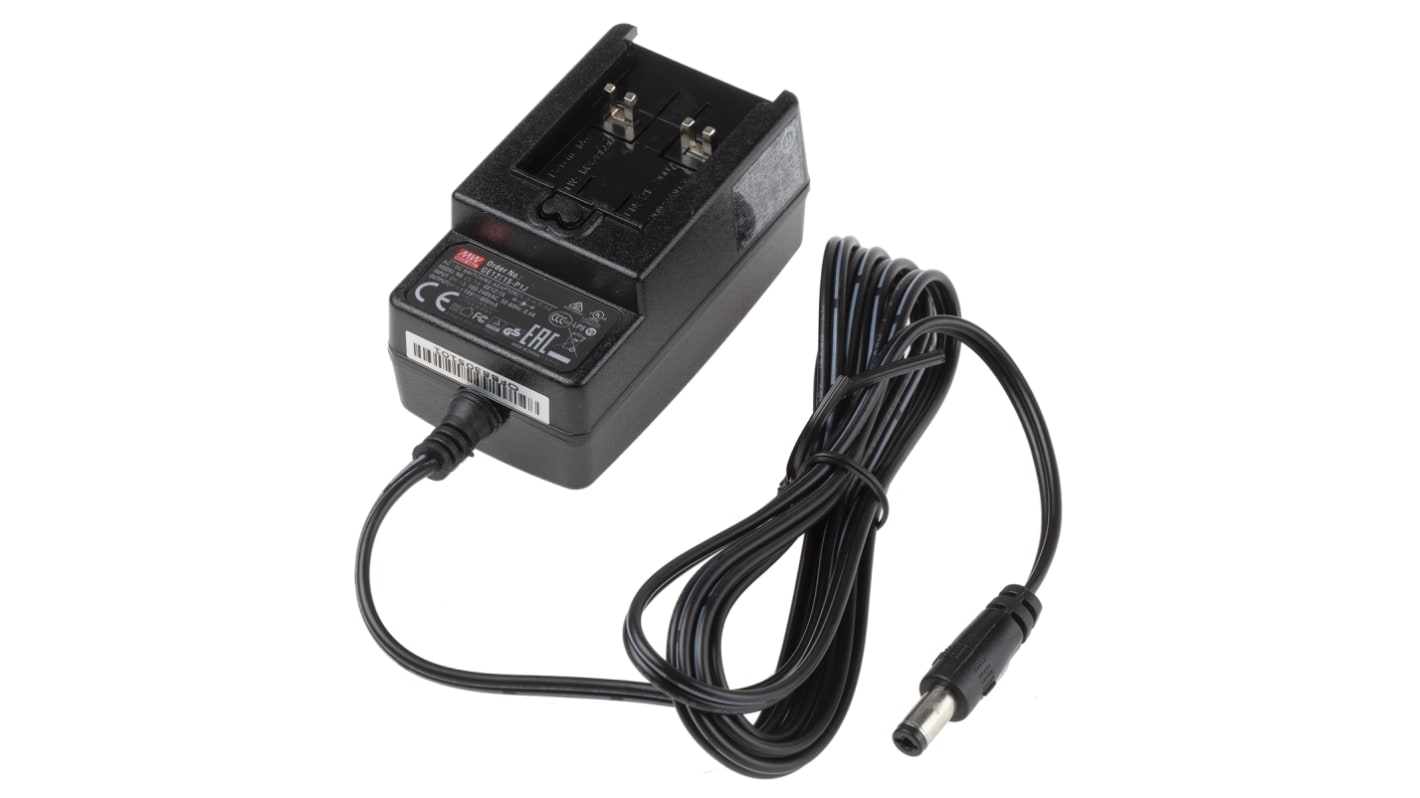

MEAN WELL 12W Plug-In AC/DC Adapter 15V dc Output, 800mA Output

RS Stock No.:: 706-6460
Mfr. Part No.:: GE12I15-P1J
Manufacturer:: MEAN WELL

MEAN WELL 12W Plug-In AC/DC Adapter 15V dc Output, 800mA Output

Temporarily out of stock - back order for despatch 07/08/2024, delivery within 4 working days from despatch date

Added

Price Each

MYR106.05

Units	Per Unit
1 - 9	MYR106.05
10 - 49	MYR103.94
50 +	MYR101.86

RS Stock No.:: 706-6460
Mfr. Part No.:: GE12I15-P1J
Manufacturer:: MEAN WELL

Technical data sheets

Legislation and Compliance

Product Details

ErP Plug-In Travel Power Supply, Energy Saving, 10W to 24W

Energy saving power supplies
ErP level VI
No load power consumption< 0.3W
Meets EISA 2007 (Energy Independence and Security Act) for 5∼24V
Class II power (without earth pin)
Overload, overvoltage and short circuit protection
LED power on indicator
Compatible with UK (1783436), Euro (1783437), US (1783438), Australian (1783435) and mixed plugs (1783439) (Plugs Not Included)
Output lead fitted with a centre positive 2.1mm jack plug
EMC compliance to FCC part 15, EN55022 class B, GB9254 class B
Harmonic compliance to EN 61000-3-2,3

Note

Conforms to Energy-related Product Directive 2009/125/EC.

Power derates above 30°C.
MTBF to MIL-HDBK-217F.

Standards

UL60950-1, CSA C22.2, TUV EN60950 -1, CCC GB4943

Approvals

TUV, CCC, UL recognised for Canada & US, C-Tick

Switch Mode - Mean Well

Specifications

Attribute	Value
Adapter Type	Plug-In Adapter
Plug Type	Australia/China, European Plug, UK, US/Japan
Output Voltage	15V dc
Input Voltage	100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
Output Current	800mA
Maximum Temperature	+50°C
Output Connector	2.1 x 5.5 x 11 mm Centre Positive
Input Connector	Universal Plug
Number of Outputs	1
Power Rating	12W
Cable Length	1.5m
MTBF	100000h
Standards Met	ErP Compliant
Width	40mm
Energy Efficiency Level	VI
Depth	38.8mm
Minimum Temperature	-10°C
Load Regulation	±3%
Length	70.7mm
Type	AC/DC Adapter
