- RS Stock No.:
- 377-7179
- Mfr. Part No.:
- CEL-22-LFeZVC65SG24E8
- Manufacturer:
- EOS
261 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR343.77
Units | Per Unit |
1 - 9 | MYR343.77 |
10 - 49 | MYR334.13 |
50 + | MYR320.39 |
- RS Stock No.:
- 377-7179
- Mfr. Part No.:
- CEL-22-LFeZVC65SG24E8
- Manufacturer:
- EOS
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

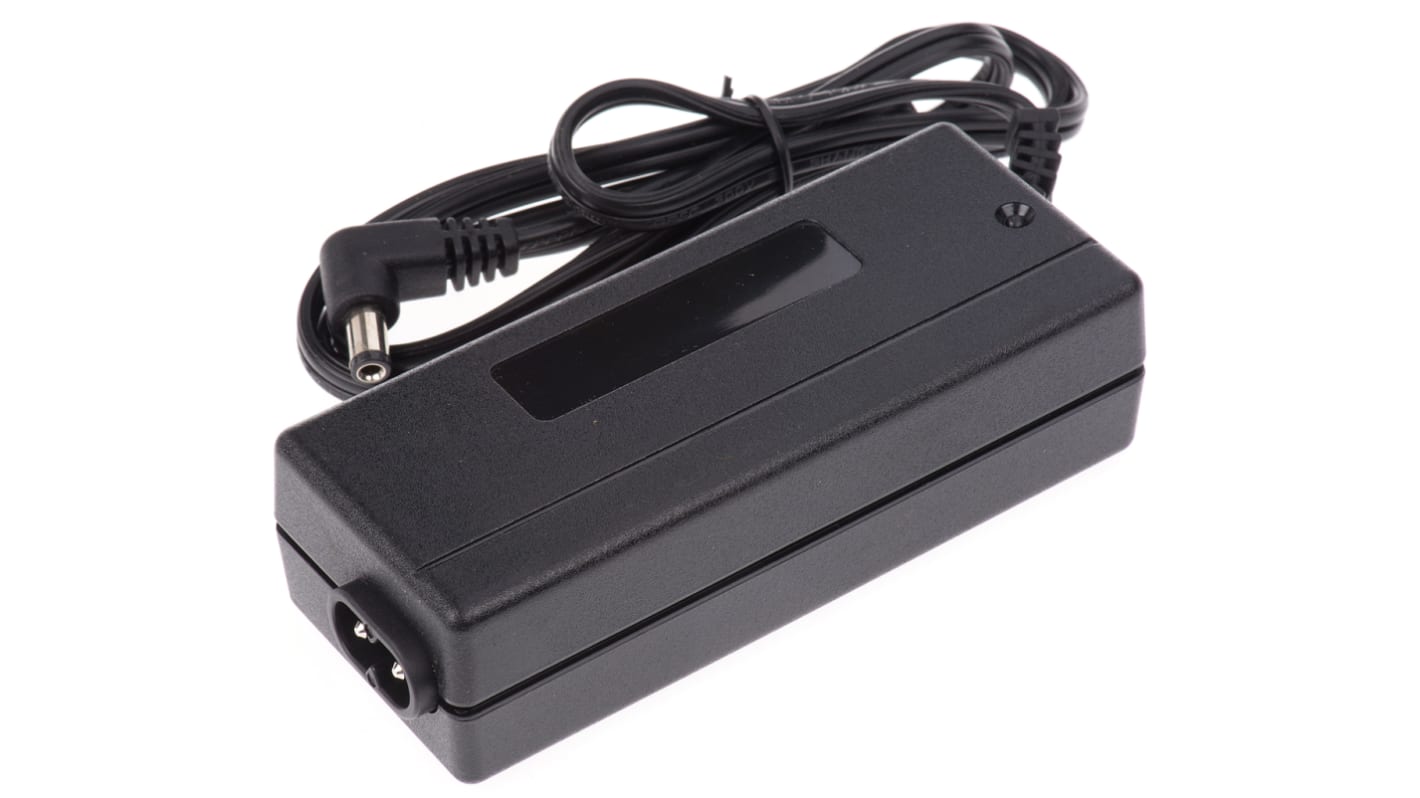

EOS Desktop Power Supply
The EOS ZVC series desktop power supply is the latest invention with a high-quality adapter and a voltage rating of 24VDC. It provides 70W of continuous output power in a high-quality, compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 132VAC/180VAC to 264VAC, its maximum input leakage current is less than 25μA. The power supply has IEC320 C8 input connector and 1m output lead with a right-angled 2.5mm power plug.
Note:
Non-compliant for industrial use only, not in the scope of the regulation (EC) No 125 / 2009. MTBF to MIL-HDBK-217F.
Note:
Non-compliant for industrial use only, not in the scope of the regulation (EC) No 125 / 2009. MTBF to MIL-HDBK-217F.
Features and Benefits
Output current is 2.70A
High efficiency
Fully regulated and protected output
Ultra miniature and lightweight design
High efficiency
Fully regulated and protected output
Ultra miniature and lightweight design
Applications
Netbook power supply
Notebook power supply
Notebook power supply
Certifications
VDE
UL approved
NORDICS
MITI
EN5022-B
CISPR22-B
FCC
Part 15 class B
EN50082-1
IEC60950
CSA C22.2 No.60950
EN60950,
UL1950 class 2 SELV
UL approved
NORDICS
MITI
EN5022-B
CISPR22-B
FCC
Part 15 class B
EN50082-1
IEC60950
CSA C22.2 No.60950
EN60950,
UL1950 class 2 SELV
Specifications
Attribute | Value |
---|---|
Adapter Type | Power Brick Adapter |
Output Voltage | 24V dc |
Input Voltage | 90 → 264V ac |
Output Current | 2.7A |
Maximum Temperature | +40°C |
Output Connector | 2.54 x 5.49 mm Centre Positive |
Input Connector | IEC 320-C8 |
Number of Outputs | 1 |
Cable Length | 1000mm |
MTBF | 100000h |
Efficiency | 88% |
Minimum Temperature | 0°C |
Depth | 30mm |
Energy Efficiency Level | III |
Line Regulation Range | ±0.5% |
Load Regulation | ±5% |
Width | 43.8mm |
Length | 107.2mm |
