Mascot 6W Plug-In AC/DC Adapter 9V dc Output, 666mA Output
- RS Stock No.:
- 224-3811
- Mfr. Part No.:
- 8511000166
- Manufacturer:
- Mascot
66 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR174.77
| Units | Per Unit |
| 1 - 9 | MYR174.77 |
| 10 - 49 | MYR168.68 |
| 50 + | MYR168.30 |
- RS Stock No.:
- 224-3811
- Mfr. Part No.:
- 8511000166
- Manufacturer:
- Mascot
Legislation and Compliance
- COO (Country of Origin):
- NO
Product Details
3-Pin 13A, Unregulated & Regulated
Plugs directly into a standard 3 pin 13A mains socket
230V ac ±10% 50//60 Hz input
Regulated or unregulated output options
Regulated models have a continuously adjustable output voltage
Model 8713 (stk no. 224-3849) is medically approved to EN60601
Model 8717 (stk no. 363-5104) features a 'switch mode' secondary
1.7m (approx.) lead fitted with a 2.1mm power plug (centre + outside common)
Operating temperature -20 to +35°C
230V ac ±10% 50//60 Hz input
Regulated or unregulated output options
Regulated models have a continuously adjustable output voltage
Model 8713 (stk no. 224-3849) is medically approved to EN60601
Model 8717 (stk no. 363-5104) features a 'switch mode' secondary
1.7m (approx.) lead fitted with a 2.1mm power plug (centre + outside common)
Operating temperature -20 to +35°C
Note
For Industrial Use Only, not in scope of Regulation 2009/125
Unregulated adaptors will supply higher output voltages than specified when used at less than maximum load.
Unregulated adaptors will supply higher output voltages than specified when used at less than maximum load.
Note

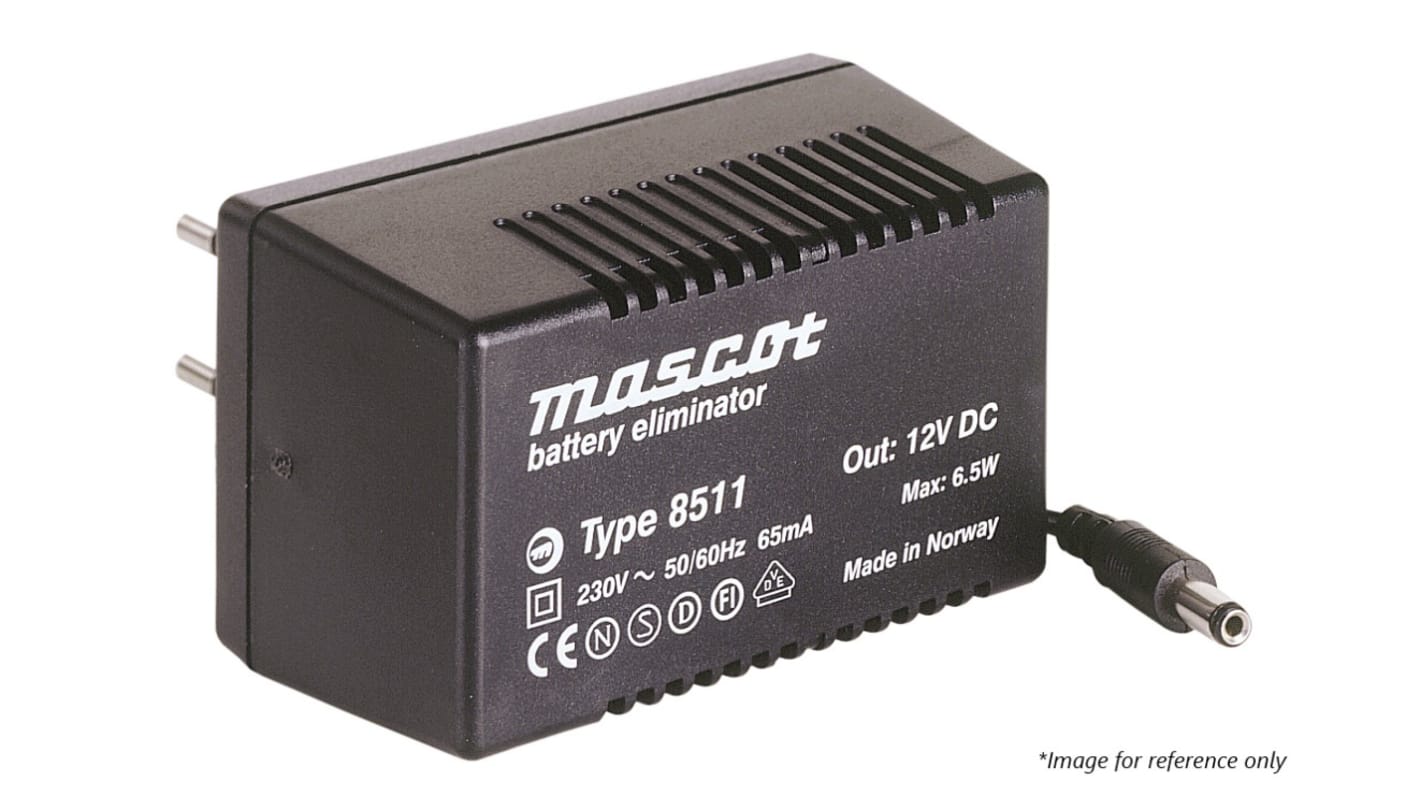

Image is for illustrative purposes only, please refer to technical specification
Approvals
7777
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type G |
| Output Voltage | 9V dc |
| Input Voltage | 230V ac |
| Output Current | 666mA |
| Maximum Temperature | +35°C |
| Output Connector | Interchangeable |
| Input Connector | UK Plug |
| Number of Outputs | 1 |
| Power Rating | 6W |
| Cable Length | 1.7m |
| Length | 95mm |
| Type | AC/DC Adapter |
| Minimum Temperature | -20°C |
| Depth | 57mm |
| Width | 51mm |
