Cable Sleeves

Cable sleeves are vital components for protecting, organising, and enhancing electrical wiring systems across diverse industrial settings. They effectively shield cables from a range of environmental and mechanical hazards, thereby ensuring operational reliability and significantly extending cable lifespan. Proper selection based on application requirements is key for maintaining system integrity and safety.

What Is a Cable Sleeve?

A cable sleeve is a tubular protective covering designed to encase and manage electrical cables or wire bundles. It primarily guards against hazards such as abrasion, chemical exposure, and extreme temperatures, while also contributing to organised wire harnesses which simplify maintenance and can improve airflow for cooling in dense installations. Sleeves come in various forms such as flexible, rigid, expandable, or self-closing. They are manufactured from materials chosen for properties such as high dielectric strength, flame retardancy, chemical resistance, and EMI shielding.

What Are the Benefits of Using Cable Sleeves?

Utilising cable sleeves provides significant and multifaceted industrial advantages:

Protection: Protects cables against physical damage like abrasion, impact, and cuts, crucial in dynamic or harsh environments.
Environmental Resistance: Shields cables effectively from moisture, oils, solvents, and other chemicals, preventing premature degradation.
Thermal Management: Provides thermal insulation or heat resistance, protecting cables from external heat sources or containing internal heat.
Organisation: Consolidates multiple wires into neat bundles, simplifying tracing, maintenance, and improving system aesthetics.
Safety: Minimises electrical risks like short circuits, reduces tripping hazards, and often adds flame retardant properties.
Extended Lifespan: Substantially prolongs cable operational life by mitigating various forms of wear and damage.
EMI Shielding: Specialised conductive sleeves can offer vital protection against electromagnetic interference, preserving signal integrity.

What Are the Types of Cable Sleeving?

Key types of cable sleeving are engineered to meet a wide array of diverse industrial needs and challenges:

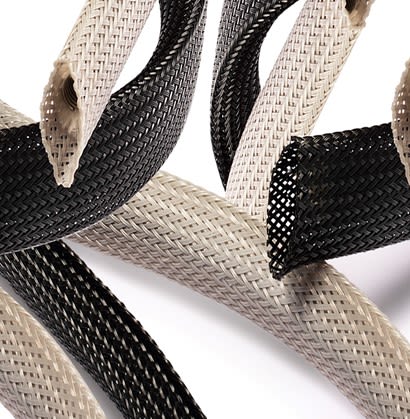

Braided Sleeving: Expandable types (e.g., PET, Nylon) offer excellent flexibility and high abrasion resistance for dynamic applications. Self-closing versions allow easy installation over existing cables without disconnecting connectors.
Heat-Shrink Tubing: Materials like polyolefin or PTFE shrink when heated to form a tight, conformal fit, providing excellent insulation, sealing, and strain relief.
Spiral Wrap Sleeving: Typically made from polyethylene or nylon, this flexible wrap allows easy cable breakouts and is ideal for organising wires in control panels or robotic arms.
Slit/Split Sleeving: Often corrugated for flexibility, these feature a longitudinal slit for easy side-entry installation over pre-terminated cables or existing harnesses, providing good impact protection.
Fibreglass Sleeving: Offers exceptional high-temperature resistance (often exceeding 200°C) and is frequently coated with silicone or acrylic to enhance dielectric strength and fluid resistance.
Nylon Sleeving: Known for its outstanding abrasion and chemical resistance, particularly to oils and fuels, making it suitable for demanding automotive and industrial applications.

How to Choose the Right Cable Sleeve for Your Needs

Selecting the correct sleeve involves a careful evaluation of application-specific requirements to ensure optimal performance and longevity.

Key Selection Factors

These are the key selection factors for cable sleeves:

Cable Diameter: Ensure the sleeve's internal diameter correctly accommodates the cable bundle, considering the sleeve's expansion or shrink ratios for a secure fit.
Operating Environment: Factor in conditions like indoor/outdoor use (requiring UV resistance), exposure to moisture, oils, or specific chemicals (e.g., fluoropolymers for aggressive substances).
Flexibility: Applications with movement or complex routing demand highly flexible types like braided sleeving or spiral wrap.
Temperature Exposure: Match the sleeve material (e.g., fibreglass for very high temperatures, standard polyolefin for moderate heat) to the continuous and peak operating temperatures.
Abrasion and Mechanical Stress: For areas with high wear potential, select robust materials like nylon or heavy-duty braided PET.
Regulatory Compliance: Adhere to any industry-specific standards for flammability (e.g., UL VW-1), toxicity (LSZH), or material composition.
EMI Shielding Needs: If electromagnetic interference is a concern, select conductive or metal-braided sleeves designed for EMI/RFI protection.

Tips for Measuring and Fitting

Measure Bundle Diameter: Use callipers for an accurate measurement of the cable bundle's widest point.
Account for Connectors: Ensure the sleeve's initial diameter is large enough to pass over any connectors or large components.
Calculate Length Accurately: Add a small percentage (5-10%) to the measured length to allow for routing deviations or changes in length during installation (e.g., braided sleeves shorten when expanded).
Test Fit a Sample: Whenever possible, test a small section on the actual cable bundle to verify fit and suitability.
Proper Cutting Technique: Use a hot knife for braided monofilament sleeves (PET, nylon) to melt and seal the ends, preventing fraying.

Heat Resistance and Durability of Cable Sleeves

A sleeve's thermal and mechanical resilience is dictated by its constituent material properties, which are critical for performance in demanding environments.

Material-Specific Heat Resistance and Durability

PET: Provides good all-around performance for general use (-70°C to 125°C), with notable abrasion resistance, often used in electronics and automotive.
Fibreglass: Essential for high-temperature applications (up to 260°C coated, 540°C uncoated), inherently non-flammable and provides excellent thermal insulation.
Nylon: Offers superior abrasion and chemical resistance, suitable for rugged environments (-40°C to 120°C-150°C), common in heavy machinery.
Heat-shrink polymers: Polyolefin is versatile for insulation and protection (-55°C to 135°C); Fluoropolymers (like PTFE) provide higher temperature resistance and chemical inertness.

Exceeding a sleeve's specified temperature limits can lead to critical failures like melting, embrittlement, or loss of protective properties. Durability factors including wear resistance, UV stability (for outdoor use), and chemical compatibility are crucial for the sleeve's lifespan and its ability to protect cables effectively in harsh operational conditions.

Common Industrial Applications of Cable Sleeves

Cable protection sleeves are critical protective components utilised across a multitude of industries, safeguarding wiring against specific operational hazards and environmental extremes.

Automotive

Challenges: Exposure to high engine temperatures, constant vibration, abrasive surfaces, and corrosive fluids (oils, fuels).

Common Sleeves: Braided PET for general harness protection, nylon sleeves for high abrasion zones, specialised heat-shrink tubing for sealing connectors, and silicone-coated fibreglass near exhaust systems.

Aerospace and Defence

Challenges: Need for extreme reliability under wide temperature fluctuations, stringent flame retardancy, low outgassing properties (in vacuum), and resistance to aggressive aviation fluids.

Common Sleeves: High-performance braided materials like PEEK or Nomex®, PTFE/FEP heat-shrink tubing for chemical inertness, and specialised EMI/RFI shielding sleeves for sensitive avionics.

Manufacturing and Industrial Automation

Challenges: Cables subjected to repetitive motion in robotics, abrasion from machinery, and contact with industrial coolants, oils, and solvents.

Common Sleeves: Heavy-duty braided PET or nylon for robotic arms, flexible spiral wrap for cable organisation in control cabinets, and robust PUR (Polyurethane) sleeving for high wear and chemical exposure.

Data Centres and Telecommunications

Challenges: Effective cable management sleeves needed for high-density installations, maintaining optimal airflow for cooling equipment, ensuring signal integrity, and meeting strict flame retardancy codes.

Common Sleeves: Expandable braided PET sleeving (often coloured for identification and plenum-rated), easy-to-use hook-and-loop (Velcro) sleeves for frequent cable changes, and halogen-free materials.

Marine

Challenges: Constant exposure to corrosive saltwater environments, high moisture levels, UV radiation from sunlight, oils, fuels, and mechanical stress from vessel movement.

Common Sleeves: Adhesive-lined heat-shrink tubing for creating watertight seals, tinned copper braided sleeving for EMI shielding and corrosion resistance, and heavy-duty neoprene or Hypalon® based sleeves.

Rail and Mass Transit

Challenges: Adherence to rigorous fire safety standards (e.g., EN 45545 for LSZH - Low Smoke Zero Halogen), robust resistance to vibration, wide operational temperature ranges, and high mechanical durability for passenger safety.

Common Sleeves: LSZH-compliant braided cable sleeves and heat-shrink tubing, tough nylon or polyester braided sleeves for undercarriages, and fibreglass sleeving for high-temperature zones.
