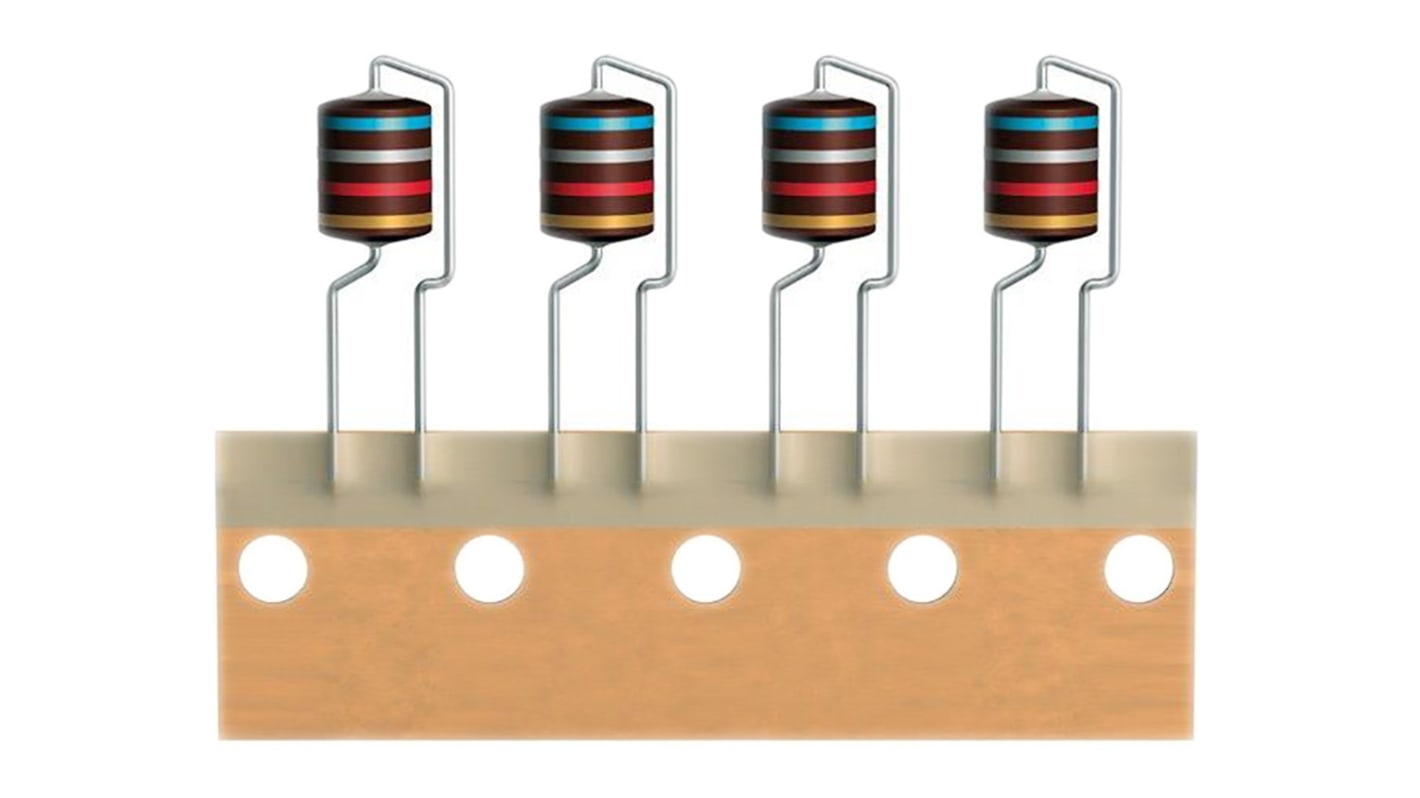

EPCOS 1 mH ±5% Ferrite Leaded Inductor, Max SRF:2.2MHz, Q:60, 280mA Idc, 4.2Ω Rdc, LBC
- RS Stock No.:
- 880-7234
- Mfr. Part No.:
- B82144B1105J000
- Manufacturer:
- EPCOS
Bulk discount available
Subtotal (1 bag of 10 units)**
MYR18.53
690 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 10 - 240 | MYR1.853 | MYR18.53 |
| 250 - 490 | MYR1.818 | MYR18.18 |
| 500 + | MYR1.742 | MYR17.42 |
**price indicative
- RS Stock No.:
- 880-7234
- Mfr. Part No.:
- B82144B1105J000
- Manufacturer:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 1 mH | |
| Maximum DC Current | 280mA | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 4.2Ω | |
| Tolerance | ±5% | |
| Diameter | 6.5mm | |
| Length | 30.5mm | |
| Height | 9.2mm | |
| Dimensions | 6.5 (Dia.) x 9.2mm | |
| Core Material | Ferrite | |
| Maximum Self Resonant Frequency | 2.2MHz | |
| Lead Pitch | 5mm | |
| Series | LBC | |
| Terminal Type | Radial Leaded | |
| Lead Diameter | 0.8mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Minimum Quality Factor | 60 | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 1 mH | ||
Maximum DC Current 280mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 4.2Ω | ||
Tolerance ±5% | ||
Diameter 6.5mm | ||
Length 30.5mm | ||
Height 9.2mm | ||
Dimensions 6.5 (Dia.) x 9.2mm | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 2.2MHz | ||
Lead Pitch 5mm | ||
Series LBC | ||
Terminal Type Radial Leaded | ||
Lead Diameter 0.8mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Minimum Quality Factor 60 | ||
