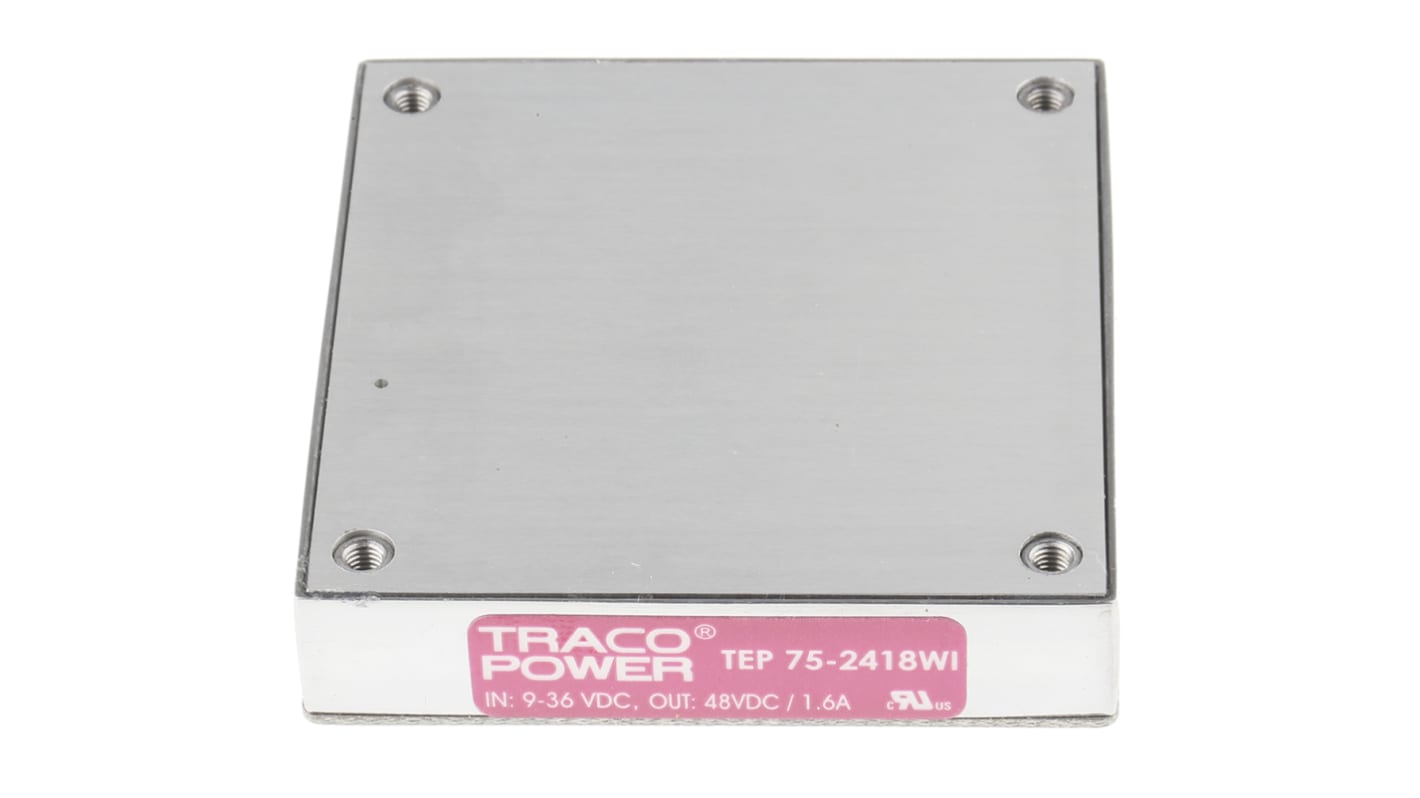

TRACOPOWER TEP 75WI DC-DC Converter, 48V dc/ 1.6A Output, 9 → 36 V dc Input, 75W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 781-6931
- Mfr. Part No.:
- TEP 75-2418WI
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)**
MYR560.20
11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 4 | MYR560.20 |
| 5 - 9 | MYR549.00 |
| 10 - 24 | MYR538.04 |
| 25 - 124 | MYR527.28 |
| 125 + | MYR516.73 |
**price indicative
- RS Stock No.:
- 781-6931
- Mfr. Part No.:
- TEP 75-2418WI
- Manufacturer:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 48V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 75W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 1.6A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 2.25kV dc | |
| Length | 61mm | |
| Depth | 12.7mm | |
| Railway Approved | Yes | |
| Series | TEP 75WI | |
| Load Regulation | 0.001 | |
| Maximum Temperature | +75°C | |
| Medical Approved | No | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 48V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 75W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 1.6A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 2.25kV dc | ||
Length 61mm | ||
Depth 12.7mm | ||
Railway Approved Yes | ||
Series TEP 75WI | ||
Load Regulation 0.001 | ||
Maximum Temperature +75°C | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
