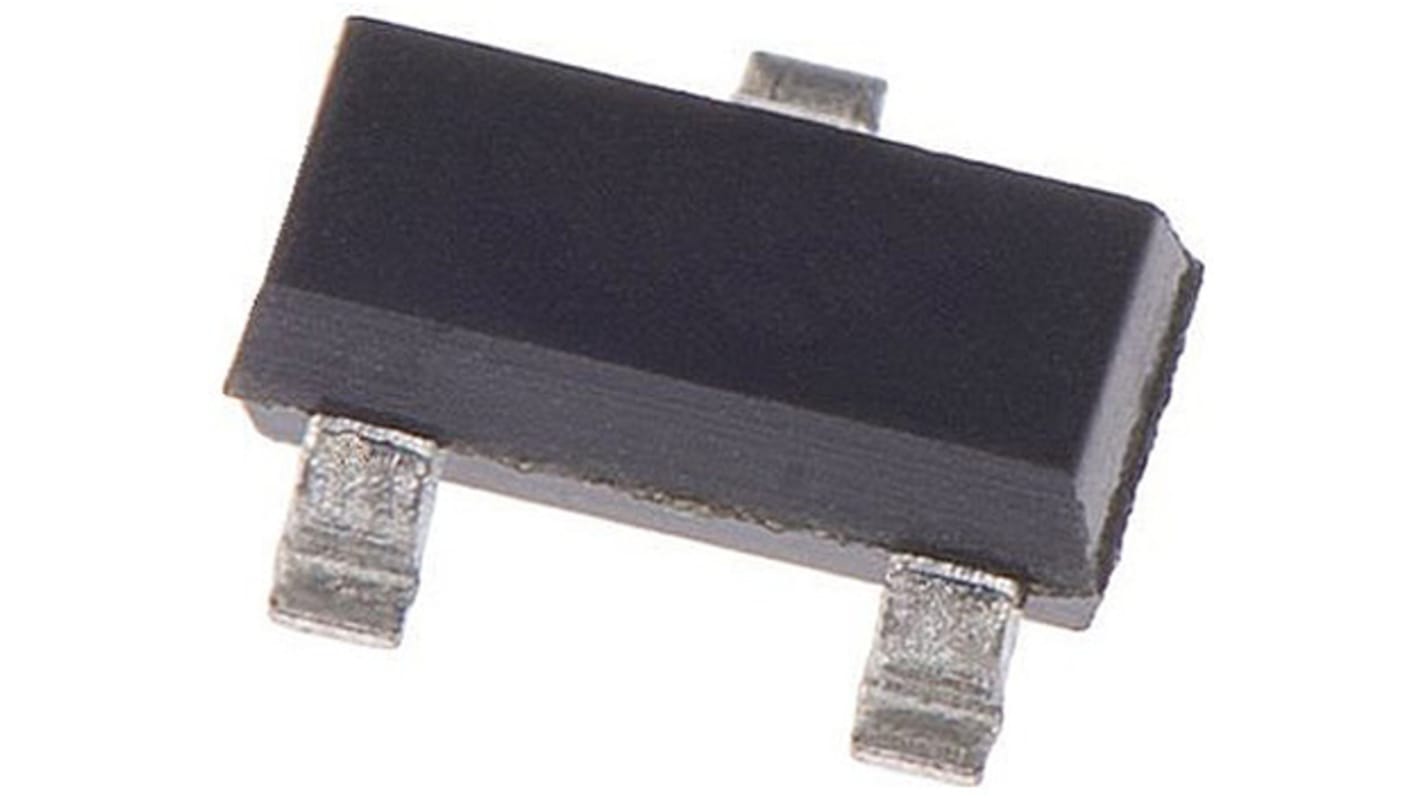

Nexperia BCV47,215 NPN Darlington Transistor, 500 mA 60 V HFE:2000, 3-Pin SOT-23 (TO-236AB)
- RS Stock No.:
- 169-0631
- Mfr. Part No.:
- BCV47,215
- Manufacturer:
- Nexperia
27000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 3000)
MYR0.406
| Units | Per Unit | Per Reel* |
| 3000 - 3000 | MYR0.406 | MYR1,218.00 |
| 6000 - 9000 | MYR0.398 | MYR1,194.00 |
| 12000 + | MYR0.39 | MYR1,170.00 |
| *price indicative | ||
- RS Stock No.:
- 169-0631
- Mfr. Part No.:
- BCV47,215
- Manufacturer:
- Nexperia
Technical data sheets
Legislation and Compliance
Product Details
Darlington Transistors, Nexperia
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bipolar Transistors, Nexperia
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 500 mA |
| Maximum Collector Emitter Voltage | 60 V |
| Maximum Emitter Base Voltage | 10 V |
| Package Type | SOT-23 (TO-236AB) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 2000 |
| Maximum Base Emitter Saturation Voltage | 1.5 V |
| Maximum Collector Base Voltage | 80 V |
| Maximum Collector Emitter Saturation Voltage | 1 V |
| Maximum Collector Cut-off Current | 0.0001mA |
| Length | 3mm |
| Width | 1.4mm |
| Height | 1mm |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 3 x 1.4 x 1mm |
