- RS Stock No.:
- 679-5868
- Mfr. Part No.:
- 43020-0601
- Manufacturer:
- Molex
1410 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each (In a Pack of 5)
Was MYR2.526
You pay
MYR2.40
units | Per Unit | Per Pack* |
5 - 1120 | MYR2.40 | MYR12.00 |
1125 - 2245 | MYR2.35 | MYR11.75 |
2250 + | MYR2.304 | MYR11.52 |
*price indicative |
- RS Stock No.:
- 679-5868
- Mfr. Part No.:
- 43020-0601
- Manufacturer:
- Molex
Legislation and Compliance
Product Details
Molex 3.00mm Micro-Fit 3.0 Wire to Wire Plug and Receptacle Crimp Housings, Series 43025 and 43020
3.00mm pitch Micro-Fit 3.0 series wire to wire dual row plug (series 43020) and receptacle (series 43025) crimp housings that form part of a unique compact and high density low to mid-range power connector system that can carry up to 5.0A of current. These 3.00mm pitch Micro-Fit 3.0 plug and receptacle crimp housings feature positive locking for a secure connection and are fully polarized to prevent mismating. In addition the Micro-Fit 3.0 43020 series plug connectors with part numbers 43020xx00 have mounting ears enabling them to be used in panel mount applications.
The Micro-Fit 3.0 43025 series crimp receptacle housings mate with the 43020 series crimp plug housings and use 43030 or 46235 series receptacle contacts. The 43020 crimp plug housings use 43031 series crimp pin contacts.
The Micro-Fit 3.0 43025 series crimp receptacle housings mate with the 43020 series crimp plug housings and use 43030 or 46235 series receptacle contacts. The 43020 crimp plug housings use 43031 series crimp pin contacts.
Features and Benefits
Housings are black in colour
Positive locking for a secure connection
Fully polarised which prevents mismating and misalignment
Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
Dual Row
Low Halogen
Wire to wire and wire to board
Positive locking for a secure connection
Fully polarised which prevents mismating and misalignment
Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
Dual Row
Low Halogen
Wire to wire and wire to board

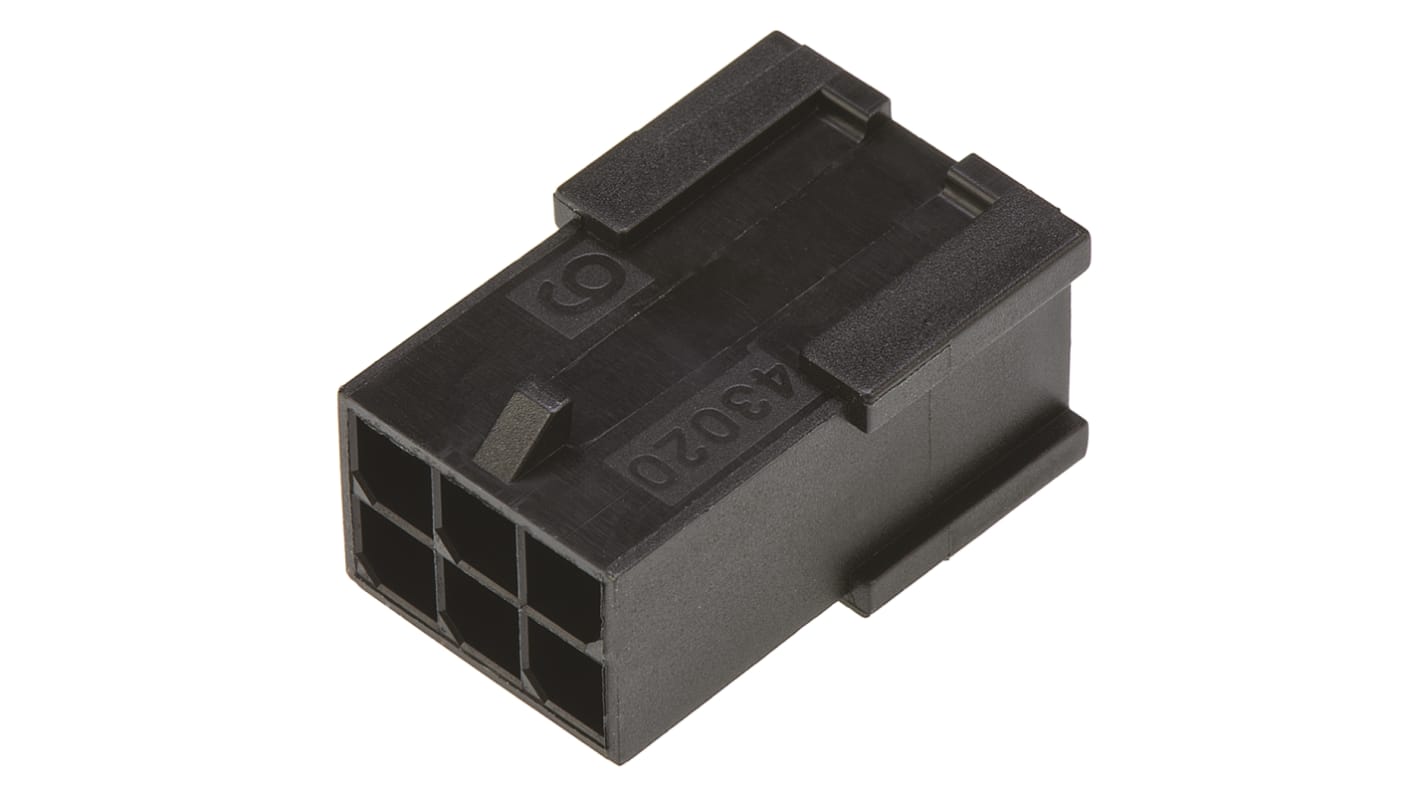

Molex Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 6 Contacts - 43020 Series - 43020-0601
Looking for a way to safeguard your printed circuit board (PCB) connections? This 3mm-pitch male connector housing from Molex can hold up to six different connectors and provides a protective casing for delicate wires and contacts. The long-lasting polyester material is robust and effectively shields internal components from chemical and corrosive damage. Use this unit to secure your connectors and allow for reliable links between different PCBs or between a PCB and a cable.
Wide operating temperature range of -40°C to +105°C for use in harsh ambient conditions
Positive locking latch secures connections to ensure the interference-free transmission of signals between components
Flexible connector housing, so you can make strong wire-to-wire and wire-to-board connections
Positive locking latch secures connections to ensure the interference-free transmission of signals between components
Flexible connector housing, so you can make strong wire-to-wire and wire-to-board connections
Applications
PCB connections in industrial control panels
Server rooms and data networks
Server rooms and data networks
Does this connector housing help with the correct mating of connectors?
Yes. This connector housing from Molex is fully polarised to prevent the mismating and misalignment of connectors and ensure optimal signal transferability.
Will this component give off toxic emissions during a fire outbreak?
No. This product's low halogen content gives you peace of mind that toxic gas emissions are limited when it is exposed to heat.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Molex Micro-Fit 3.0 Series
Specifications
Attribute | Value |
---|---|
Number of Contacts | 6 |
Number of Rows | 2 |
Pitch | 3mm |
Gender | Male |
Mounting Type | Cable Mount |
Series | Micro-Fit 3.0 |
For Use With | Micro-Fit 3.0 Plug |
Body Orientation | Straight |
Width | 9.65mm |
Housing Material | Nylon |
