350766-4 - TE Connectivity Male Connector Housing - Universal MATE-N-LOK, 6.35mm Pitch, 3 Way, 1 Row

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

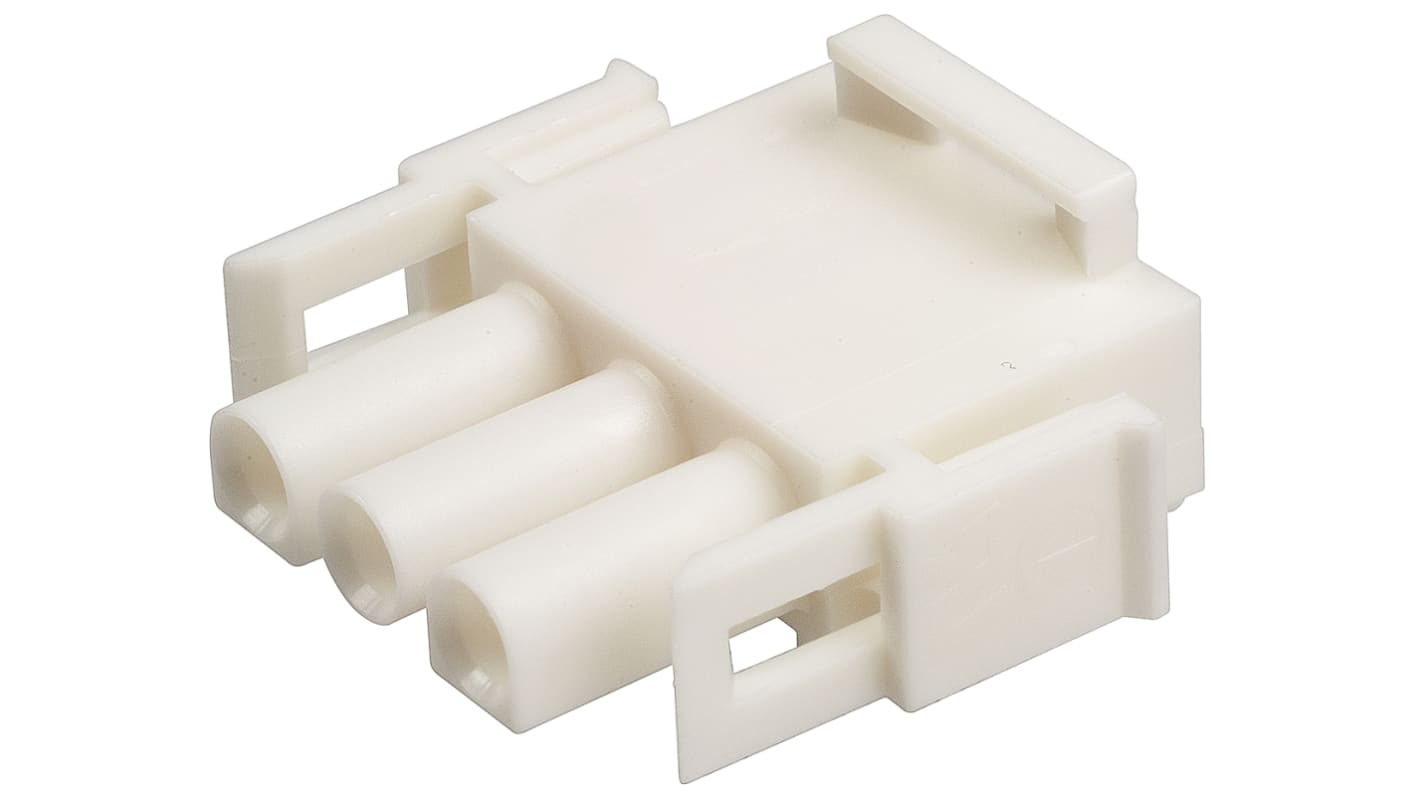

TE Connectivity Universal Mate-N-Lok Connector Vertical Pin Housing

TE Connectivity universal Mate-N-Lok vertical pin housing connectors are suitable for wire to board connector applications (using pin and socket header connectors found elsewhere in this range) and panel mount or free hanging and can mate with Universal Mate-N-lok II housing connectors. They have a low mating force, with dual locking lances for optimum contact stability. The contacts are completely enclosed in the housing and are removable, featuring positive polarisation and rear cavity identification on the connector.

Features and benefits:

• Positive locking housing with window latch
• Free hanging or panel mount
• Rear cavity connector identification
• Pin and socket contacts can be mixed in the same connector housing
• Connector contacts are 0.250 (6.35mm) centreline spacing
• Solderability meets MIL-STD 202 method 208.
• Locking mechanism with a clear 'click' when mated

Applications:

• Consumer Electronics
• Commercial usage
• Power supplies
• HVAC
• Lighting
• Portable devices

//media.rs-online.com/t_line/L0514833-01.gif

TE Connectivity Universal MATE-N-LOK™ Range

Specifications
Attribute Value
Number of Contacts 3
Number of Rows 1
Pitch 6.35mm
Gender Male
Mounting Type Cable Mount
Series Universal MATE-N-LOK
For Use With Centerline Soft Shell Pin & Socket Connector
Body Orientation Straight
Width 14.73mm
Housing Material Nylon
6500 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 500)
MYR 1.93
units
Per unit
Per Bag*
500 +
MYR1.93
MYR965.00
*price indicative
