Siretta ECHO18/0.1M/UFL/S/S/15 PCB WiFi Antenna with UFL Connector, WiFi
- RS Stock No.:
- 896-8282
- Mfr. Part No.:
- ECHO18/0.1M/UFL/S/S/15
- Manufacturer:
- Siretta
60 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR50.53
| Units | Per Unit |
| 1 - 9 | MYR50.53 |
| 10 + | MYR48.95 |
- RS Stock No.:
- 896-8282
- Mfr. Part No.:
- ECHO18/0.1M/UFL/S/S/15
- Manufacturer:
- Siretta
Technical data sheets
Legislation and Compliance
Product Details

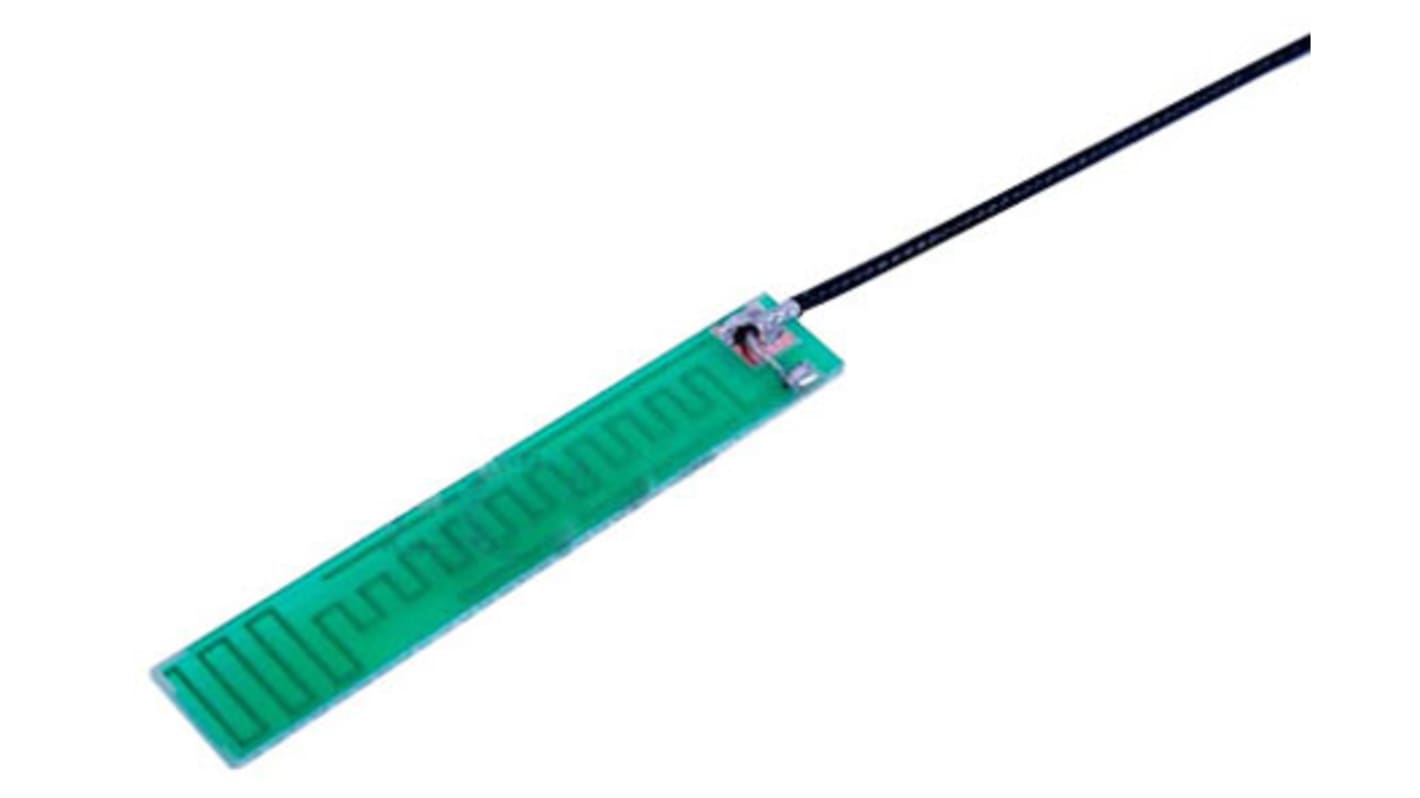

ECHO 18 2.4 GHz Wi-Fi & WLAN PCB Antenna, Siretta
The ECHO 18 Wi-Fi and WLAN Antenna from Siretta is perfect for your Wi-Fi, Bluetooth, Zigbee and ISM applications where space is limited, such as portable devices or watertight designs.
Features & Benefits of the ECHO 18
•37 mm x 6 mm
•100 mm of 1.13 mm coaxial cable with IPEX connector
•2.6 dBi peak gain
•-20° C to +60° C operating temperature range
•50 ohm impedance
•Vertical polarization
• wave dipole radiating element
Features & Benefits of the ECHO 18
•37 mm x 6 mm
•100 mm of 1.13 mm coaxial cable with IPEX connector
•2.6 dBi peak gain
•-20° C to +60° C operating temperature range
•50 ohm impedance
•Vertical polarization
• wave dipole radiating element
2.4GHz Antennas
Specifications
Attribute | Value |
|---|---|
| RF Protocols | WiFi |
| Internal/External | Internal |
| Frequency Range | 2.4 GHz |
| Antenna Physical Form | PCB |
| Connector Type | UFL |
| Antenna Mounting Type | PCB |
| Mounting Type | PCB |
| Gain | 0.8dBi |
| Cable Length | 100mm |
| Antenna Directivity | Omnidirectional |
| Series | Echo 18 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
