OD3-2400MOD2-BLK Mobilemark - Rod WiFi Antenna, Wall/Pole Mount, (2.4 GHz) N Type Connector

  • RS Stock No. 797-5778
  • Mfr. Part No. OD3-2400MOD2-BLK
  • Manufacturer Mobilemark
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

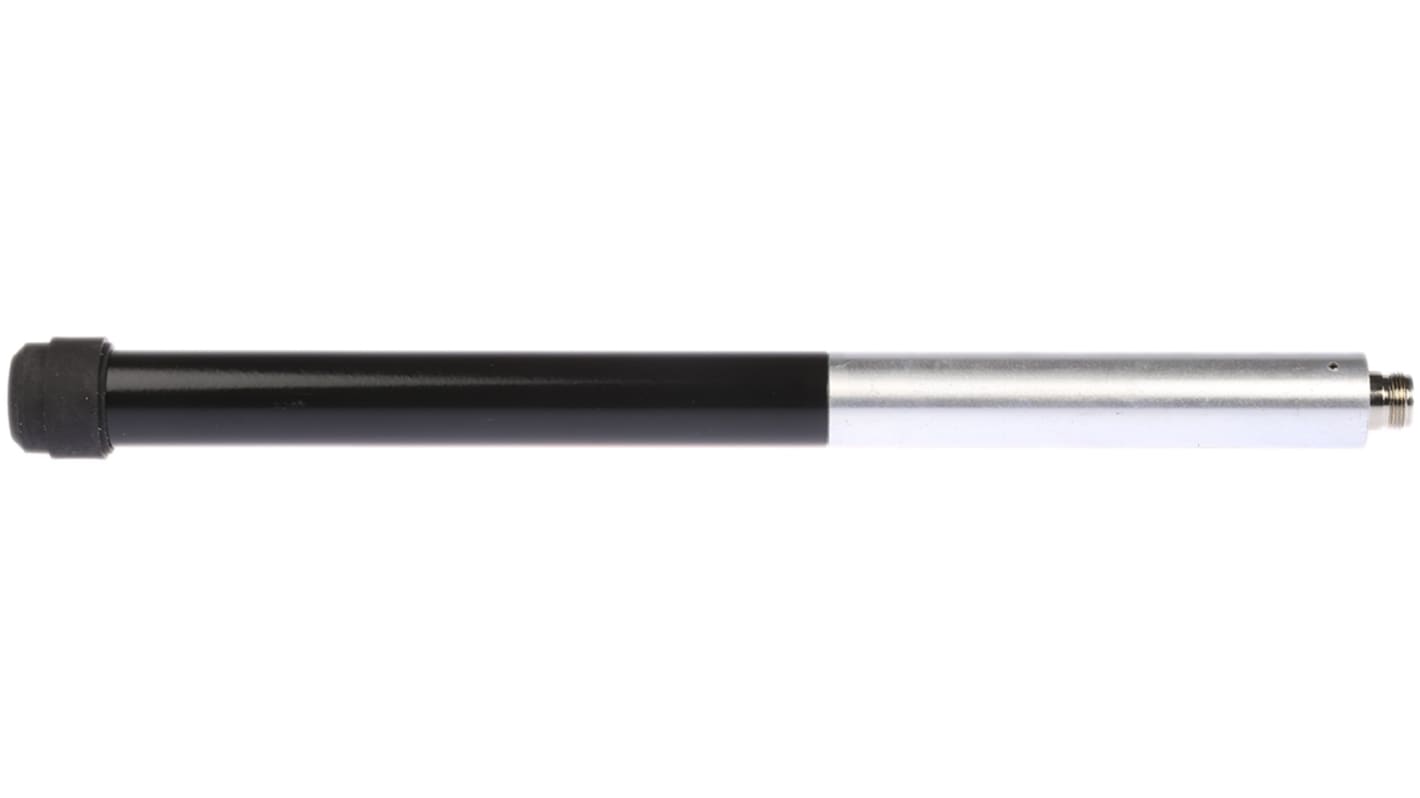

OD Series High Vibration 2.4GHz Omni Antenna

The MobileMark 2.4 GHz high vibration antenna provide an excellent solution for a large area network in extreme environments such as quarry, mining and oil field construction.
The omni directional antenna OD5-2400/5500-MOD2-BLK will cover frequency ranges of 2.4GHz and 5.5GHz at 5 dBi. The OD-MOD2 series is made up from black fibreglass and aluminium that gives protection against the weather conditions. MobileMark's antennas give enhanced performances with the unique phasing, as it cancels out-of-phase current distribution.

· Uniform omni directional
· VSWR 2:1 max over band
· Antenna diameter,25mm
· Shock and vibration, EN 300 019-2-4, IEC 60068

· OD3-2400MOD2-BLK, 2.4 GHz,3dBi
· OD6-2400MOD2-BLK 2.4 GHz, 6dBi
· OD5-2400/5500MOD2-BLK, 2.4 GHz and 5.5 GHz,5dBi

2.4GHz Antennas

Specifications
Attribute Value
Internal/External External
RF Protocols WiFi
Supported Frequency Bands 2.4 GHz
Antenna Physical Form Rod
Connector Type N Type
Antenna Mounting Type Wall/Pole
Gain 3dBi
Antenna Directivity Omnidirectional
Connector Gender Female
142 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR746.09
MYR 738.34
units
Per unit
1 - 9
MYR738.34
10 - 49
MYR686.62
50 +
MYR661.63
