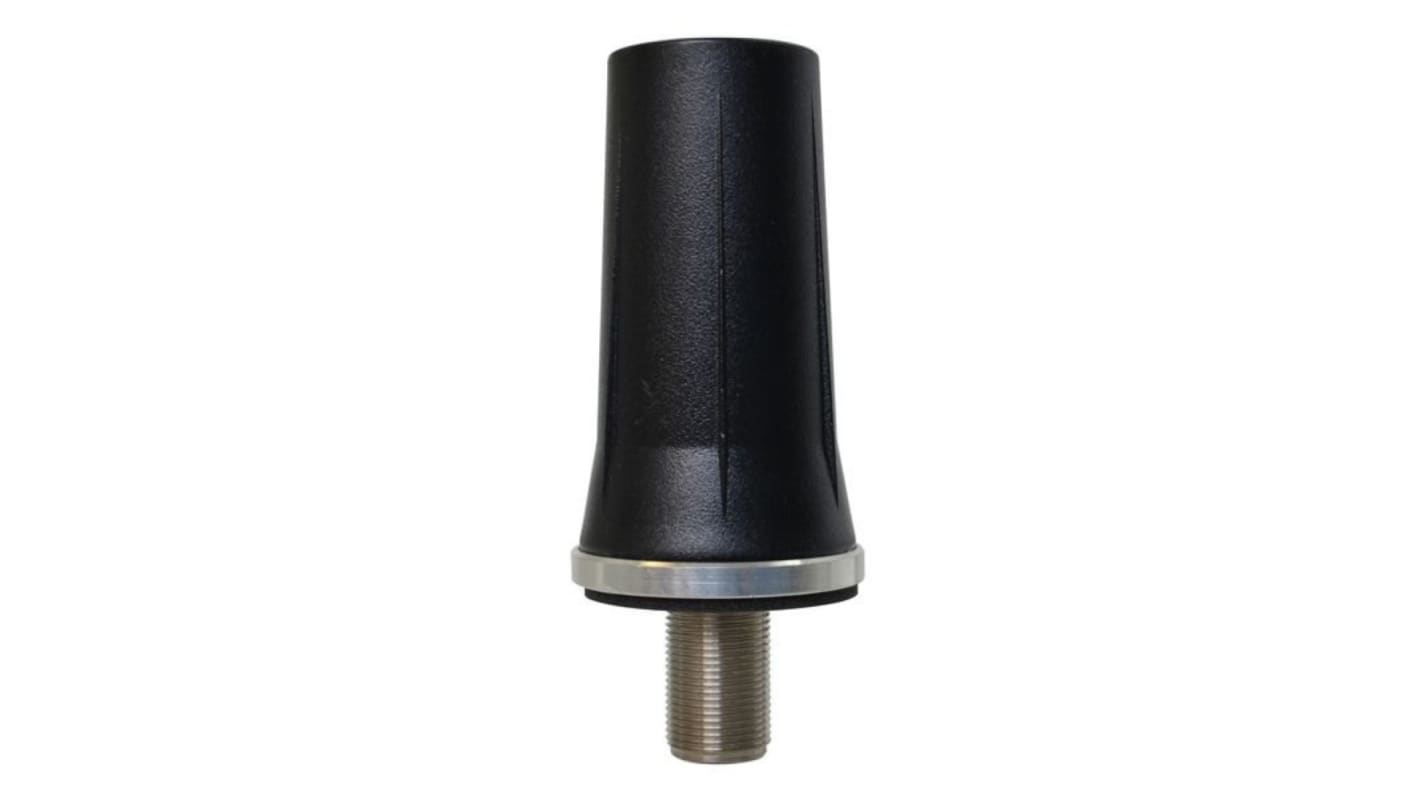

Mobilemark RM-WHF-DN-BLK Stubby WiFi Antenna with N Type Connector, WiFi (Dual Band)
- RS Stock No.:
- 793-2055
- Mfr. Part No.:
- RM-WHF-DN-BLK
- Manufacturer:
- Mobilemark
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR377.92
| Units | Per Unit |
| 1 - 9 | MYR377.92 |
| 10 - 49 | MYR353.90 |
| 50 + | MYR323.51 |
- RS Stock No.:
- 793-2055
- Mfr. Part No.:
- RM-WHF-DN-BLK
- Manufacturer:
- Mobilemark
Technical data sheets
Legislation and Compliance
Product Details
RM Series - SMT Antenna,WB
The Mobile Mark wideband antenna series can perform at 3dBi Gain (1.65-2 GHz) or 5dBi Gain (2.1-6 GHz). The RM series antenna can be surface mounted by means of feed through or stud mount types. They can be used in Industrial applications and the direct N Jack version mounts to vehicles, bulkhead and containers. The feed through SMT antenna incorporates ASA radome UV stable plastic, metal base and a gasket in the bottom mounting plate providing a watertight seal. Mobilemark’s WB antennas have a frequency coverage range of 1.7-6 GHz. They can be used for 802.11 a/b/g/n, AWS, WIMAX, 4.9 Public Safety and DSRC.
IP67
No requirement for ground plane
Shock and Vibration EN 61373,IEEE 1478,MIL-810G,TIA-329.2-C
No requirement for ground plane
Shock and Vibration EN 61373,IEEE 1478,MIL-810G,TIA-329.2-C
Mobile Mark
Specifications
Attribute | Value |
|---|---|
| RF Protocols | WiFi (Dual Band) |
| Internal/External | External |
| Antenna Physical Form | Stubby |
| Frequency Range | 1.7 → 6 GHz |
| Connector Type | N Type |
| Mounting Type | Through Hole/Bolted |
| Antenna Mounting Type | Through Hole/Bolted |
| Gain | 5dBi |
| Connector Gender | Female |
| Antenna Directivity | Omnidirectional |
| Maximum Operating Temperature | +85°C |
| Series | RM |
| Minimum Operating Temperature | -40°C |
