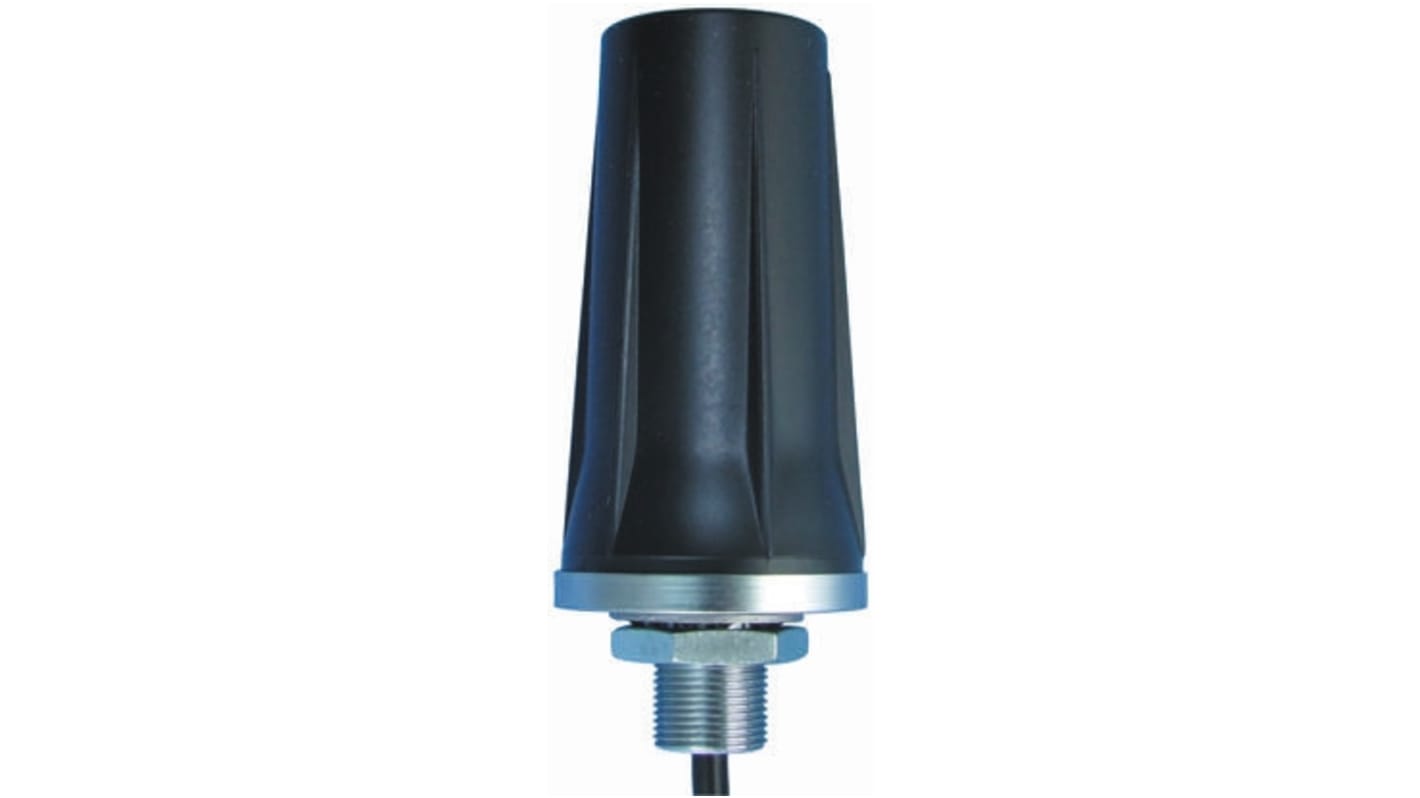

RMM-UMB-3C-BLK-12 Mobilemark - Stubby 2G (GSM/GPRS), 3G (UTMS), 4G (LTE), WiFi Broadband Antenna,

  • RS Stock No. 793-2052
  • Mfr. Part No. RMM-UMB-3C-BLK-12
  • Manufacturer Mobilemark
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RMM Series-SMT Antenna,broadband

Mobile Mark Broadband RMM antenna is available in two forms these are designed for Cellular applications. This SMT series antenna operates global, in 750 MHz up to 2.7 GHz bandwidth. The broadband coverage includes 802.11 b/g and UMTS. They offer either a feed through surface mount type with three cables or a direct N stud mount version.

· Stud mount type: 5/8 inch hole (16 mm)
· Watertight seal
· VSWR: 2:1 max over range
· Shock and Vibration EN 61373,IEEE 1478,MIL-810G,TIA-329.2-C
· Broadband US/EU Cellular;
3dBi =750 MHz – 1250 MHz
5dBi =1650 MHz – 2000 MHz
3dBi =2100 MHz – 2700 MHz

Mobile Mark

Specifications
Attribute Value
Internal/External External
RF Protocols WiFi, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE)
Antenna Physical Form Stubby
Supported Frequency Bands 750 → 2700 MHz
Antenna Mounting Type Through Hole/Bolted
Connector Type SMA
Gain 5dBi
Cable Length 300mm
Antenna Directivity Omnidirectional
Connector Gender Male
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 253.73
units
Per unit
1 - 9
MYR253.73
10 - 49
MYR230.73
50 +
MYR211.44
