ECHO11/0.2M/IPEX/S/S/12 Siretta - PCB WiFi Antenna, Adhesive Mount, (2.4 2.5 GHz) IPEX Connector

  • RS Stock No. 124-8686
  • Mfr. Part No. ECHO11/0.2M/IPEX/S/S/12
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

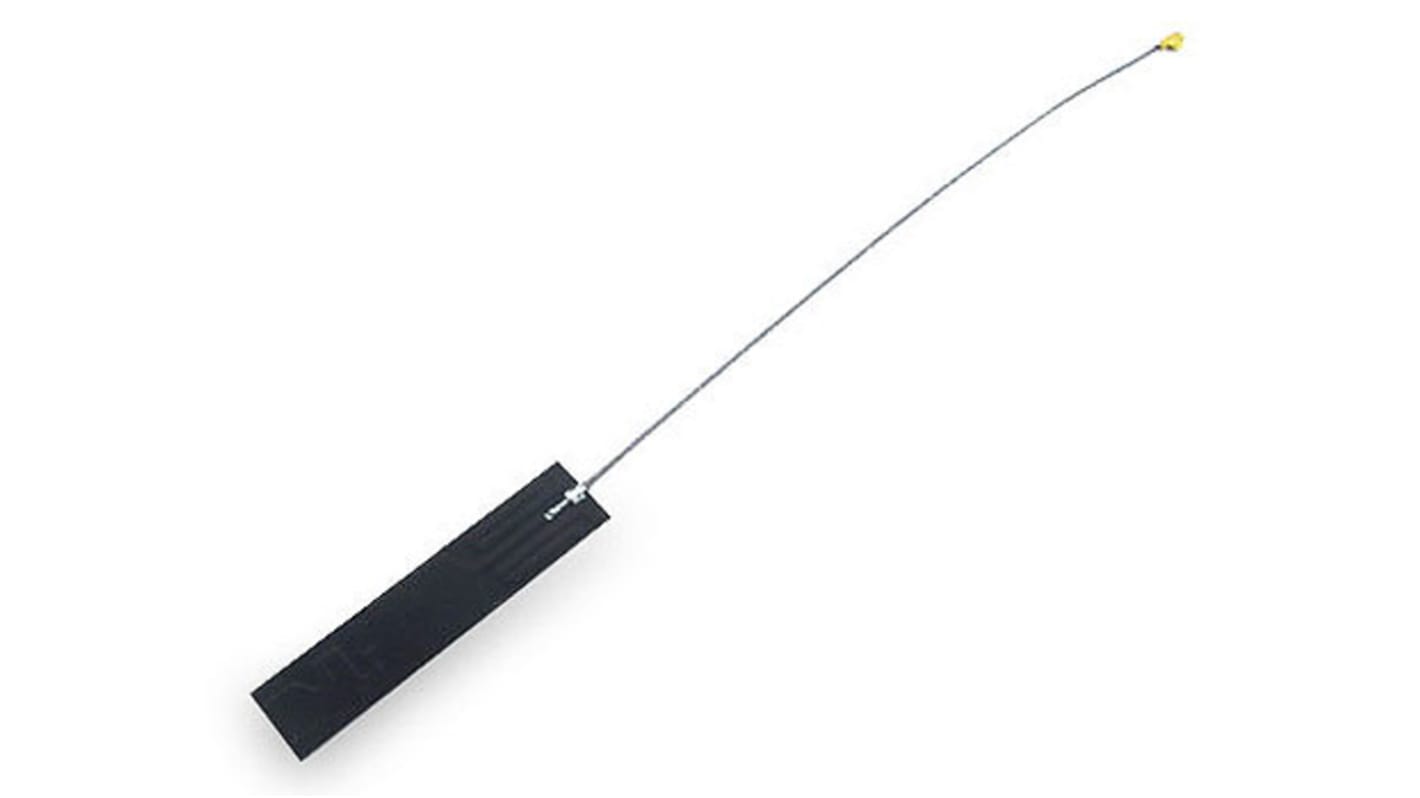

ECHO 11 WiFi/WLAN/Bluetooth/ZigBee PCB Antenna, Siretta

The ECHO 11 Bluetooth/WiFi Antenna from Siretta is perfect for your WiFi, Bluetooth, Zigbee and ISM applications. The antenna is ideal for portable devices or watertight designs where space is limited and has an adhesive strip for easy fixing.

The Echo 11 is available with a choice of 2 cables lengths, both terminated with a uFL / IPEX connector.

ECHO11/0.1M/IPEX/S/S/12 - 100 mm cable (RS 896-8279)
ECHO11/0.2M/IPEX/S/S/12 - 200 mm cable (RS 124-8686)

Operating Temperature: -20 to +65°C
Impedance: 50 Ω
Gain: 2.6 dBi
VSWR: <1.6:1
Polarisation: Vertical
WiFi/WLAN/Bluetooth/ZigBee: 2.4 GHz to 2.5 GHz

Dimensions
Length: 45 mm
Width: 10 mm
Height: 1 mm
Cable thickness: 1.13 mm
Cable length: 200 mm

2.4GHz Antennas

Specifications
Attribute Value
RF Protocols WiFi
Internal/External External
Supported Frequency Bands 2.4 2.5 GHz
Antenna Physical Form PCB
Connector Type IPEX
Antenna Mounting Type Adhesive
Antenna Type PCB
Gain 2.6dBi
Antenna Directivity Omnidirectional
Cable Length 200mm
Series ECHO 11
82 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 51.12
units
Per unit
1 - 9
MYR51.12
10 +
MYR48.27
