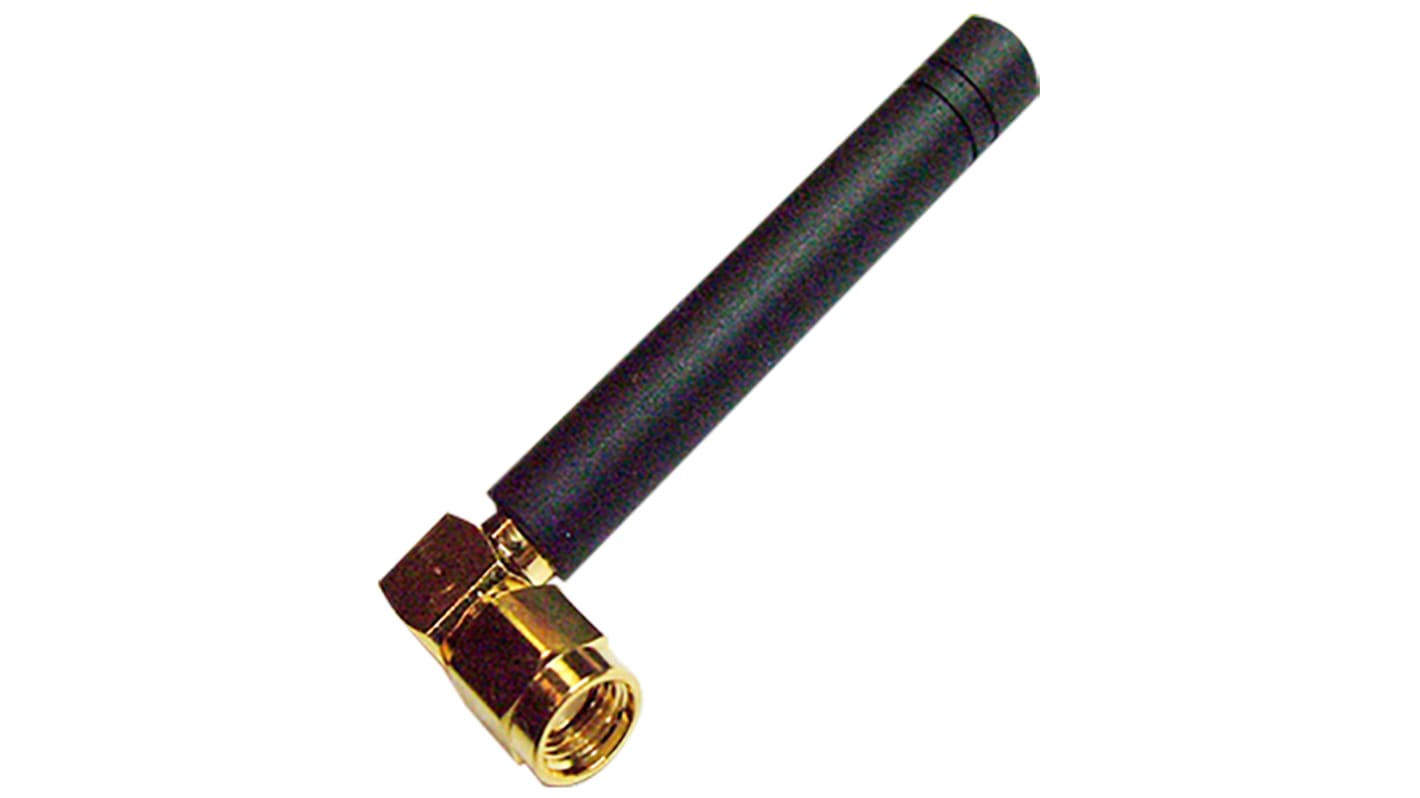

Siretta DELTA15/X/SMAM/RA/RP/11 Stubby WiFi Antenna with SMA RP Connector, WiFi
- RS Stock No.:
- 124-8672
- Mfr. Part No.:
- DELTA15/X/SMAM/RA/RP/11
- Manufacturer:
- Siretta
155 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR40.55
| Units | Per Unit |
| 1 - 9 | MYR40.55 |
| 10 - 49 | MYR39.71 |
| 50 + | MYR35.74 |
- RS Stock No.:
- 124-8672
- Mfr. Part No.:
- DELTA15/X/SMAM/RA/RP/11
- Manufacturer:
- Siretta
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
DELTA 14/15 2.4 GHz WiFi/WLAN/Bluetooth Antennas, Siretta
The Delta 14 and Delta 15 are direct connect, stubby antennas tuned to 2.4 GHz - WiFi / WLAN / Bluetooth / ZigBee frequencies. These antennas offer a small and compact, cable-free solution which is ideal for use with WiFi enabled terminals and modems.
These antennas are compatible replacements for many common WiFi modems such as Netgear and TP-link.
The Delta 14 and 15 are supplied with a reverse polarity (RP) SMA male connectors.
DELTA14/SMAM/S/RP/11 – Straight connector (RS 124-8671)
DELTA15/SMAM/RA/RP/11 – Right angled connector (RS 124-8672)
These antennas are compatible replacements for many common WiFi modems such as Netgear and TP-link.
The Delta 14 and 15 are supplied with a reverse polarity (RP) SMA male connectors.
DELTA14/SMAM/S/RP/11 – Straight connector (RS 124-8671)
DELTA15/SMAM/RA/RP/11 – Right angled connector (RS 124-8672)
Operating Temperature: -20 to +60˚C
Storage Temperature: -30 to +75˚C
Impedance: 50 Ω
Gain: 2 dBi
VSWR: 2 max
Polarisation: Vertical
Radiation: Omni directional
Operating Frequencies: 2.4 GHz to 2.5 GHz (WiFi / WLAN / Bluetooth / ZigBee)
Length: 56 mm (Delta 14), 53.5 mm (Delta 15)
Connector: Reverse Polarity SMA Male
Storage Temperature: -30 to +75˚C
Impedance: 50 Ω
Gain: 2 dBi
VSWR: 2 max
Polarisation: Vertical
Radiation: Omni directional
Operating Frequencies: 2.4 GHz to 2.5 GHz (WiFi / WLAN / Bluetooth / ZigBee)
Length: 56 mm (Delta 14), 53.5 mm (Delta 15)
Connector: Reverse Polarity SMA Male
2.4GHz Antennas
Specifications
Attribute | Value |
|---|---|
| RF Protocols | WiFi |
| Internal/External | External |
| Antenna Physical Form | Stubby |
| Frequency Range | 2.4 GHz |
| Mounting Type | Direct |
| Connector Type | SMA RP |
| Antenna Mounting Type | Direct |
| Gain | 2dBi |
| Antenna Directivity | Omnidirectional |
| Connector Gender | Male |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Series | Delta 15 |
