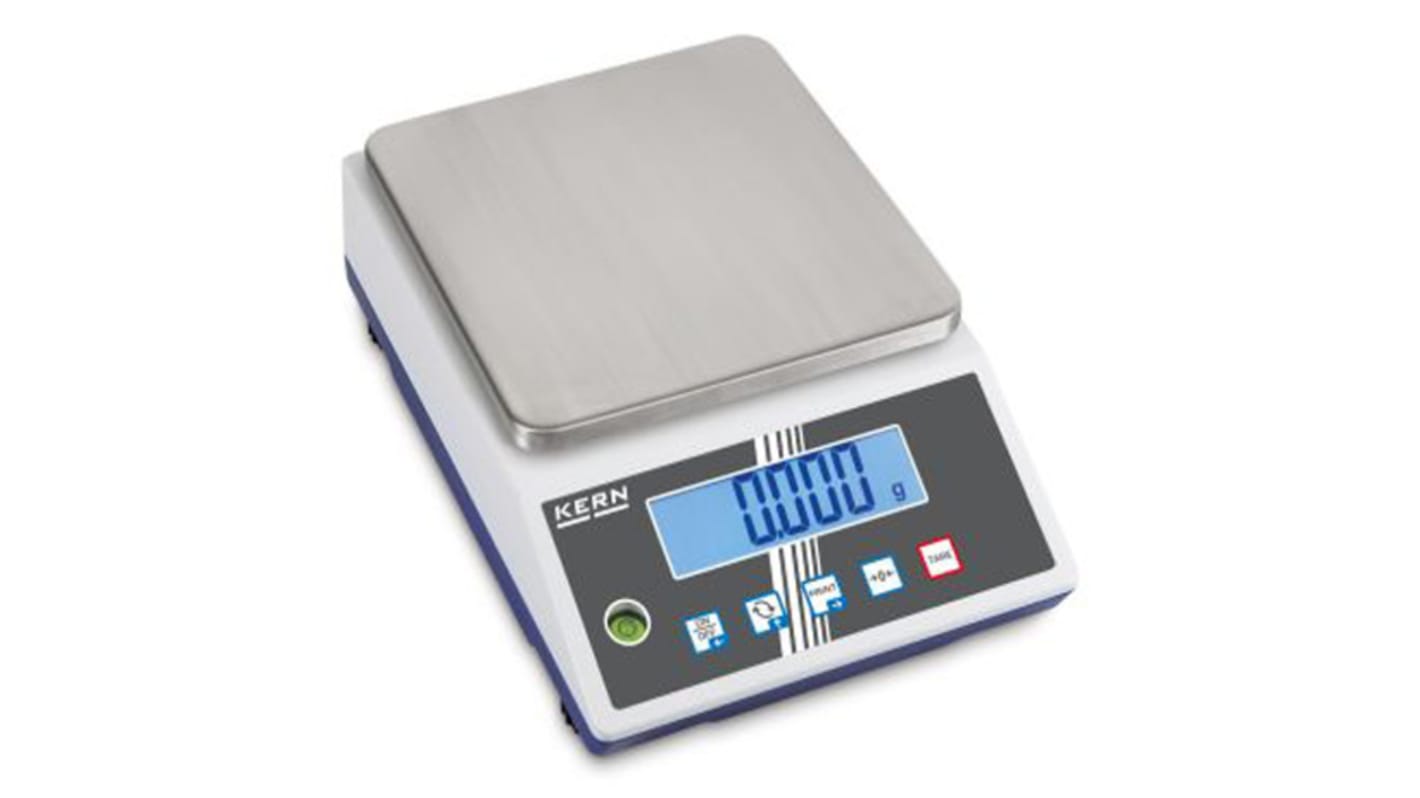

Kern PCB 6000-0 Precision Balance Weighing Scale, 6kg Weight Capacity
- RS Stock No.:
- 700-7106
- Mfr. Part No.:
- PCB 6000-0/RS
- Manufacturer:
- Kern
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,193.31
| Units | Per Unit |
| 1 + | MYR1,193.31 |
- RS Stock No.:
- 700-7106
- Mfr. Part No.:
- PCB 6000-0/RS
- Manufacturer:
- Kern
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
PCB 200 Series Scales
Stainless steel weighing plate
Backlit LCD display with 15mm high digits
Weighing Units: g, oz, ozt, lb, ct, tlH, tlt, gn, dwt, mo, tol
Weighing Units: All have kg except 700-7106
Adjusting program: For quick setting of the balance accuracy (External adjusting weight required)
Parts counting: Selectable reference quantities up to 50 pieces
Net-total weighing: Weight of tare-cup and weight of components memorised in 2 separate stores
Pre-TARE function for subtraction of a known container weight
Percentage determination: displays the deviation from the reference weight (100%) in % instead of grams
RS-232 data interface
Mains or battery powered (requires 1 x PP3 battery)
Auto power down after 3 mins without a change of load (in battery operation)
Size & weight: 163mm x 245mm x79mm; 1.3kg
Backlit LCD display with 15mm high digits
Weighing Units: g, oz, ozt, lb, ct, tlH, tlt, gn, dwt, mo, tol
Weighing Units: All have kg except 700-7106
Adjusting program: For quick setting of the balance accuracy (External adjusting weight required)
Parts counting: Selectable reference quantities up to 50 pieces
Net-total weighing: Weight of tare-cup and weight of components memorised in 2 separate stores
Pre-TARE function for subtraction of a known container weight
Percentage determination: displays the deviation from the reference weight (100%) in % instead of grams
RS-232 data interface
Mains or battery powered (requires 1 x PP3 battery)
Auto power down after 3 mins without a change of load (in battery operation)
Size & weight: 163mm x 245mm x79mm; 1.3kg
Supplied with
protective cover, instructions & mains adaptor.
Specifications
Attribute | Value |
|---|---|
| Weighing Capacity | 6kg |
| Scale Type | Precision Balance |
| Resolution | 1 g |
| Parts Counting | Yes |
| Interface Type | KERN Universal Port |
| Plug Type | Type B - North American 3-pin, Type C - European Plug, Type G - British 3-pin |
| Weighpan Length | 150mm |
| Weighpan Width | 170mm |
| Net Weight | 2kg |
| Model Number p | PCB 6000-0 |
| Minimum Operating Temperature | +5°C |
| Maximum Operating Temperature | +35°C |
