Xylem Lowara, 100 → 240 V ac Magnetic Coupling Water Pump, 460L/h

  • RS Stock No. 705-9428
  • Mfr. Part No. 609800001
  • Manufacturer Xylem Lowara
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

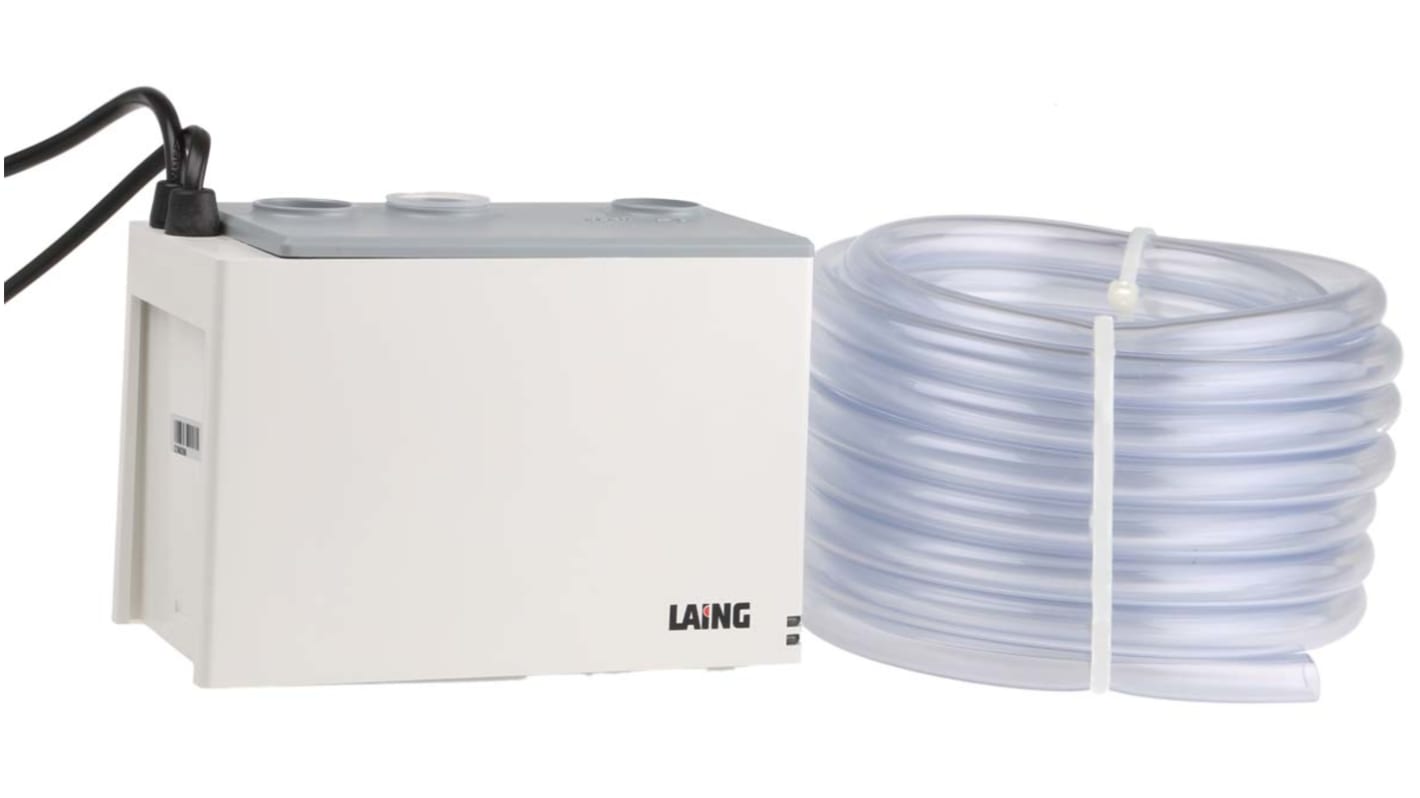

Lowara Condensate Pumping Station

The Lowara Condensate Pumping Station is a highly-efficient, low-energy consumption, magnetically-driven seal-less pump, offering low noise running and ingress protection to IP44. The pump, which is able to transport up to 7.7 litres per minute, is housed within an acid-resistant baffled ABS tank, and includes a sump to collect dirt to prevent blockage while operating. The pump also includes an electronic level sensing system.

Caution

Do not pump gasoline, diesel, solvents, paint or other thinners, or other flammable liquids. Not suitable for use in explosive atmospheres!

Approvals

CE, EMC

Supplied with

Wall mounting kit, 6m discharge hose with check valve, and inlet adaptor to allow connection of 18mm, 32mm and 40mm discharge pipes.

Specifications
Attribute Value
Maximum Flow Rate 460L/h
Supply Voltage 100 → 240 V ac
Input Connection 14 mm Hose Barb
Maximum Head 5.4m
Body Material ABS
Coupling Type Magnetic
Input Power 25W
Maximum Fluid Temperature +60°C
Input Connection Size 14mm
Output Connection Size 14mm
IP Rating IP44
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,439.00
units
Per unit
1 +
MYR1,439.00
