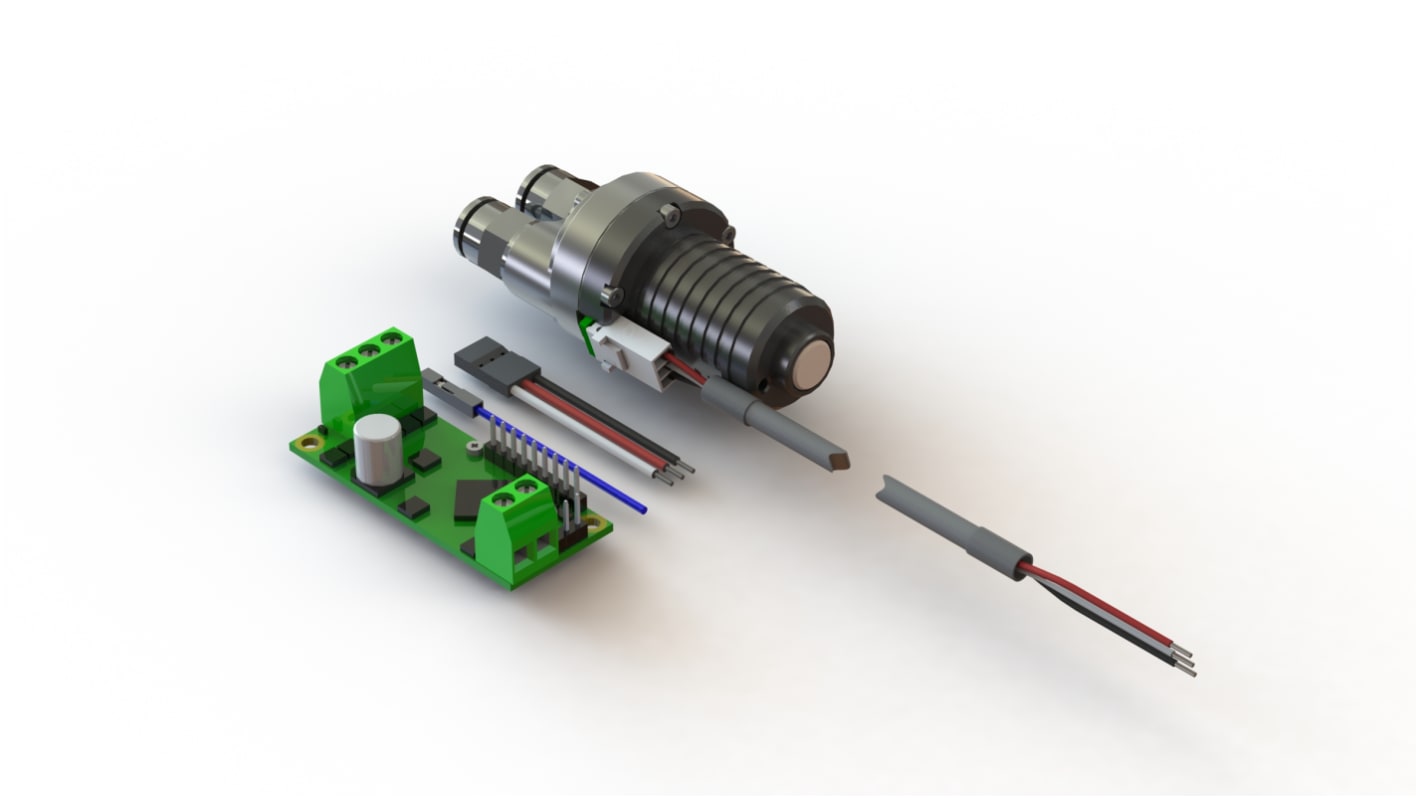

RS PRO 6 → 28V 8bar Direct drive, Seal-less Coupling Micro External Gear Pump Water Pump, 550ml/min
- RS Stock No.:
- 125-3560
- Manufacturer:
- RS PRO
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,912.30
| Units | Per Unit |
| 1 + | MYR1,912.30 |
- RS Stock No.:
- 125-3560
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
RS Miniature Self Priming Pumps
Self priming pumps with a reversible flow direction. Straightforward connections and compact dimensions make installation quick and easy. A high performance brushless motor ensures a smooth and consistent flow at impressive pressures for a compact liquid pump.Available with standard connections or manifold mountable and suitable for a wide range of applications including medical equipment, cooling systems, fuel cells, lubrication and precision flow systems.
Self priming
CNC alloy machined construction
Manifold mount options available to fit a manifold of your own design and requirements
CNC alloy machined construction
Manifold mount options available to fit a manifold of your own design and requirements
Specifications
Attribute | Value |
|---|---|
| Maximum Flow Rate | 550ml/min |
| Supply Voltage | 6 → 28V |
| Input Connection | 1/8 BSP |
| Maximum Working Pressure | 8bar |
| Body Material | Anodised Aluminium |
| Coupling Type | Direct drive, Seal-less |
| Input Power | 6 → 28W |
| Maximum Fluid Temperature | 80°C |
| Input Connection Size | 6mm |
| Output Connection Size | 6mm |
| Pump Type | Micro External Gear Pump |
| IP Rating | IP45 |
| Wetted Materials | 316 Stainless Steel, PEEK, PET, Nickel, FKM |
