- RS Stock No.:
- 701-8452
- Mfr. Part No.:
- NSYS3D10640P
- Manufacturer:
- Schneider Electric
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR3,026.44
Units | Per Unit |
1 + | MYR3,026.44 |
- RS Stock No.:
- 701-8452
- Mfr. Part No.:
- NSYS3D10640P
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

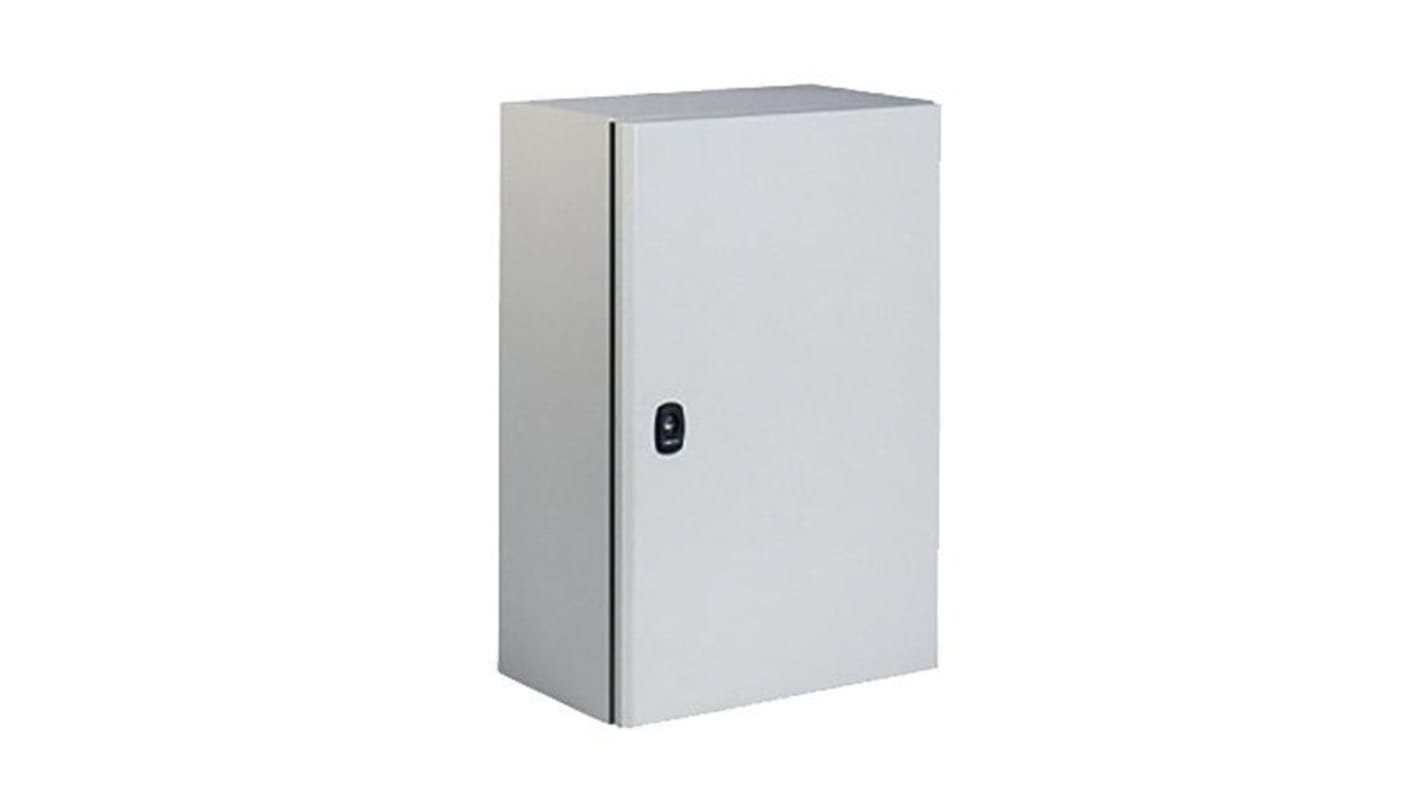

NSYS3D10640P Wall Box
House your components and protect them from damage and contaminants with this hardwearing wall box from Schneider Electric. It has a modular design that makes it easy to assemble and dismantle where necessary. Thanks to a PU (polyurethane) door seal and an IP66 (ingress protection) rating, you can rely on this enclosure to withstand dust and high-pressure water jets. Its steel body is durable and impact-resistant, so you can use it in harsh conditions. It's a practical choice for use in factory automation systems.
• Galvanised steel mounting plate to secure the enclosure firmly to the wall
• Dimensions of 1000 (H) x 600 (W) x 400mm (D) offer ample space to accommodate large components
• UV-resistant so it won't deteriorate under direct sunlight
• 3mm double-bar lock to prevent unauthorised access and tampering
• Dimensions of 1000 (H) x 600 (W) x 400mm (D) offer ample space to accommodate large components
• UV-resistant so it won't deteriorate under direct sunlight
• 3mm double-bar lock to prevent unauthorised access and tampering
What are the external dimensions?
• Telecommunication devices
• Data banks
• Server rooms
• Data banks
• Server rooms
NSNSYS3D10640P has external dimensions of 1000 x 600 x 400 mm.
What type of lock does it have?
The enclosure has a 3 point, 3mm double-bar lock.
What is supplied?
The NSYS3D10640P enclosure is supplied with a single piece body, plain front face door, cable gland plate and a 3 point, 3mm double-bar lock.
Can the wall box be used outside?
The NSYS3D10640P has an Ingress Protection rating of IP66 so can be used inside or outside.
Standards
Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.
Specifications
Attribute | Value |
---|---|
External Height | 1000 mm |
External Width | 600 mm |
External Depth | 400mm |
Body Material | Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | No |
Door Lock Type | Double Bar |
Gland Plate | Yes |
Colour | Grey |
Series | Spacial S3D |
RAL Code | RAL 7035 |
Better World Verification | Green Premium |
External Mounting Type | Bracket |
Better World Product | Yes |
Special Features | 120° Door Opening |
IK Rating | IK10 |
Internal Mounting Type | Panel |
Fixing Kit | Yes |
