- RS Stock No.:
- 701-8437
- Mfr. Part No.:
- NSYS3D7525P
- Manufacturer:
- Schneider Electric
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,388.39
Units | Per Unit |
1 + | MYR1,388.39 |
- RS Stock No.:
- 701-8437
- Mfr. Part No.:
- NSYS3D7525P
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

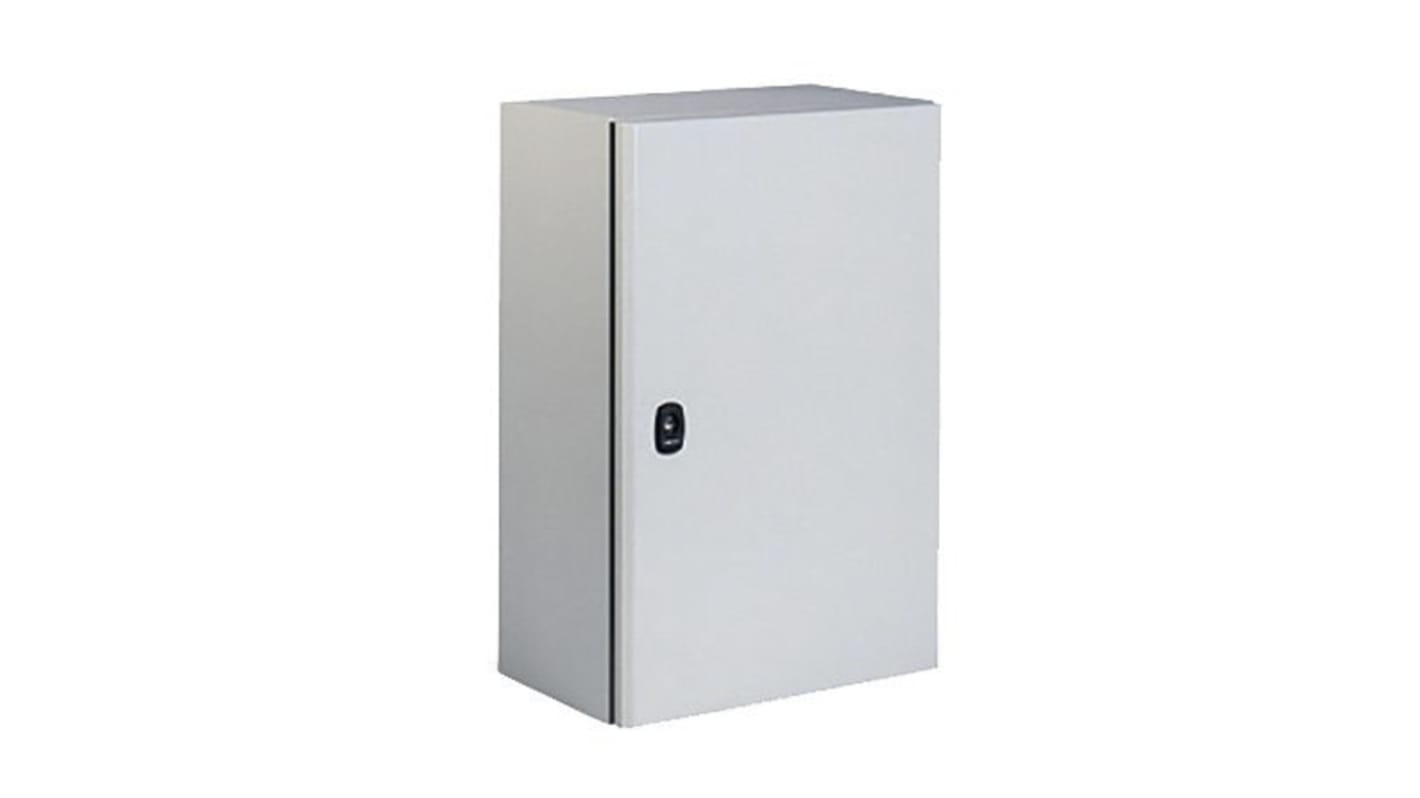

NSYS3D7525P Wall Box
Use this wall box from Schneider Electric to securely house your electronic and mechanical devices. The unit's body is made of steel, so it's durable and can withstand the daily wear and tear expected in industrial settings. It's also flameproof, meaning it protects its contents from damage during a fire. With dimensions of 250mm (depth), 700mm (height) and 500mm (width), this unit has enough space to accommodate numerous components. For extra security, it has a 3mm double-bar lock on its door to prevent unauthorised access.
• 120° door opening angle provides easy access for installation and removal of components
• PU (polyurethane) door seal to prevent friction and air infiltration
• IP66 (ingress protection) rating means it can withstand dust and high-pressure water jets
• Epoxy-polyester powder surface finish prevents rust and oxidation for long-term performance
• PU (polyurethane) door seal to prevent friction and air infiltration
• IP66 (ingress protection) rating means it can withstand dust and high-pressure water jets
• Epoxy-polyester powder surface finish prevents rust and oxidation for long-term performance
What are the external dimensions?
• Process and packaging industries
• Security equipment
• Industrial power and control systems
• Security equipment
• Industrial power and control systems
NSYS3D7525P has external dimensions of 700 x 500 x 250 mm.
What type of lock does it have?
The enclosure has a 3 point, 3mm double-bar lock.
What is supplied?
The NSYS3D7525P enclosure is supplied with a single piece body, plain front face door, cable gland plate and a 3 point, 3mm double-bar lock.
Can the wall box be used outside?
The NSYS3D7525P has an Ingress Protection rating of IP66 so can be used inside or outside.
Standards
Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.
Specifications
Attribute | Value |
---|---|
External Height | 700 mm |
External Width | 500 mm |
External Depth | 250mm |
Body Material | Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | Yes |
Door Lock Type | Double Bar |
Gland Plate | Yes |
Colour | Grey |
Series | Spacial S3D |
RAL Code | RAL 7035 |
Better World Verification | Green Premium |
External Mounting Type | Bracket |
Better World Product | Yes |
Special Features | 120° Door Opening |
IK Rating | IK10 |
Fixing Kit | Yes |
Internal Mounting Type | Panel |
