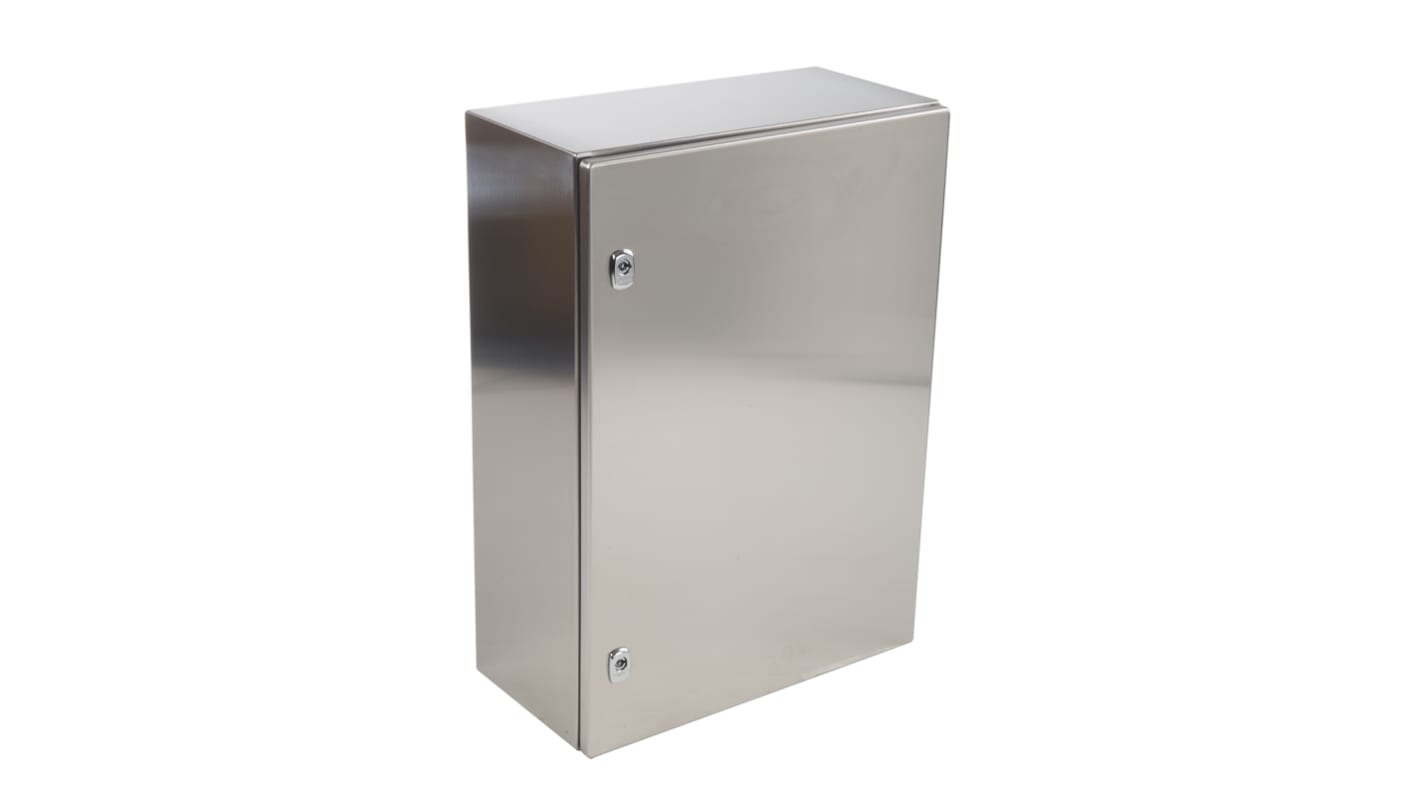

Schneider Electric Spacial S3X Series 304 Stainless Steel Wall Box, IP66, 700 mm x 500 mm x 250mm
- RS Stock No.:
- 186-5000
- Mfr. Part No.:
- NSYS3X7525
- Manufacturer:
- Schneider Electric
9 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR4,740.71
| Units | Per Unit |
| 1 + | MYR4,740.71 |
- RS Stock No.:
- 186-5000
- Mfr. Part No.:
- NSYS3X7525
- Manufacturer:
- Schneider Electric
Legislation and Compliance
Product Details
Schneider Electric Spacial S3X Stainless Steel Wall Box Enclosures.
From Schneider Electric this is the Spacial S3X range of 304 stainless steel wall-mounting enclosures are made from a one-piece metal sheet, folded and welded on the corner’s excellent performance in exposed environments. The Spacial S3X wall box has a front rail gutter protecting the wall box enclosure and contents form water, oil and other liquid penetration.
Spacial S3X Wall Box Enclosure Features.
- Stainless steel AISI 304L or AISI 316L.
- Various sizes with a plain door AISI 304L or AISI 316L.
- 6 Other sizes available with a transparent door AISI 304L.
- Polished Scotch Brite finish.
- Watertight (IP66 single door, IP 55 double door), (IK 10 plain door, IK 08 glazed door).
- 120° opening, reversible door can be mounted on the left or the right.
- Stainless steel concealed hinges.
- Hinges are mounted along height dimension.
- Easy to mount indoors or outdoors.
- Easy to clean and hygienic.
What are the external dimensions?
The compact type 2 wall box NSYS3X7525 has external dimensions of 250 x 500 x 700 mm.
Features & Benefits
• Constructed from 304 stainless steel for durability
• Double bar door lock for enhanced security
• IP66 rated for protection against dust and water ingress
• IK10 rated for high impact resistance
• Green Premium product for sustainability
• Suitable for outdoor wall mounting applications
• Double bar door lock for enhanced security
• IP66 rated for protection against dust and water ingress
• IK10 rated for high impact resistance
• Green Premium product for sustainability
• Suitable for outdoor wall mounting applications
What type of lock does it have?
• Ideal for housing Electrical equipment in industrial settings
• Perfect for use in outdoor environments requiring secure protection
• Suitable for automation systems that require durable enclosures
• Perfect for use in outdoor environments requiring secure protection
• Suitable for automation systems that require durable enclosures
The enclosure has a 2 point lock, 3mm double-bar.
What is supplied?
Single piece body, Plain front face door and 2 locks.
Will it fit a variety of automation equipment?
The wall box is versatile and can accommodate a range of automation, electronics, electrical, and mechanical equipment.
Is it easy to install?
The wall box is designed for easy wall mounting installation, making it convenient for various applications.
What is the main benefit of the double-bar door lock?
The double-bar door lock ensures enhanced security, providing peace of mind for the protection of your equipment.
Approvals
CAN/CSA 22, UL 508 type A.
Standards
IEC 62208
Specifications
Attribute | Value |
|---|---|
| External Height | 700 mm |
| External Width | 500 mm |
| External Depth | 250mm |
| Body Material | 304 Stainless Steel |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Door Lock Type | Double Bar |
| Gland Plate | No |
| Colour | Steel |
| Series | Spacial S3X |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| External Mounting Type | Bracket |
| Standards Met | IEC 62208 |
| Special Features | 120° Door Opening |
| Fixing Kit | No |
| Internal Mounting Type | Panel |
| IK Rating | IK10 |
