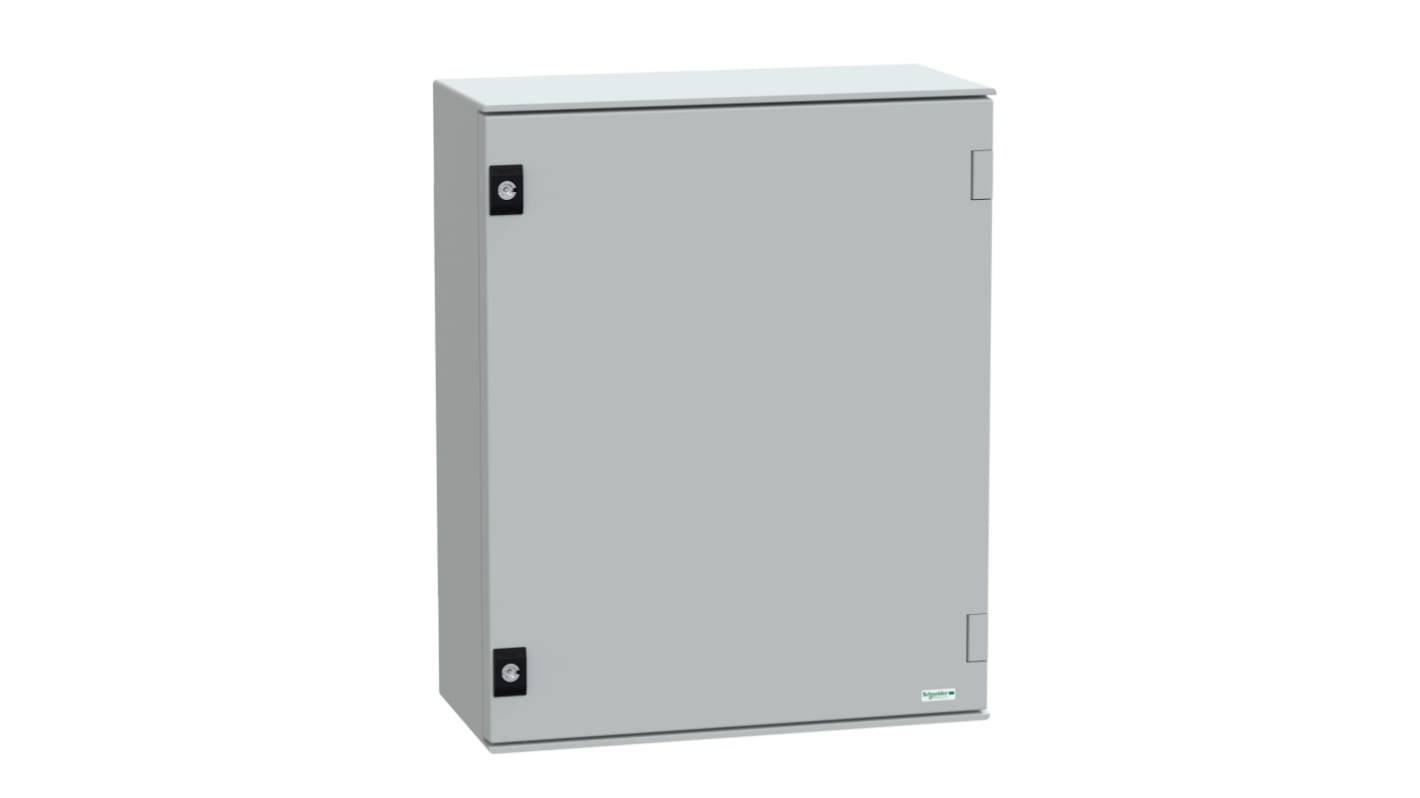

Schneider Electric Thalassa PLM Series PET Wall Box, IP66, 530 mm x 430 mm x 200mm
- RS Stock No.:
- 123-0656
- Mfr. Part No.:
- NSYPLM54G
- Manufacturer:
- Schneider Electric
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
17 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR741.41
| Units | Per Unit |
| 1 + | MYR741.41 |
- RS Stock No.:
- 123-0656
- Mfr. Part No.:
- NSYPLM54G
- Manufacturer:
- Schneider Electric
Legislation and Compliance
Product Details
Schneider Electric Thalassa PLM Polyester (PET) Class II Fiberglass Reinforced Wall Box Enclosures.
Schneider Electric range of Thalassa PLM polyester (fibreglass reinforced) Monobloc wall mounting wall box enclosures are suitable for indoor or outdoor use. The lightweight wall boxes have double insulation (Class II) protection and can be used in a large temperature range (960°C withstanding).
Features and Benefits.
- Large 180° door opening
- IP66 rating meaning the enclosures are dust tight and give protection against powerful jets of water and heavy seas
- Impact resistance: IK10 for plain door version, - IK08 for the glazed door (monobloc).
- Self-extinguishing material and insulator
- 960 ºC test withstanding
- 8 dimensions from 310x215x160mm up to 1056x852x350mm.
- Bosses for fixation points are moulded, inserts included.
- 2 locks with double-bar insert or 1 lock system with 3 action points.
- Version with plain or glazed door.
- Version with metallic or Bakelite mounting plate.
- Suitable for quick installation of DIN rails.
- Lightweight gives an easy installation
- Reversibility for installation right or left door opening
- No electrical contact risk
- Resistance to harsh atmospheres (indoor and outdoor use).
- Halogen free.
- Long life lasting without maintenance.
- Bureau Veritas - IEC62208 enclosure standard.
- UL508A – CAN/CSA-C22.2
Typical Applications.
The Thalassa PLM range of wall-mounting enclosures are a great choice for using in electrical distribution and control and in public areas.
- Electrical distribution and Control
- Infrastructures and Industry
- Indoor, outdoor and harsh environments
- Public areas thanks to total insulation – safety
- Automation, measurement, distribution and protection
- ATEX version for potentially explosive atmosphere
Schneider Electric Wall Box, Double-Bar Door Lock, Flame Resistant - Thalassa PLM Series - NSYPLM54G
Keep your sensitive equipment as safe as houses in this durable wall box from Schneider Electric. The tough PET fibreglass-reinforced body is impact-resistant against shocks of up to 20 joules, so it holds its own in heavy-duty industrial environments. Thanks to the wide 180° door opening angle, accessing and installing components is a breeze. Need to control who has access to the contents? No problem – the 3mm double-bar lock prevents unauthorised entry.
Features & Benefits
• Moulded fixation point bosses make installation quick and hassle-free
• Compact dimensions of just 530 (H) x 430 (W) x 200mm (D) fit comfortably in cramped locations
• Flame-resistant material can handle temperatures up to +960°C for added protection in case of fire
• Compact dimensions of just 530 (H) x 430 (W) x 200mm (D) fit comfortably in cramped locations
• Flame-resistant material can handle temperatures up to +960°C for added protection in case of fire
Applications
• Electrical distribution and control systems
• Industrial automation
• Commercial kitchens
• Industrial automation
• Commercial kitchens
Is this enclosure available in other sizes?
Yes, enclosures in the Thalassa PLM series come in eight sizes. The smallest (221-0741) measures 310 (H) x 215 (W) x 160mm (D), while the largest (123-0651) comes in at 1056 (H) x 852 (W) x 350mm (D).
What IP rating does this wall box have?
An IP66 rating indicates this enclosure can handle high-pressure jets from all directions without batting an eye.
Approvals
UL
Standards
IEC 62208, NEMA classification 13, NEMA classification 4X
Specifications
Attribute | Value |
|---|---|
| External Height | 530 mm |
| External Width | 430 mm |
| External Depth | 200mm |
| Body Material | PET |
| Transparent Door | No |
| IP Rating | IP66 |
| Chassis Plate | No |
| Door Lock Type | Double Bar |
| Gland Plate | No |
| Colour | Grey |
| Series | Thalassa PLM |
| RAL Code | RAL 7035 |
| External Mounting Type | Bracket |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Special Features | Flame Resistant |
| For Protection Of | Instrumentation |
| Standards Met | IEC 60529, IEC 62208, IEC 62262 |
| IK Rating | IK10 |
| Internal Mounting Type | Panel |
| Fixing Kit | No |
