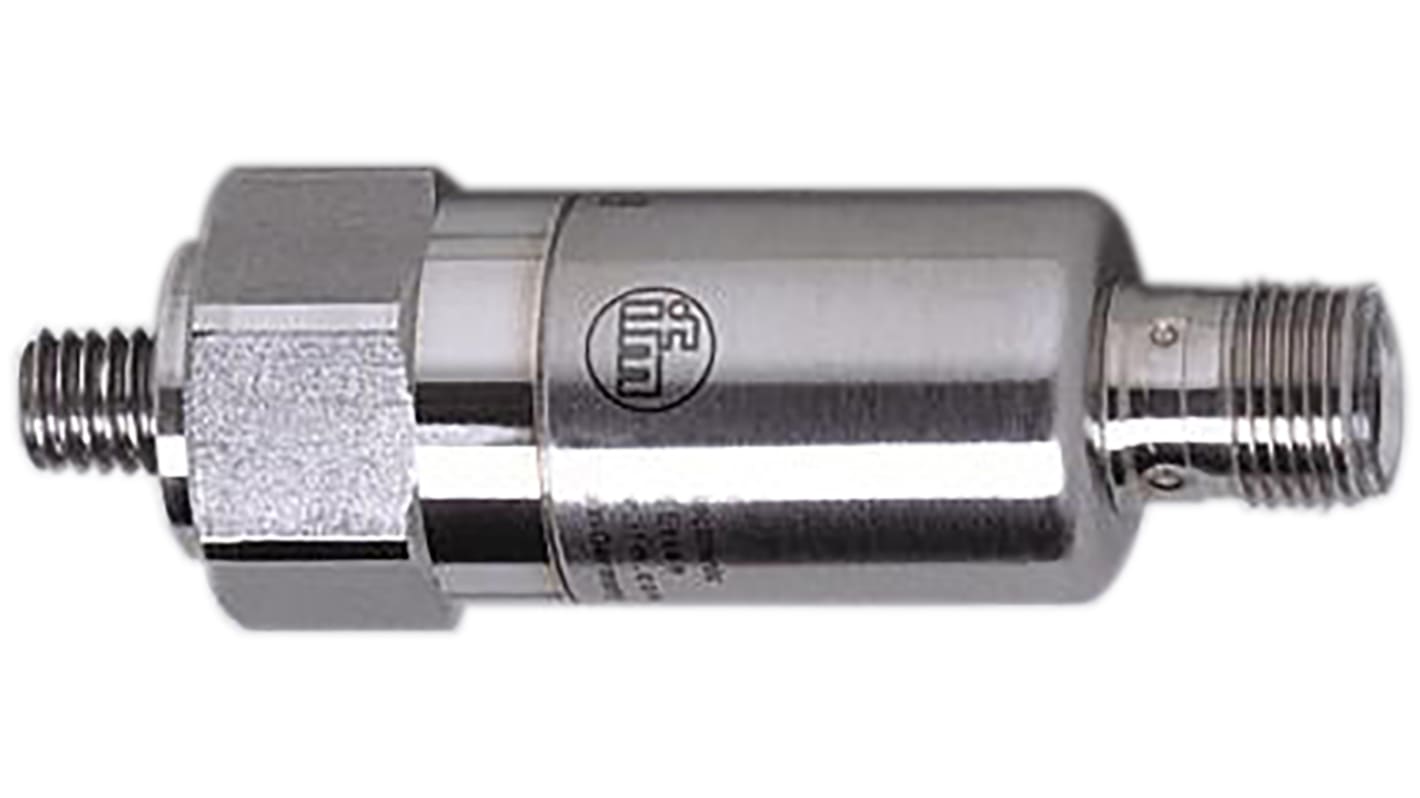

ifm Electronic Vibration Sensor 20 mA -20°C → +60°C, Dimensions 22 (Dia.) x 63.25 mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

VTV Series Vibration switches

Ifm electronic VTV series vibration transmitters monitor machinery and equipment according to ISO 10816. The robust design, high IP Rating and high temperature rating are suitable for use in harsh environments. The VTV sensors measure the true RMS velocity of non-rotating component surfaces, values are then transmitted as an analogue signal (4...20 mA) directly to the PLC.

Continuous vibration monitoring according to ISO 10816
2-wire loop powered
4...20 mA signal output
True RMS monitoring of the overall velocity
Robust metal housing provides high protection rating.
M12 connector

ifm electronic Vibration Senors

Specifications
Attribute Value
Maximum Shock / Vibration 25mm/s
Maximum Current 20 mA
Maximum DC Voltage 32V
Contact Resistance 720Ω
Width 22 (Dia.)mm
Depth 63.25mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Dimensions 22 (Dia.) x 63.25 mm
Hazardous Area Certification ATEX
Temporarily out of stock - back order for despatch 23/01/2020, delivery within 4 working days from despatch date
Price Each
MYR 1,682.73
units
Per unit
1 +
MYR1,682.73
