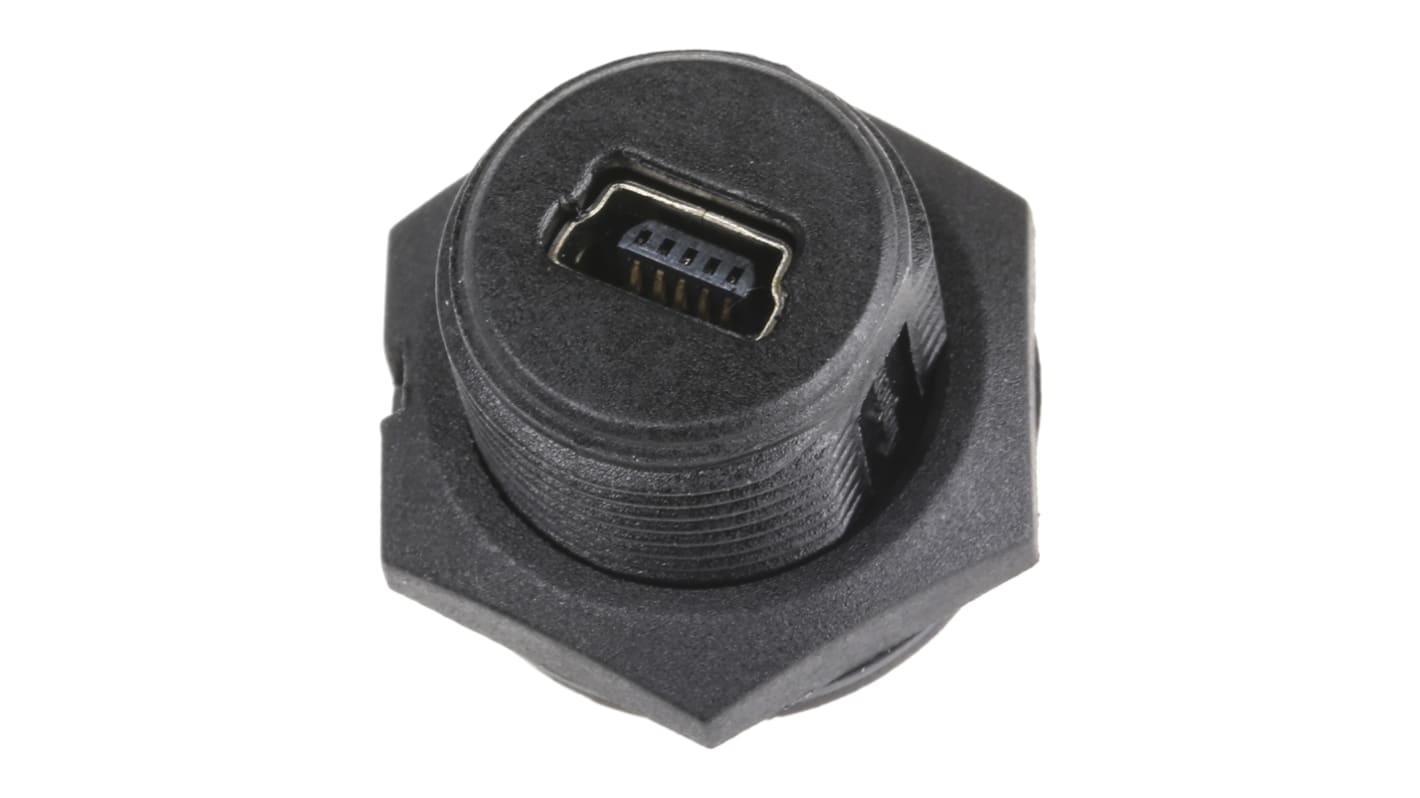

Amphenol Socapex Straight, Through Hole, Socket Type Mini B 2.0 USB Connector
- RS Stock No.:
- 739-8531
- Mfr. Part No.:
- USBMINIBF7PCB
- Manufacturer:
- Amphenol Socapex
12 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR131.78
| Units | Per Unit |
| 1 - 24 | MYR131.78 |
| 25 - 74 | MYR129.01 |
| 75 - 199 | MYR125.14 |
| 200 - 399 | MYR122.07 |
| 400 + | MYR119.41 |
- RS Stock No.:
- 739-8531
- Mfr. Part No.:
- USBMINIBF7PCB
- Manufacturer:
- Amphenol Socapex
Technical data sheets
Legislation and Compliance
Product Details
USB-Mini B Field Jam Nut Receptacles and Cap
These Amphenol IP68 sealed USB-Mini B Receptacles panel mount couplers and Cap have plastic shells with a threaded coupling. The rear mount Jam Nut Receptacles have a straight or 90° PCB mount back termination. A Panel Gasket is also included with the IP68 USB-Mini B Jam Nut Receptacles.
Note
For Overmolded USB-Mini B Plug cordsets see stock number 739-8543 typical.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Amphenol IP68 Overmoulded Ethernet and USB Range
A range of Amphenol USB-A Field, USB-B Field, USB-Mini B Field, HDMI Field and RJ45 Field Couplers and Cordsets.
Specifications
Attribute | Value |
|---|---|
| Gender | Female |
| Mounting Type | Through Hole |
| USB Type | Mini B |
| Termination Method | PCB |
| USB Version | 2.0 |
| Body Orientation | Straight |
| Number of Ports | 1 |
| Current Rating | 5.0A |
| Voltage Rating | 5.0 V |
| Series | USB Access Point |
| Contact Material | Copper Alloy, Gold Plated |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | +85°C |
