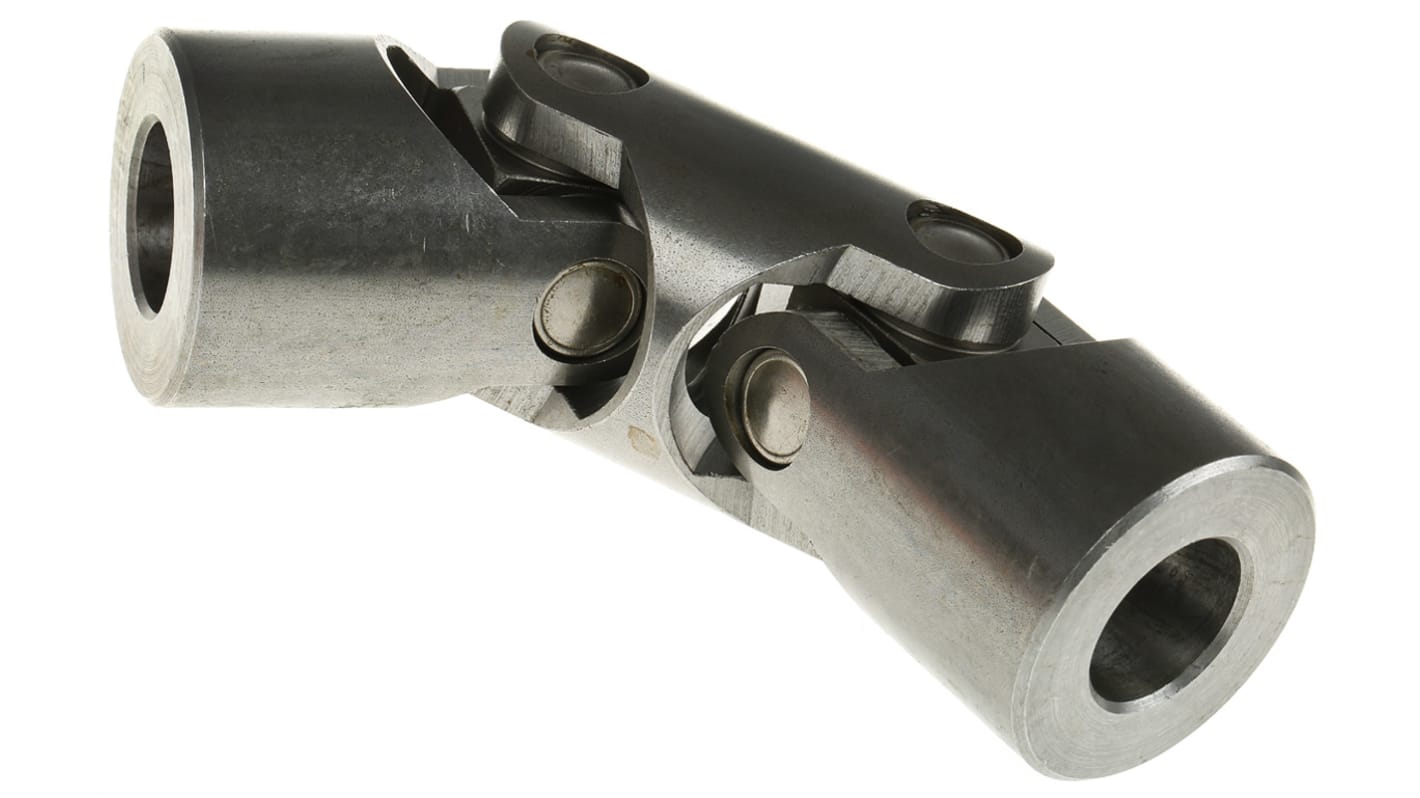

RS PRO Universal Joint, Double, Needle Roller, Bore 25mm, 163mm Length

  • RS Stock No. 790-6823
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Double Universal Joint with Needle Bearing

Carbon steel universal joints for connecting equipment where there is a misalignment greater than 5 degrees up to an angle of 90 degrees. Fitted with needle bearings lubricated for a lifetime and requiring no maintenance, suitable for applications with speeds of up to 4000 rpm. Smooth and silent operation, suitable applications include connection of conveyers, line shafts and drive shafts.

Specifications
Attribute Value
Number of Joints Double
Joint Type Needle Roller
Hub Type Bored Hub
Bore 25mm
Hub Outer Diameter 50mm
Overall Length 163mm
Maximum Working Angle 90°
Peak Torque 200Nm
Material Steel
Maximum Speed 4000rpm
7 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 849.07
units
Per unit
1 - 5
MYR849.07
6 +
MYR806.65
