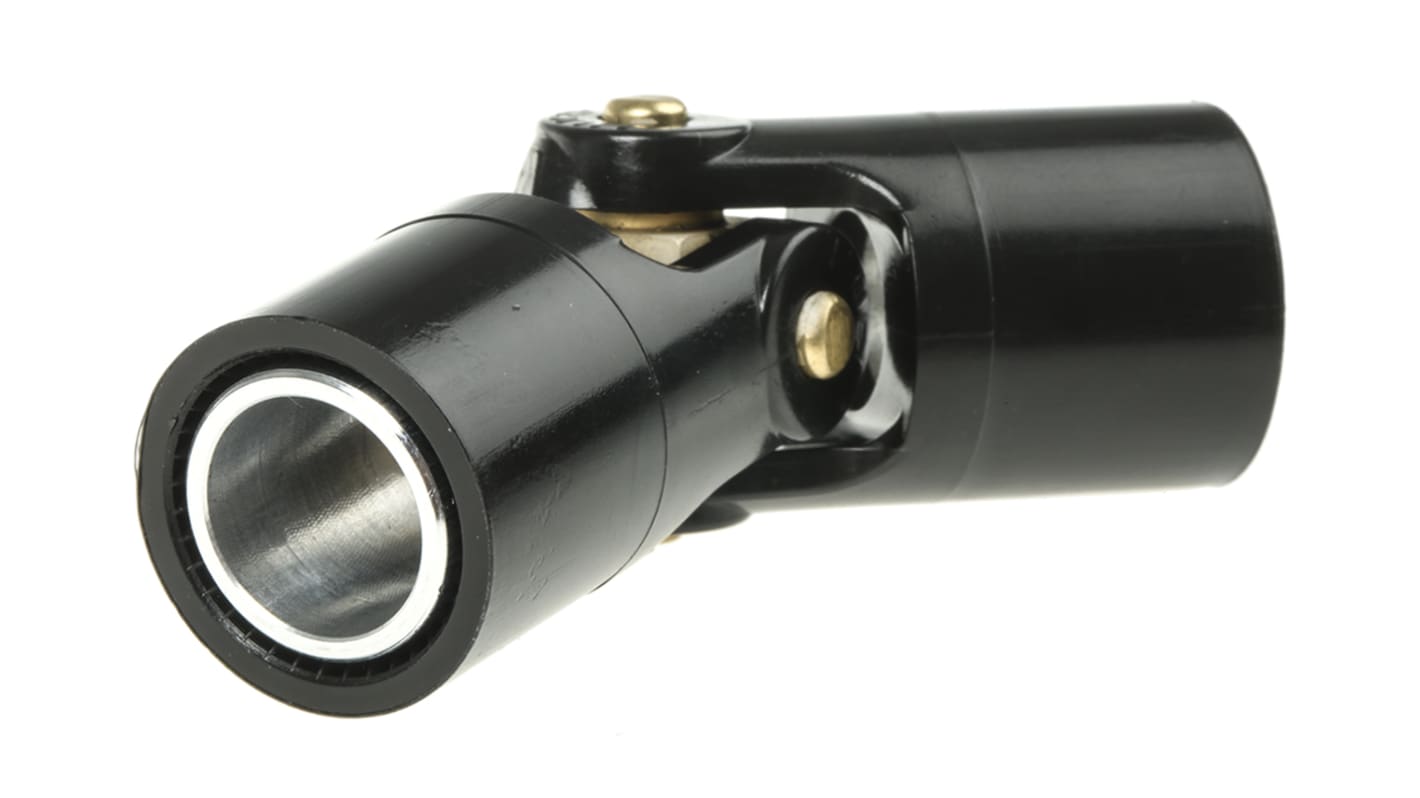

Huco Universal Joint 105.20.3535, Single, Plain, Bore 12 x 12mm, 62mm Length
- RS Stock No.:
- 511-3791
- Mfr. Part No.:
- 105.20.3535
- Manufacturer:
- Huco
9 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR176.19
| Units | Per Unit |
| 1 - 24 | MYR176.19 |
| 25 - 49 | MYR171.26 |
| 50 + | MYR164.22 |
- RS Stock No.:
- 511-3791
- Mfr. Part No.:
- 105.20.3535
- Manufacturer:
- Huco
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Miniature Acetal Fork Universal Joint
A comprehensive range of light duty universal joints manufactured in non-ferrous metals and Acetal, with a -40 to 85°C operating range.
Corrosion resistant construction
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types
Additional bore combinations can be created using suitable reducing bushes, see Bushes, Clamps & Collars - Bore Reducing Bushes.
Specifications
Attribute | Value |
|---|---|
| Bore | 12 x 12mm |
| Number of Joints | Single |
| Hub Outer Diameter | 23mm |
| Overall Length | 62mm |
| Joint Type | Plain |
| Hub Type | Bored Hub |
| Maximum Working Angle | 40° |
| Peak Torque | 2.8Nm |
| Material | Brass |
| Maximum Speed | 1000rpm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
