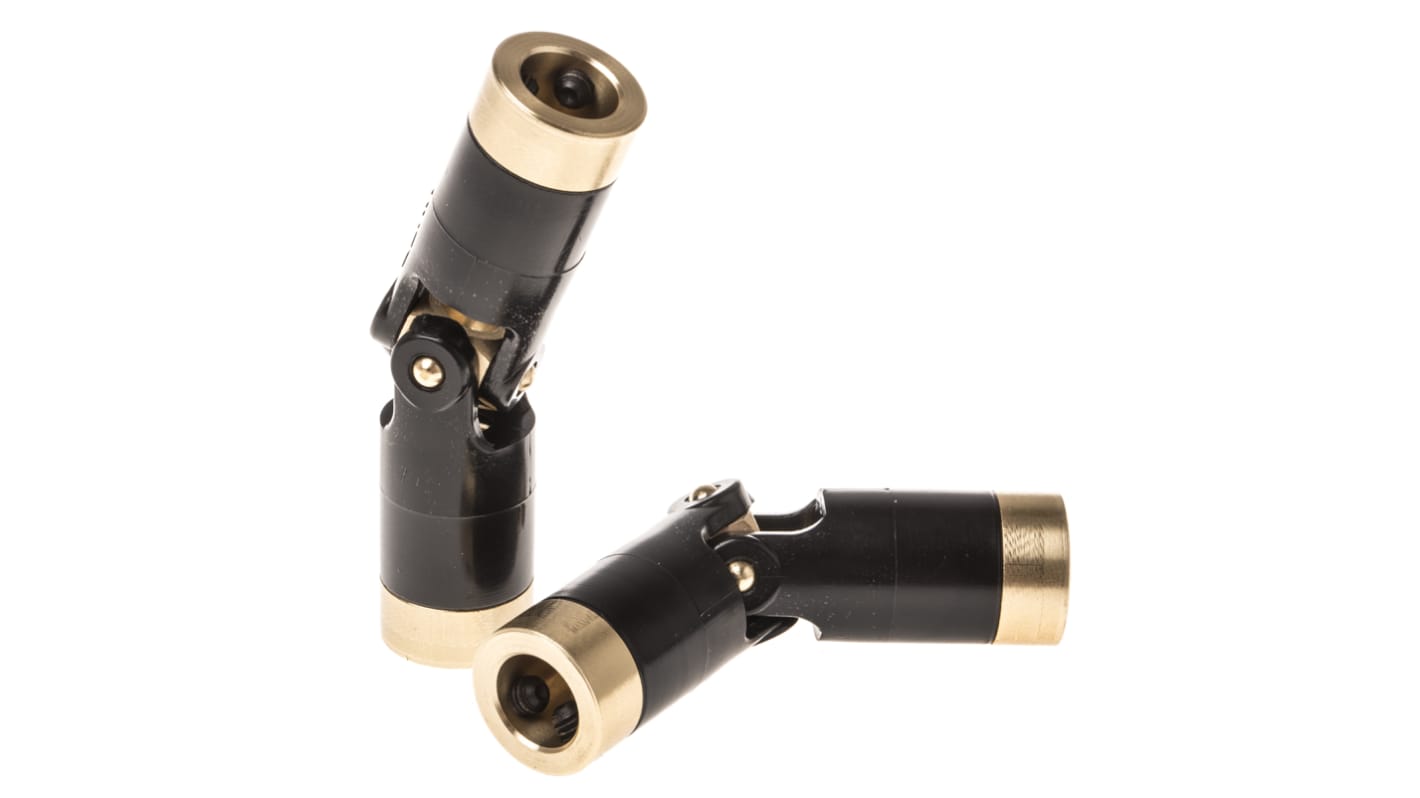

Huco Universal Joint 103.16.3232, Single, Plain, Bore 10 x 10mm, 67.6mm Length
- RS Stock No.:
- 689-035
- Mfr. Part No.:
- 103.16.3232
- Manufacturer:
- Huco
44 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 2)
MYR225.015
| Units | Per Unit | Per Pack* |
| 2 - 10 | MYR225.015 | MYR450.03 |
| 12 - 22 | MYR218.725 | MYR437.45 |
| 24 + | MYR209.705 | MYR419.41 |
| *price indicative | ||
- RS Stock No.:
- 689-035
- Mfr. Part No.:
- 103.16.3232
- Manufacturer:
- Huco
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Miniature Acetal Fork Universal Joint
A comprehensive range of light duty universal joints manufactured in non-ferrous metals and Acetal, with a -40 to 85°C operating range.
Corrosion resistant construction
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types
Additional bore combinations can be created using suitable reducing bushes, see Bushes, Clamps & Collars - Bore Reducing Bushes.
Specifications
Attribute | Value |
|---|---|
| Bore | 10 x 10mm |
| Number of Joints | Single |
| Hub Outer Diameter | 17.5mm |
| Overall Length | 67.6mm |
| Joint Type | Plain |
| Hub Type | Bored Hub |
| Maximum Working Angle | 45° |
| Peak Torque | 1.6Nm |
| Material | Brass |
| Maximum Speed | 1000rpm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
