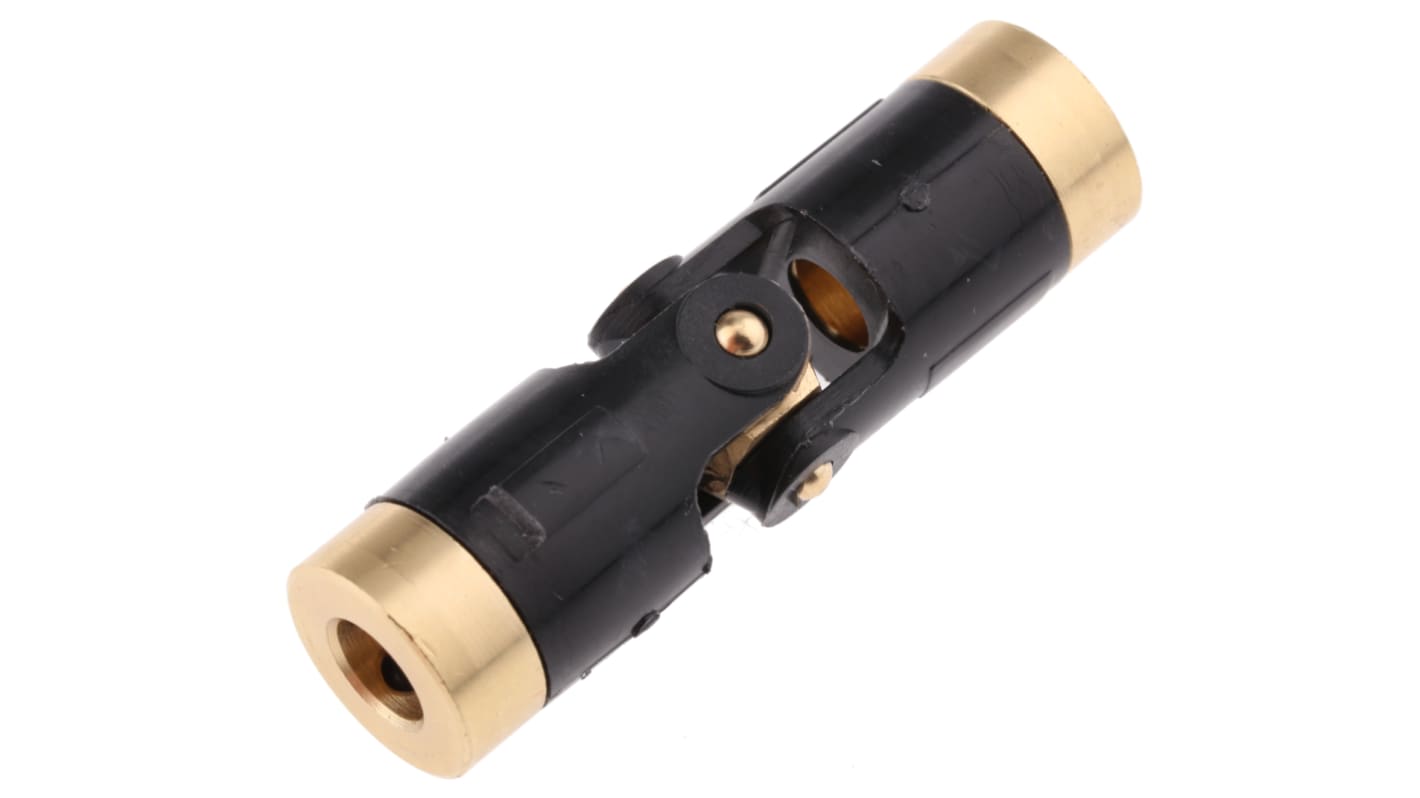

Huco Universal Joint 103.13.2222, Single, Plain, Bore 6 x 6mm, 46.2mm Length

  • RS Stock No. 689-007
  • Mfr. Part No. 103.13.2222
  • Manufacturer Huco
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Miniature Acetal Fork Universal Joint

A comprehensive range of light duty universal joints manufactured in non-ferrous metals and Acetal, with a -40 to 85°C operating range.

Corrosion resistant construction
Freedom from backlash
No lubrication required
Electrical isolation between shafts
Available with metric or imperial bore sizes at both ends, or as combination metric/imperial types

Additional bore combinations can be created using suitable reducing bushes, see Bushes, Clamps & Collars - Bore Reducing Bushes.

//media.rs-online.com/t_line/L688947-01.gif
//media.rs-online.com/t_line/LF688947-10.gif
Specifications
Attribute Value
Number of Joints Single
Joint Type Plain
Hub Type Bored Hub
Bore 6 x 6mm
Hub Outer Diameter 14.3mm
Overall Length 46.2mm
Maximum Working Angle 45°
Peak Torque 0.85Nm
Material Brass
Maximum Speed 1000rpm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
28 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 2)
MYR 71.845
units
Per unit
Per Pack*
2 - 10
MYR71.845
MYR143.69
12 - 22
MYR69.94
MYR139.88
24 +
MYR68.525
MYR137.05
*price indicative
