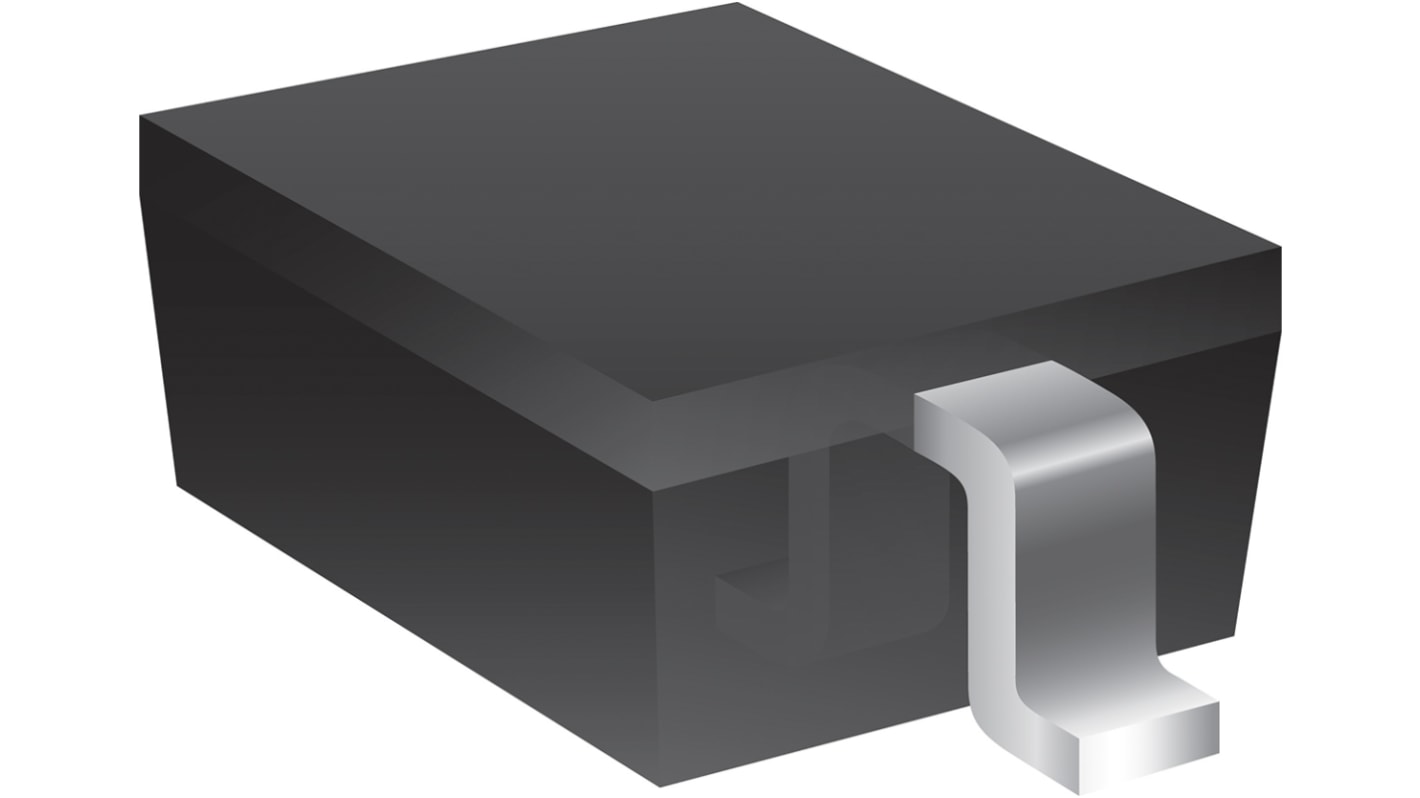

Bourns CDSOD323-T03S, Uni-Directional TVS Diode, 500W, 2-Pin SOD-323

  • RS Stock No. 174-2509
  • Mfr. Part No. CDSOD323-T03S
  • Manufacturer Bourns
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

Bourns TVS Diode

The Bourns SOD-323 package, surface mount unidirectional 2-pin TVS diode has a stand-off voltage of 3.3V and reverse breakdown voltage of 4V. It has a maximum peak pulse current rating of 43A.

Features and Benefits

• Easy to handle with standard pick and place equipment
• ESD protection 30kV
• Lead free
• Operating junction temperature ranges between -55°C and 150°C
• Protects 1 line
• Surge protection >24A

Applications

• Cellular phones
• Computer notebooks
• Digital cameras
• Personal digital assistants

Certifications

• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• JEDEC
• UL 94V-0 listed

Specifications
Attribute Value
Diode Configuration Single
Direction Type Uni-Directional
Maximum Clamping Voltage 7V
Minimum Breakdown Voltage 4V
Mounting Type Surface Mount
Package Type SOD-323
Pin Count 2
Peak Pulse Power Dissipation 500W
Maximum Peak Pulse Current 43A
ESD Protection Yes
Number of Elements per Chip 1
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +150 °C
Working Voltage 3.3V
Surge Current Rating 24A
Height 1.01mm
Length 1.9mm
Test Current 1mA
Capacitance 500pF
Width 1.45mm
Maximum Reverse Leakage Current 125µA
Dimensions 1.9 x 1.45 x 1.01mm
