- RS Stock No.:
- 162-4014
- Mfr. Part No.:
- 824541301
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 20/09/2024, delivery within 4 working days from despatch date
Price Each (On a Reel of 500)
MYR2.979
units | Per Unit | Per Reel* |
500 - 500 | MYR2.979 | MYR1,489.50 |
1000 - 1500 | MYR2.913 | MYR1,456.50 |
2000 + | MYR2.86 | MYR1,430.00 |
*price indicative |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 162-4014
- Mfr. Part No.:
- 824541301
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

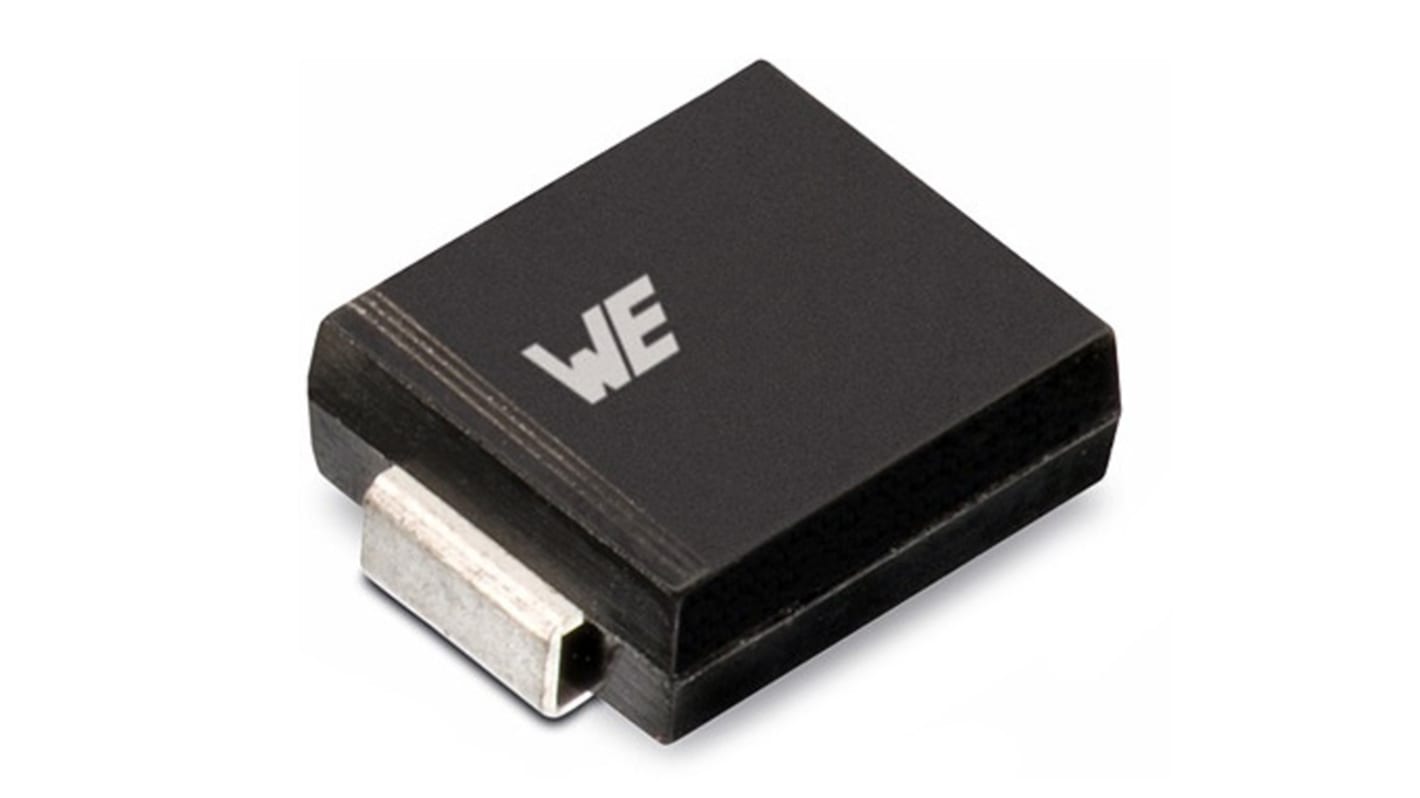

Bidirectional TVS Diodes, 1500W, Wurth Elektronik
The Wurth Elektronik 1500 W Bidirectional Power TVS Diodes are available in a range of operating voltages from 5 V dc up to 100 V dc.
- Low profile package
- Glass passivated junction
- Fast response time
- Glass passivated junction
- Fast response time
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Transient Voltage Suppressors, Wurth Elektronik
Specifications
Attribute | Value |
---|---|
Direction Type | Bi-Directional |
Diode Configuration | Single |
Maximum Clamping Voltage | 48.4V |
Minimum Breakdown Voltage | 35.05V |
Mounting Type | Surface Mount |
Package Type | DO-214AB (SMC) |
Pin Count | 2 |
Peak Pulse Power Dissipation | 1500W |
Maximum Peak Pulse Current | 31A |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -65 °C |
Dimensions | 6.86 x 5.9 x 2.34mm |
Maximum Operating Temperature | +150 °C |
Length | 6.86mm |
Height | 2.34mm |
Maximum Reverse Leakage Current | 1µA |
Test Current | 1mA |
Width | 5.9mm |
