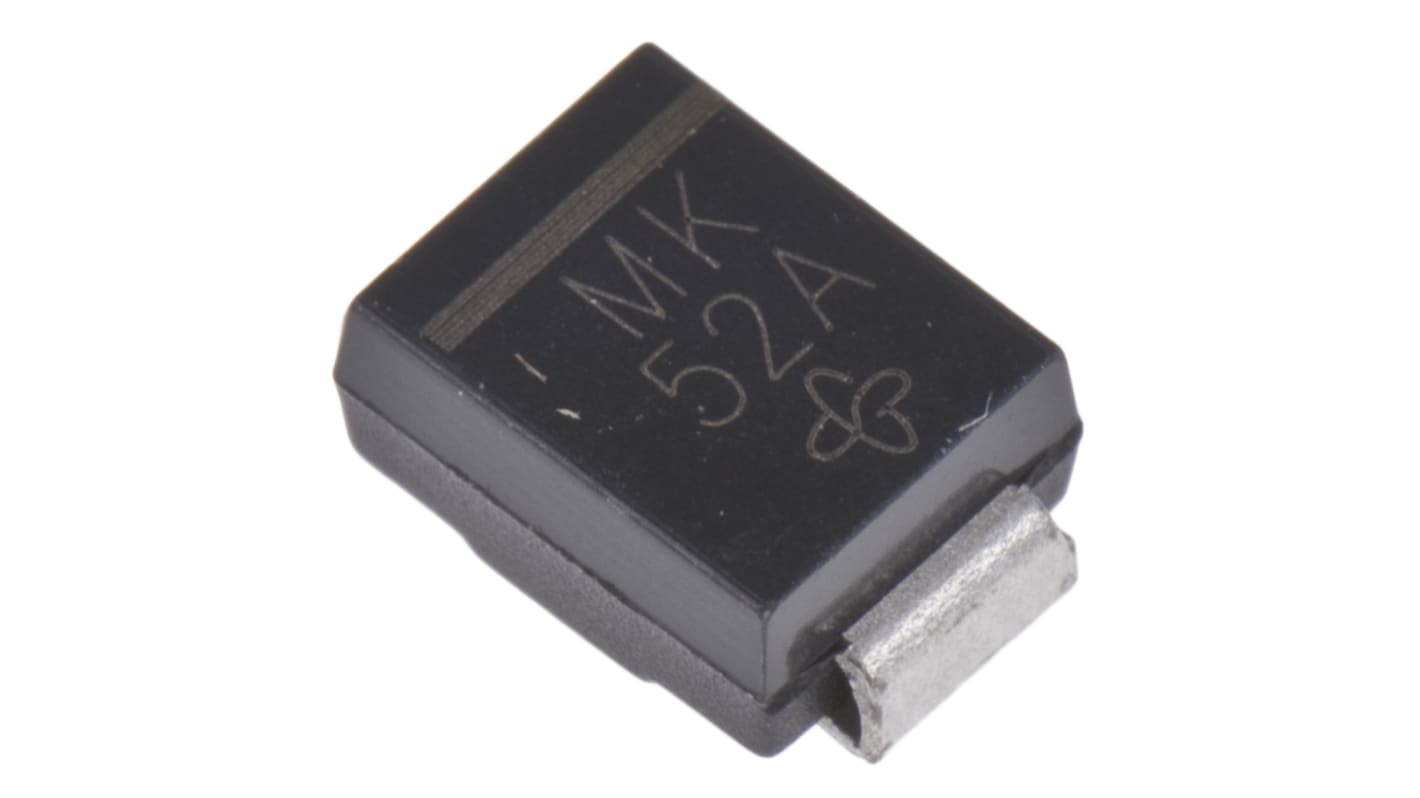

Vishay SMBJ30A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

  • RS Stock No. 229-762
  • Mfr. Part No. SMBJ30A-E3/52
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TRANSZORB® Transient Voltage Suppressors SMT Unidirectional 600W, SMBJ Series, Vishay Semiconductor

Features:

• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Available in uni-directional and bi-directional
• 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications:

Use in sensitive electronics protection against voltage
transients induced by inductive load switching and lighting
on ICs, MOSFET, signal lines of sensor units for consumer,
computer, industrial, and telecommunication.

//media.rs-online.com/t_line/L229576-01.gif
//media.rs-online.com/t_line/LD229576-01.gif
//media.rs-online.com/t_line/LE229576-01.gif

Transient Voltage Suppressors, Vishay Semiconductor

Specifications
Attribute Value
Diode Configuration Single
Direction Type Uni-Directional
Maximum Clamping Voltage 48.4V
Minimum Breakdown Voltage 33.3V
Mounting Type Surface Mount
Package Type DO-214AA (SMB)
Maximum Reverse Stand-off Voltage 30V
Pin Count 2
Peak Pulse Power Dissipation 600W
Maximum Peak Pulse Current 12.4A
Number of Elements per Chip 1
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +150 °C
Length 4.57mm
Maximum Reverse Leakage Current 1µA
Width 3.94mm
Test Current 1mA
Height 2.24mm
Dimensions 4.57 x 3.94 x 2.24mm
