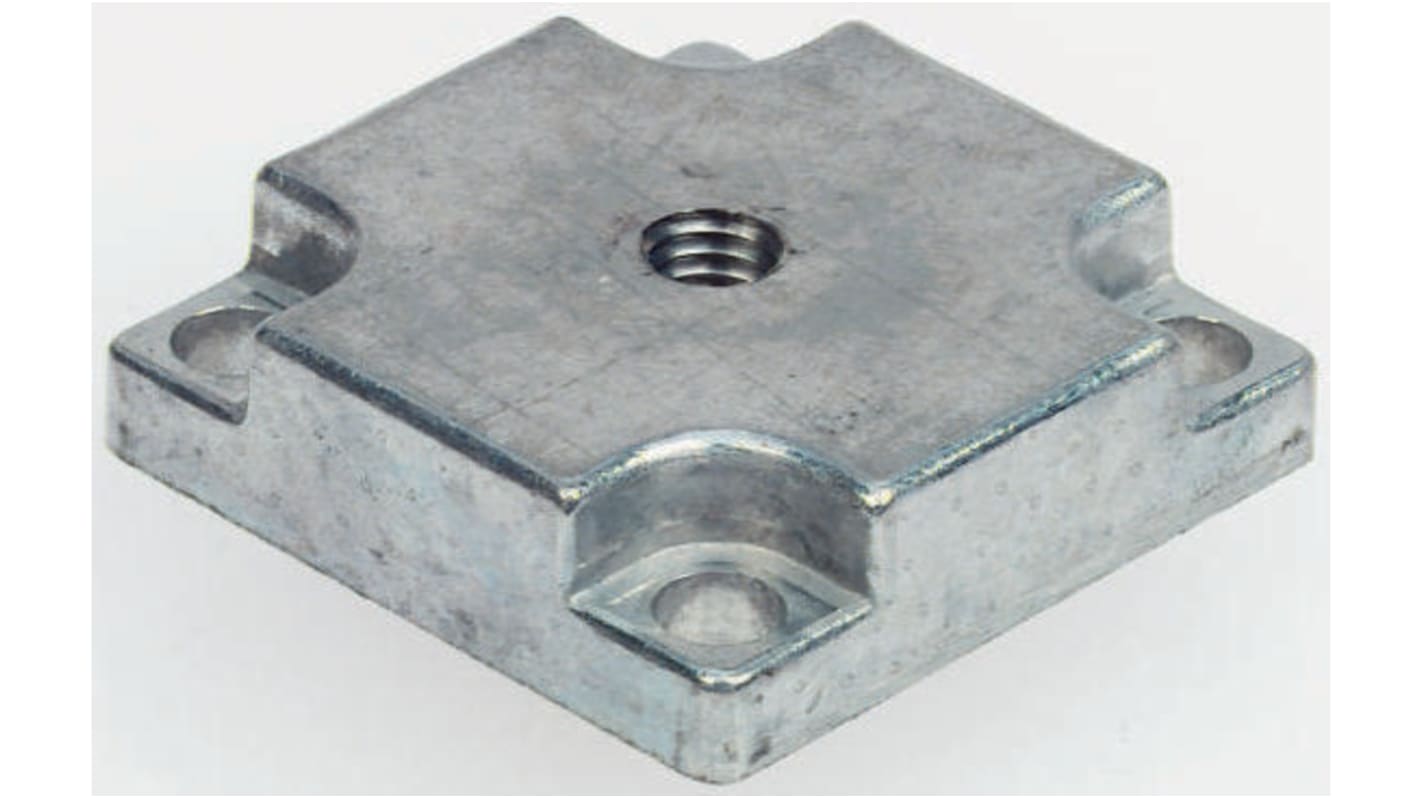

FlexLink Aluminium End Plate 44 mm, 88 mm strut profile , Groove 11mm

  • RS Stock No. 248-9966
  • Mfr. Part No. XCFE 44 M8
  • Manufacturer FlexLink
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): SE
Product Details

End Plate XCBL

End plates are screwed on to beam ends to provide a heavy duty attachment for feet etc. to XCBL (Light) beams. Beam end to be cut square, deburred and roll threaded M6.

Specifications
Attribute Value
Structural Element Type End Plate
Fits Strut Profile 44 mm, 88 mm
Fits Groove Size 11mm
Material Aluminium
Product Family FlexLink
Product System XC
42 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 85.18
units
Per unit
1 - 5
MYR85.18
6 - 11
MYR83.72
12 +
MYR81.89
