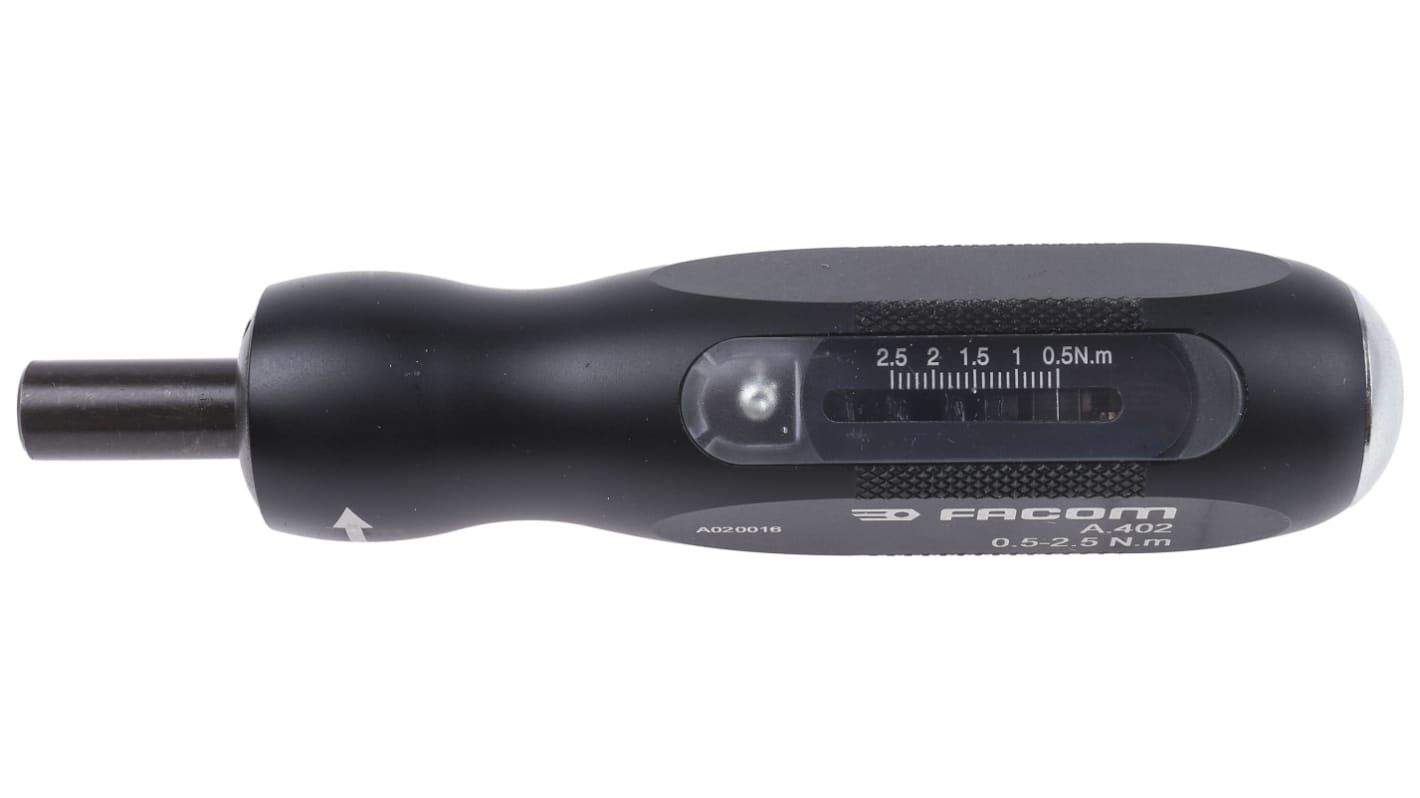

Facom 1/4 in Hex Adjustable Torque Screwdriver, 0.5 → 2.5Nm

  • RS Stock No. 769-1688
  • Mfr. Part No. A.402
  • Manufacturer Facom
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

Driver with vernier adjustment

Torque screwdriver with vernier adjustment

Features and Benefits:

Automatically releases upon reaching the specified torque, impossible to exceed the set value
Protected adjustment system : no risk of accidentally altering settings
Flattened profile prevents tool rolling on the worktop

Applications:

A torque driver is a screwdriver with a clutch that ensures tightening to the specified torque. Torque can be adjusted due to desired requirements. They enable any consumer to deliver the correct torque with confidence regardless of task and operator skill level. Torque screwdrivers are used in:
Manufacturing of high-quality machinery
Maintenance of machinery
Laboratories
Nuclear equipment production and servicing
Medical equipment production and servicing

FAQ:
In what range of torque does this screwdriver work?
769-1688 torque range is 0.5 to 2.5Nm
769-1672 torque range is 2 to 10Nm

What’s the compatible bit size?
Bit holding device – hexagon 1/4 inch

Standards

ISO 6789

Supplied with

Calibration certificate, adjusting key and individual identification number

Specifications
Attribute Value
Torque Range 0.5 → 2.5Nm
Type Adjustable
Drive Shape Hex
Drive Size 1/4 in
Overall Length 147 mm
Accuracy ±6 %
4 Within 2 working day(s)
5 Within 4 working day(s) (Global stock)
Price Each
MYR 1,337.95
units
Per unit
1 +
MYR1,337.95
