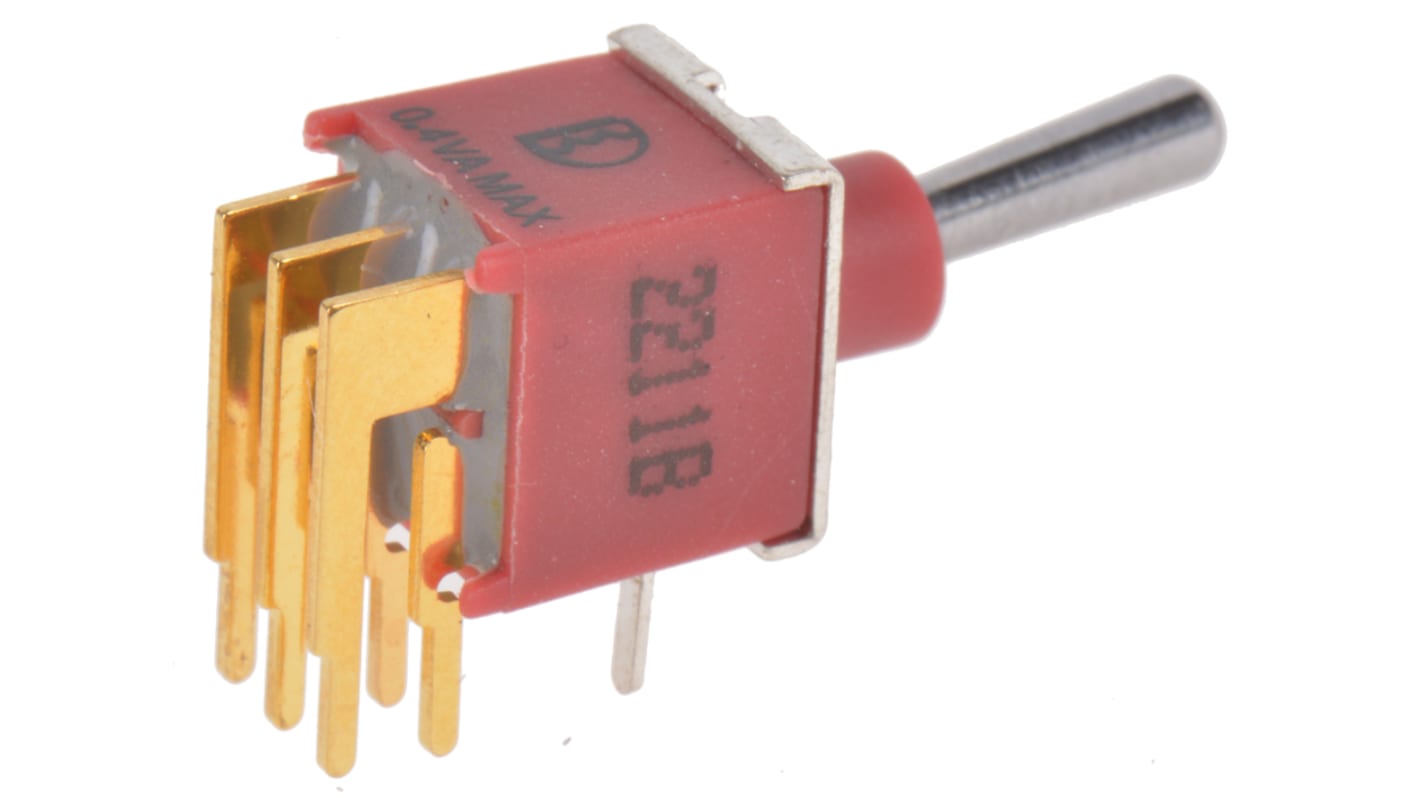

RS PRO Toggle Switch, PCB Mount, On-(On), DPDT, Through Hole Terminal
- RS Stock No.:
- 734-7157
- Manufacturer:
- RS PRO
218 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR10.87
| Units | Per Unit |
| 1 + | MYR10.87 |
- RS Stock No.:
- 734-7157
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
IP67 Sealed Sub-Miniature Toggle Switches - RS Series
RS series of IP67 sealed sub-miniature toggle switches with a low contact resistance and are available with either Gold (Q) or Silver (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-(On) |
| Contact Current Rating | 400 mA @ 20 V |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| IP Rating | IP67 |
| Actuator Length | 10.16mm |
| Actuator Material | Chromium Plated Brass |
| Contact Resistance | 20mΩ |
| Contact Material | Gold Plated Copper Alloy |
| Operating Temperature Range | -30 → +85°C |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Standards Met | RoHS & Lead Free |
| Mechanical Life | 30000Cycles |
