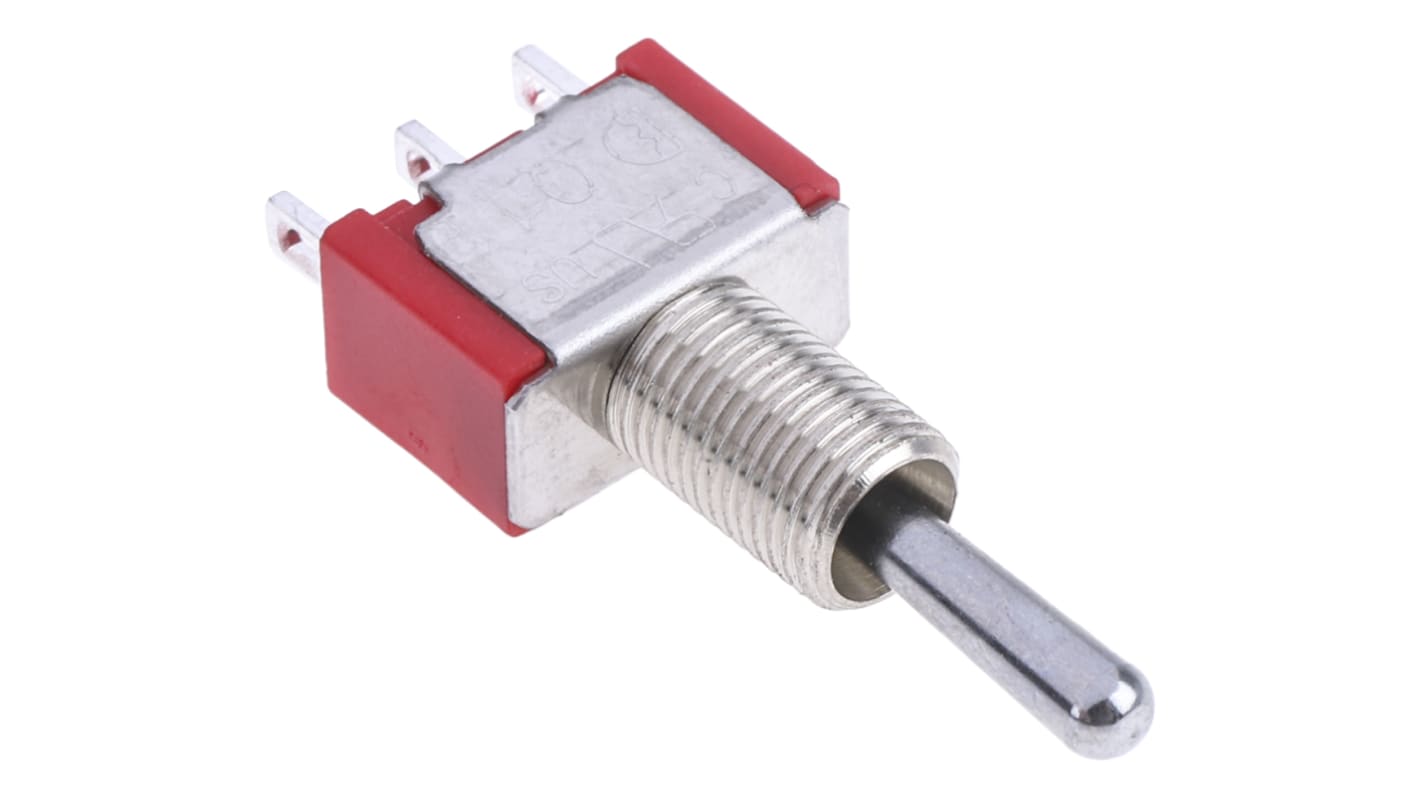

RS PRO Single Pole Double Throw (SPDT) Toggle Switch, (On)-Off-(On), Panel Mount

  • RS Stock No. 734-7148
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Toggle Switches, Miniature - RS Series

RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (R) or Silver (Q) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Switch Operation (On)-Off-(On)
Contact Current Rating 5 A @ 250 V ac
Mounting Type Panel Mount
Terminal Type Solder
Panel Cut Out Diameter 6.35mm
Actuator Length 10.41mm
Actuator Material Chromium Plated Brass
Contact Resistance 10mΩ
Mechanical Life 40000Cycles
Operating Temperature Range -30 +85°C
Minimum Operating Temperature -30°C
Contact Material Silver Plated Brass
Panel Cut Out Size 6.35mm
Standards Met RoHS & Lead Free
Maximum Operating Temperature +85°C
303 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 12.61
units
Per unit
1 +
MYR12.61
