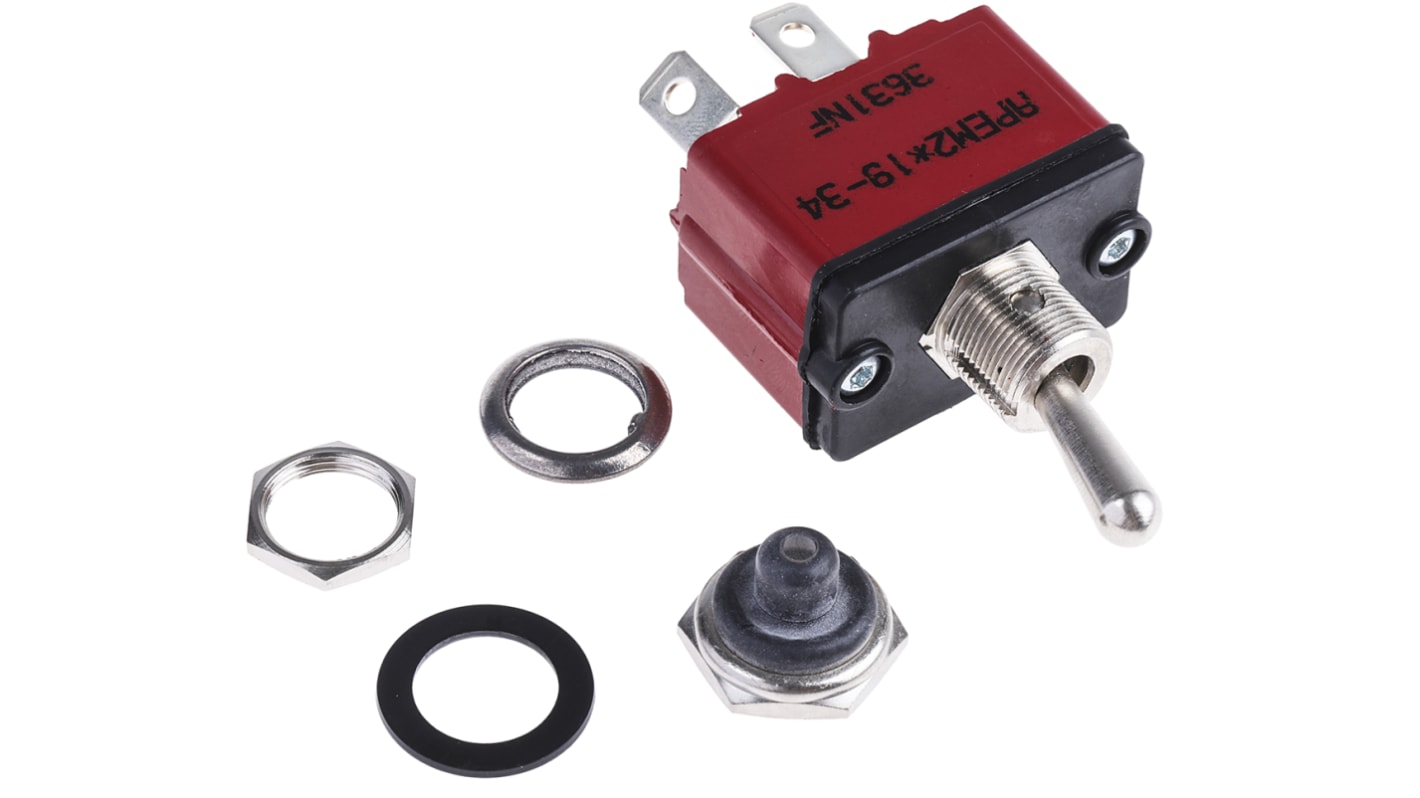

APEM Single Pole Single Throw (SPST) Toggle Switch, Latching, IP67, Panel Mount

  • RS Stock No. 417-5451
  • Mfr. Part No. 3631NF/2
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

3600NF Series - Sealed IP65

Sealed toggle switches with solid silver contacts especially suitable for external applications
An internal o-ring together with the sealing boot provides a double level of protection
0.25in. solder/quick connect terminals
Brass actuator and Phenolic case

Approvals

UL

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Contact Current Rating 12 A
Mounting Type Panel Mount
Terminal Type Solder, Tab
IP Rating IP67
Actuator Length 17.5mm
Actuator Material Brass
Voltage Rating 28V dc
Contact Resistance 10mΩ
Contact Material Silver
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
68 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 50.94
units
Per unit
1 - 24
MYR50.94
25 - 49
MYR46.48
50 - 99
MYR42.74
100 - 249
MYR40.03
250 +
MYR38.58
