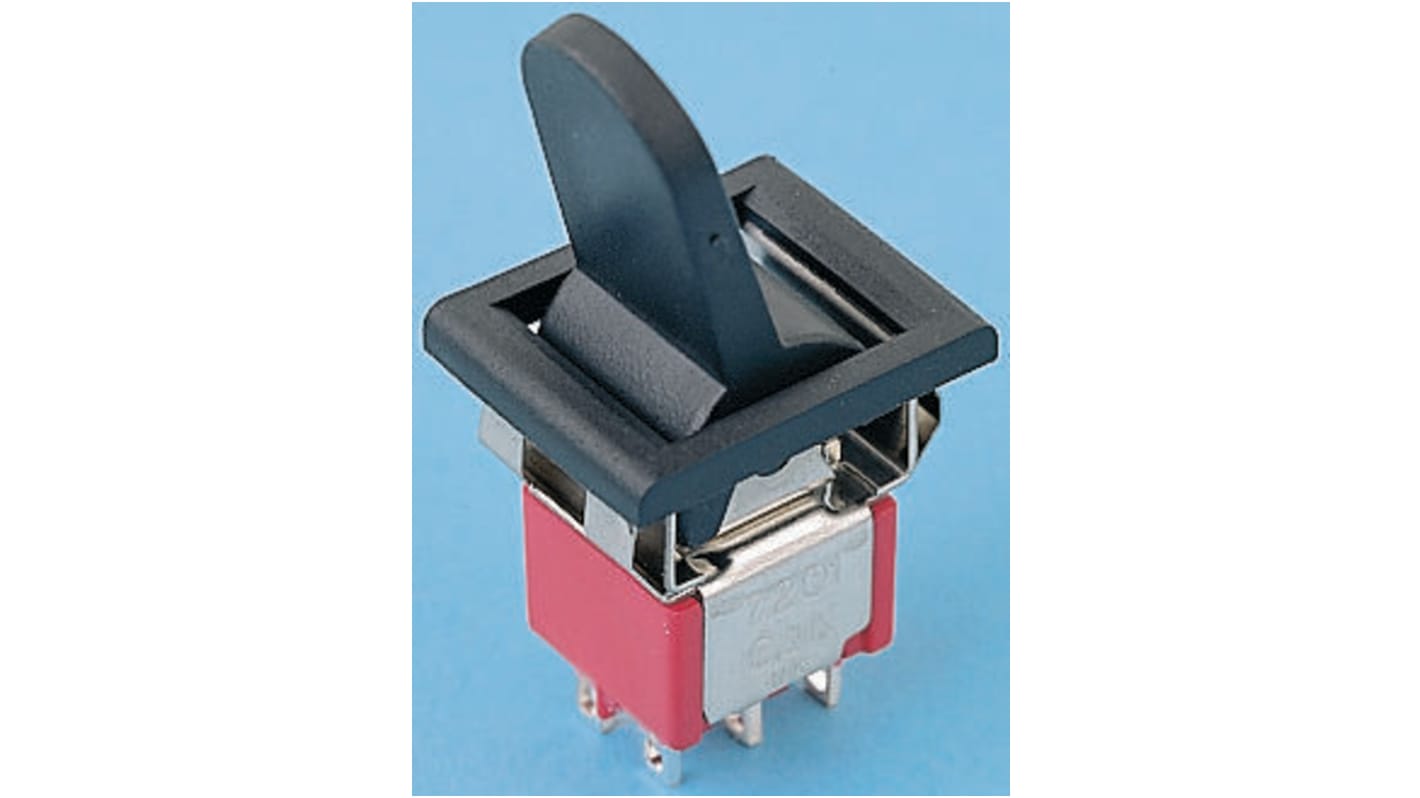

C & K Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount

  • RS Stock No. 283-8992
  • Mfr. Part No. 7201J91ZQE22
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Flat Toggle Switches

The 7000 Series flat toggle switches have been designed for a wide range of applications including telecommunications, instrumentation and medical equipment. The terminals have been epoxy sealed to prevent contamination during soldering.

Panel mount double pole flat toggle switches
Centre off and non centre off versions available
Solder tags
Silver contacts
Contact Rating-A 2A
Contact Rating-V 250Vac 5A @ 125 Vac or 28 Vdc

Approvals

UL; CSA

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation Latching
Contact Current Rating 5 A @ 28 V dc
Mounting Type Panel Mount
Terminal Type Solder
Actuator Material Nylon
Contact Resistance 10mΩ
Operating Temperature Range -30 +85°C
Maximum Operating Temperature +85°C
Minimum Operating Temperature -30°C
Contact Material Silver Plated Coin Silver
364 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 66.67
units
Per unit
1 - 4
MYR66.67
5 - 9
MYR62.15
10 - 24
MYR58.56
25 - 49
MYR56.60
50 +
MYR54.82
