NKK Switches Single Pole Single Throw (SPST) Toggle Switch, Latching, IP60, IP67, Panel Mount

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

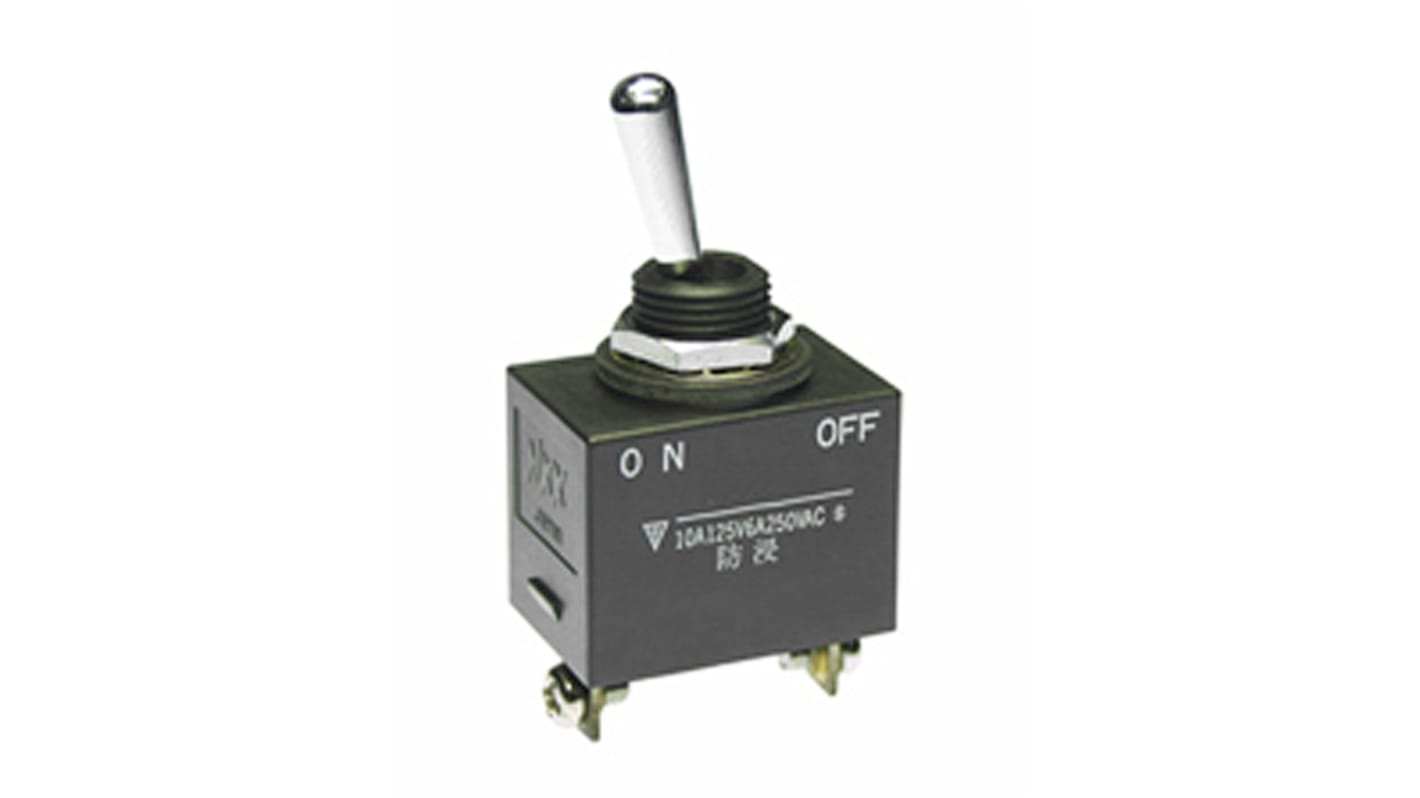

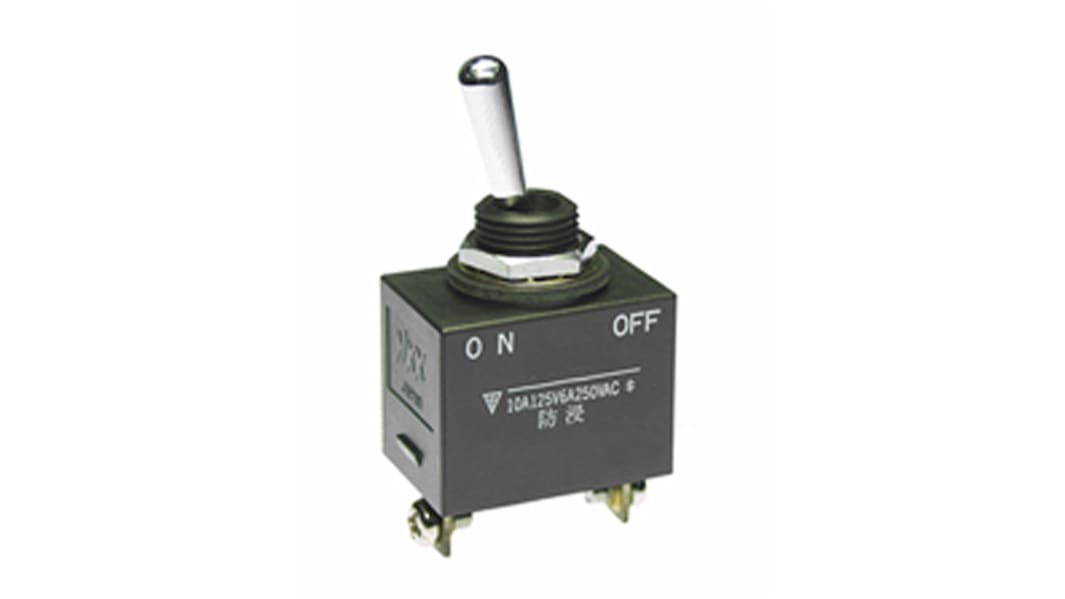

NKK Switches - WT Series Environmentally Sealed Toggle Switches

The NKK WT Series of environmentally sealed toggle switches have distinctive characteristics making them an ideal choice. The switches have an epoxy sealed base covered by an outer case which doubles the protection from dust and water. The switches are not operable under water or oil. Made with interlocked movable contact mechanisms they provide highly reliable switching by minimising contact bounce over centre contact. The heat resistant resin used for the housing meets UL94V-0 flammability standard and provides high arc and tracking resistance.

Features and Benefits

• Specially designed contact mechanism
• Single unit construction of bushing and case
• Heat resistant resin for outer housing
• Meets UL94V-0 flammability standard
• Brass with with chrome plating

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Contact Current Rating 10 A
Mounting Type Panel Mount
Terminal Type Screw
IP Rating IP60, IP67
Panel Cut Out Diameter 12.5mm
Actuator Length 17.5mm
Actuator Material Chrome Plated Brass
Voltage Rating 30 V dc, 250 V ac
Contact Resistance 10mΩ
Contact Material Brass
Operating Temperature Range -30 → +70°C
Minimum Operating Temperature -30°C
Mechanical Life 50000Operations
Standards Met CSA TEW 105 Certified, UL 94V-0, UL AWM 1015 Recognised
Maximum Operating Temperature +70°C
Panel Cut Out Size 12.5 (Dia.)mm
18 Within 4 working day(s) (Global stock)
2 Within 6 working day(s) (Global stock)
Price Each
MYR 40.01
units
Per unit
1 - 4
MYR40.01
5 - 19
MYR38.49
20 - 49
MYR37.53
50 - 99
MYR35.86
100 +
MYR34.74
